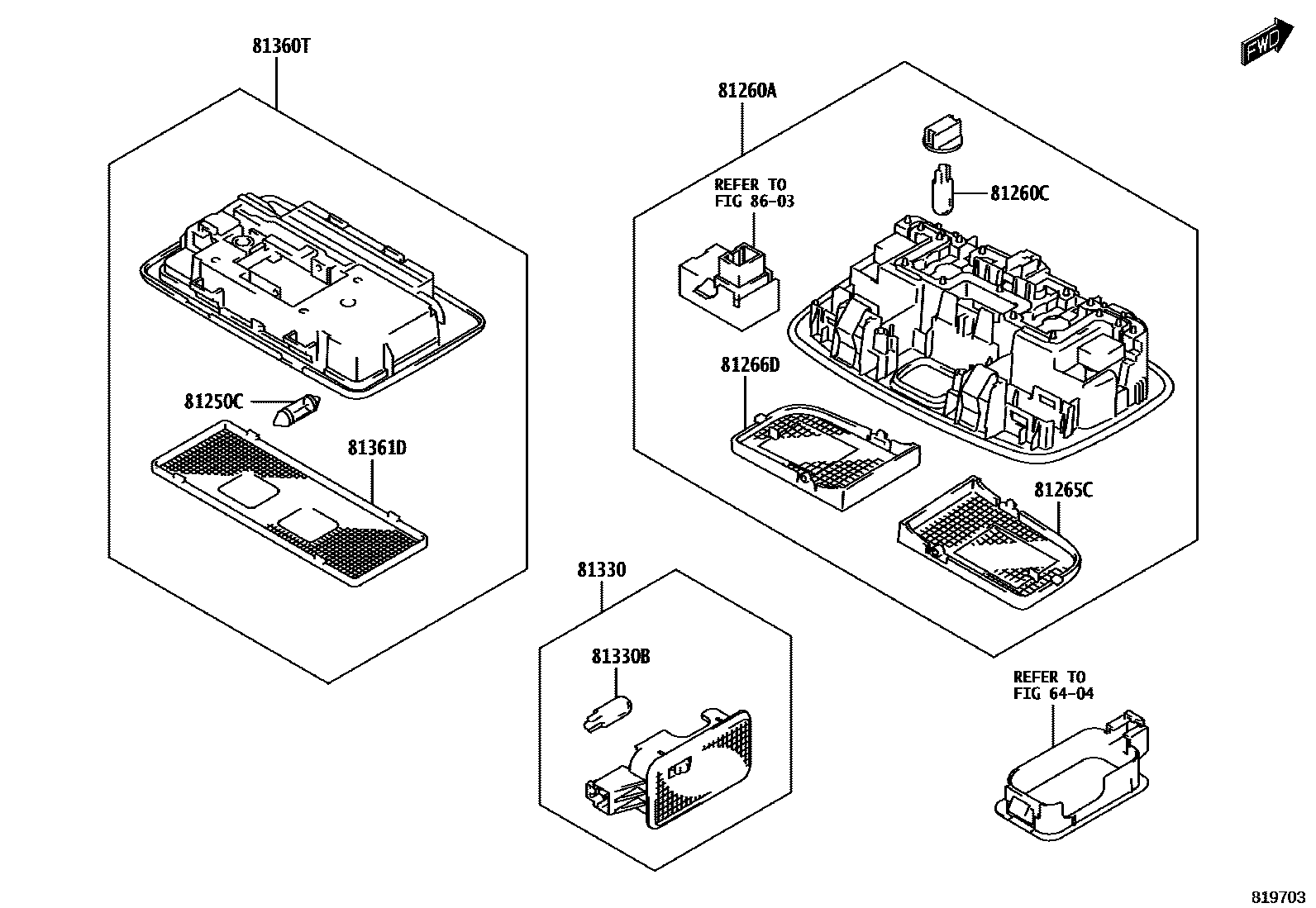

INTERIOR LAMP

6404

81250CBULB, SPOT LAMP

main90118-WC270iK14B..4FC..P..SUD202007

12V 10W,POS.49

81260ALAMP ASSY, MAP

main81260-WC001iK14B..4FC..X..SA202007

POS.34

main81260-WC002iK14B..4FC..P..SUD202007

POS.53

main81260-WC003iK14B..5F..L..SA202007

POS.30

main81260-WC005iK14B..4FC..X..AFR202007

POS.44

81260CBULB(FOR MAP LAMP)

main90118-WC272×2iK14B..4FC..P..SUD202007

12V 5W,POS.40

81265CLENS, MAP LAMP, NO.1

main81265-WC001iK14B..4FC..P..SUD202007

POS.51

81266DLENS, MAP LAMP, NO.2

main81266-WC001iK14B..4FC..P..SUD202007

POS.51

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81230-WC003iK14B..4FC..P..SUD202007

POS.51

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90118-WC272iK14B..4FC..P..SUD202007

12V 5W,POS.40

81360TLAMP ASSY, SPOT

main81230-WC002iK14B..4FC..P..SUD202007

POS.51

81361DLENS, SPOT LAMP

main81241-WC001iK14B..4FC..P..SUD202007

POS.51

8603

11 parts on this diagram · 1 diagram in section
