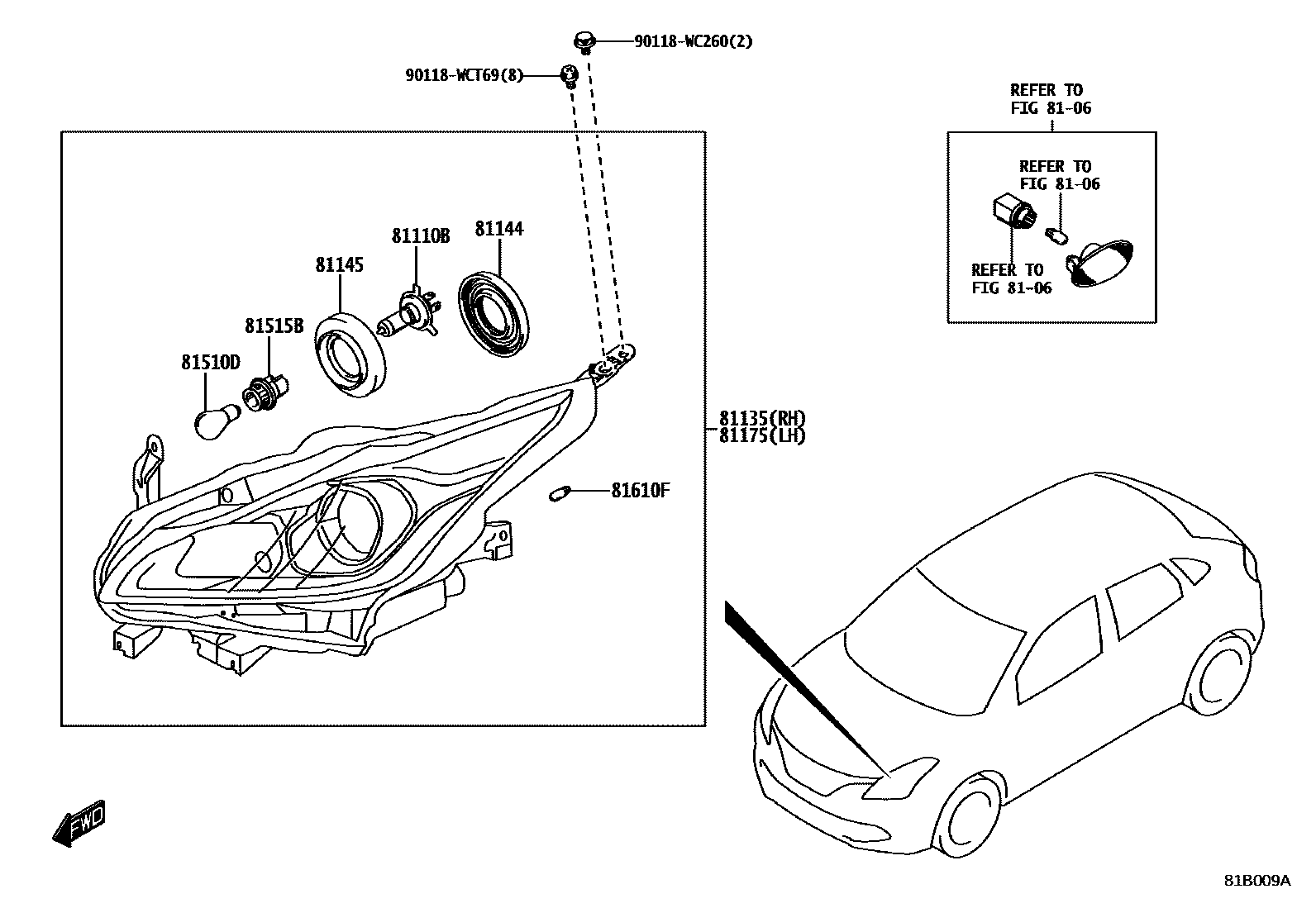

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

81110BBULB(FOR HEADLAMP, NO.1)

81135UNIT ASSY, HEADLAMP, RH

main81110-WC018

main81110-WC019

main81110-WC024

81144COVER, HEADLAMP, NO.1

main81615-WC002

81145COVER, HEADLAMP, NO.2

main81139-WC002

81175UNIT ASSY, HEADLAMP, LH

main81150-WC018

main81150-WC019

main81150-WC024

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

81515BSOCKET, FRONT TURN SIGNAL LAMP

81610FBULB(FOR CLEARANCE LAMP)

90118WC260

main90118-WC260

90118WCT69

main90118-WCT69

11 parts on this diagram · 2 diagrams in section
