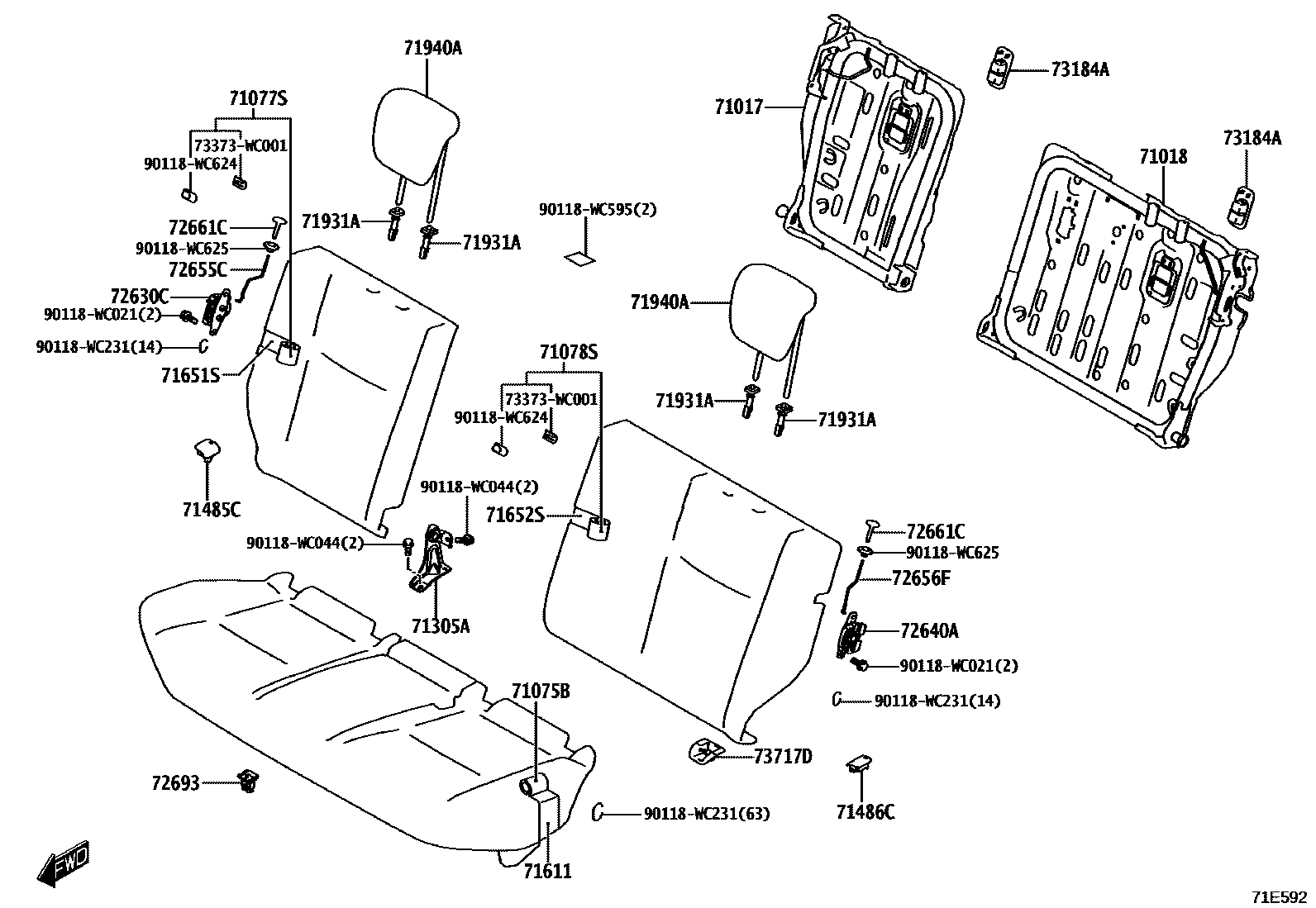

REAR SEAT & SEAT TRACK

0001 1W(SIDE AIR BAG) 0002 1W/O(SIDE AIR BAG) 0003 1W(CENTER HEADREST)

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-WC006

main71017-WC007

main71017-WC008

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-WC005

main71018-WC006

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

71485CCOVER, REAR SEAT HINGE, RH

71486CCOVER, REAR SEAT HINGE, LH

71611PAD, REAR SEAT CUSHION

main71503-WC005

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

71931ASUPPORT, REAR SEAT HEADREST

71940AHEADREST ASSY, REAR SEAT

72630CLOCK ASSY, REAR SEATBACK, RH

72640ALOCK ASSY, REAR SEATBACK, LH

72655CLINK, REAR SEATBACK LOCK CONTROL, NO.1 RH

72656FLINK, REAR SEATBACK LOCK CONTROL, NO.1 LH

72661CBUTTON, REAR SEATBACK LOCK RELEASE

72693HOOK, REAR SEAT CUSHION LOCK

main72693-WC001

73184ACOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

73717DCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

73373WC001COVER, REAR SEAT SHOULDER BELT

main73373-WC001

90118WC021

main90118-WC021

90118WC044

main90118-WC044

90118WC231

main90118-WC231

90118WC595

main90118-WC595

90118WC624

main90118-WC624

90118WC625

main90118-WC625

28 parts on this diagram · 3 diagrams in section
