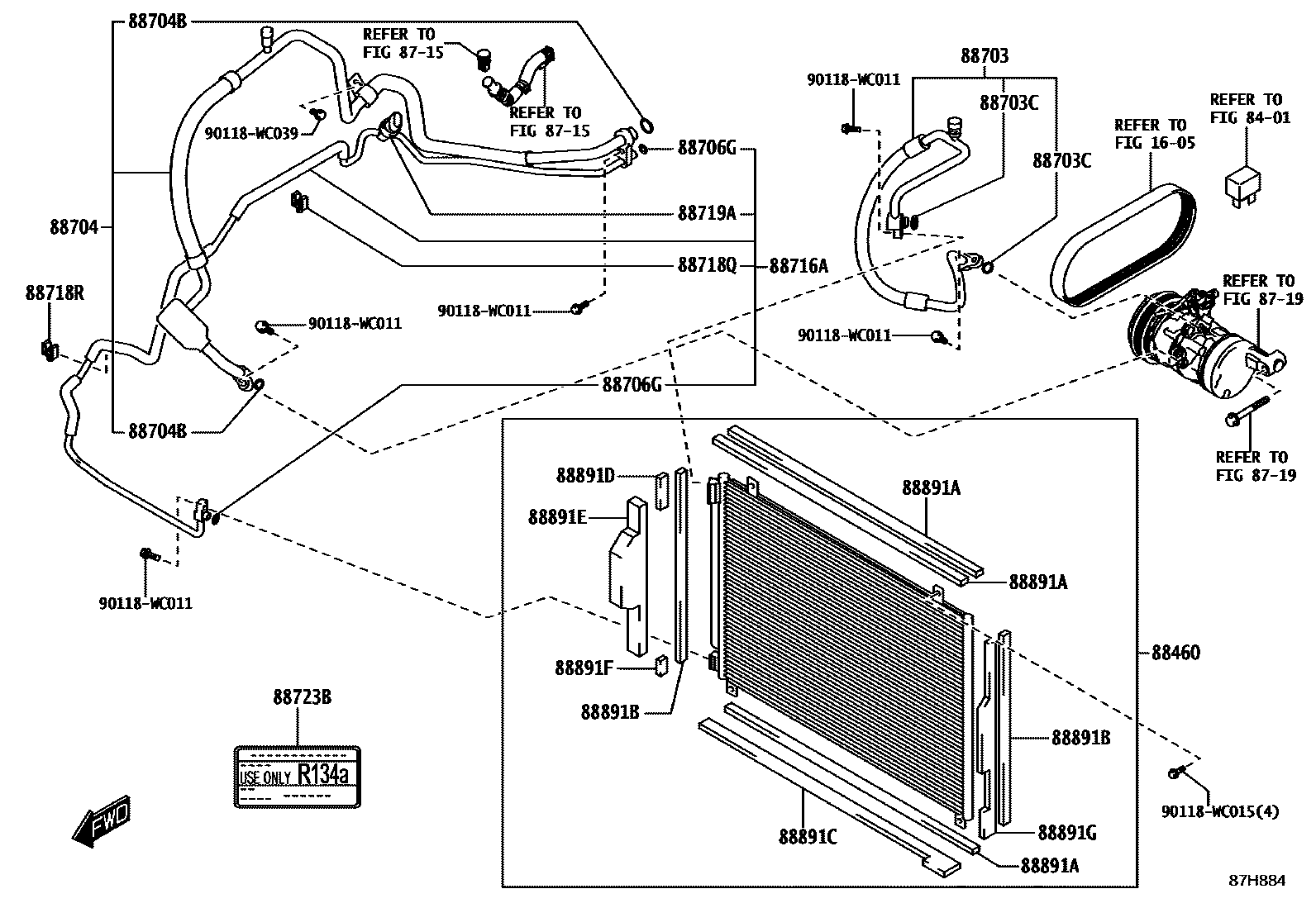

HEATING & AIR CONDITIONING - COOLER PIPING

1605

8401

8715

8719

88460CONDENSER ASSY, COOLER

main88460-WC002iK12N201904

POS.4

88703HOSE SUB-ASSY, DISCHARGE

main88711-WC001iK12N201904

POS.4

88703CRING, O(FOR DISCHARGE HOSE)

main90118-WC634×2iK12N201904

ID=10.8,OD=13.2,POS.4

88704HOSE SUB-ASSY, SUCTION

main88704-WC003iK12M..5F..G201909

POS.2

main88704-WC004iK12N201904

POS.1

88704BRING, O(FOR SUCTION HOSE)

main90118-WC635×2iK12N201904

ID=13.4,OD=15.8,POS.3

88706GRING, O(FOR LIQUID TUBE)

main90118-WC633×2iK12N201904

ID=6.7,OD=8.5,POS.3

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-WC001iK12N201904

POS.4

88718QCLAMP, PIPING

main88718-WC001iK12N201904

POS.4

88718RCLAMP, PIPING

main90118-WC243iK12N201904

POS.4

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-WC001iK12N201904

POS.4

88723BLABEL, COOLER SERVICE CAUTION

main88723-WC002iK12N201904

POS.4

88891APACKING A (FOR COOLER)

main88578-WC003×3iK12N201904

POS.4

88891BPACKING B (FOR COOLER)

main88578-WC004×2iK12N201904

POS.4

88891CPACKING C (FOR COOLER)

main88578-WC005iK12N201904

POS.4

88891DPACKING D (FOR COOLER)

main88578-WC006iK12N201904

POS.4

88891EPACKING E (FOR COOLER)

main88578-WC007iK12N201904

POS.4

88891FPACKING F (FOR COOLER)

main88578-WC008iK12N201904

POS.4

88891GPACKING G (FOR COOLER)

main88578-WC009iK12N201904

POS.4

90118WC011

main90118-WC011

90118WC015

main90118-WC015

90118WC039

main90118-WC039

25 parts on this diagram · 1 diagram in section
