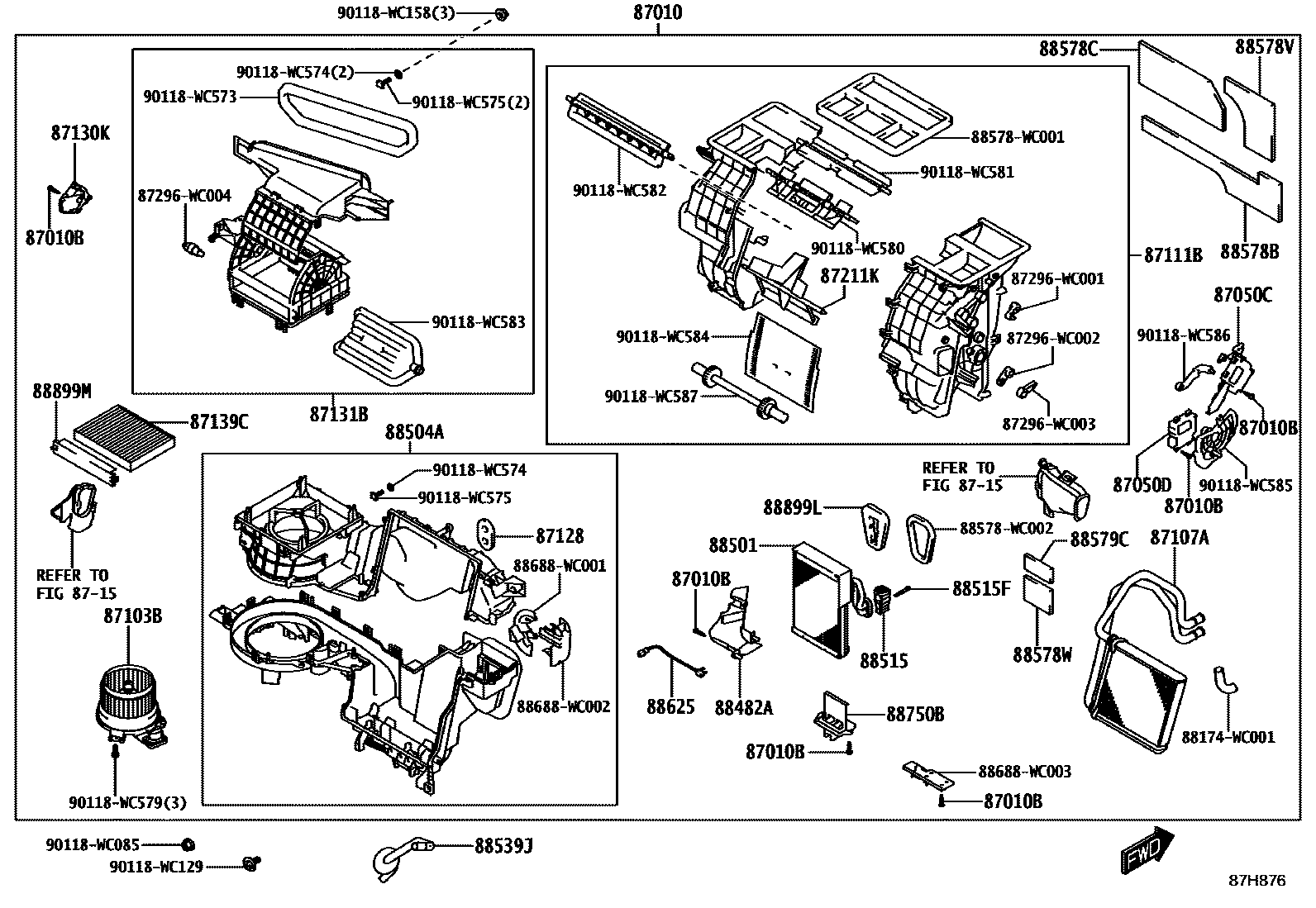

HEATING & AIR CONDITIONING - COOLER UNIT
87010BSCREW(FOR AIR CONDITIONER UNIT)
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87111BCASE, HEATER
87128GROMMET, HEATER
main87128-WC001
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87131BCASE, HEATER BLOWER
87139CFILTER, CLEAN AIR
8715
87211KDUCT, AIR
88482ACOVER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
main88501-WC001
88504ACASE SUB-ASSY, BLOWER
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539JHOSE, DRAIN COOLER
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88578VPACKING, COOLING UNIT, NO.3
88578WPACKING, COOLING UNIT, NO.4
88579CPACKING, COOLING UNIT, NO.5
88625THERMISTOR, COOLER, NO.1
main88625-WC001
88750BTRANSISTOR ASSY, BLOWER RESISTOR
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
87296WC001WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
main87296-WC001
87296WC002WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
main87296-WC002
87296WC003WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
main87296-WC003
87296WC004WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
main87296-WC004
88174WC001
main88174-WC001
88578WC001PAKING, COOLER AIR DUCT
main88578-WC001
88578WC002PAKING, COOLER AIR DUCT
main88578-WC002
88688WC001BRACKET, COOLER DIAPHRAGM
main88688-WC001
88688WC002BRACKET, COOLER DIAPHRAGM
main88688-WC002
88688WC003BRACKET, COOLER DIAPHRAGM
main88688-WC003
90118WC085
main90118-WC085
90118WC129
main90118-WC129
90118WC158
main90118-WC158
90118WC573
main90118-WC573
90118WC574
main90118-WC574
90118WC575
main90118-WC575
90118WC579
main90118-WC579
90118WC580
main90118-WC580
90118WC581
main90118-WC581
90118WC582
main90118-WC582
90118WC583
main90118-WC583
90118WC584
main90118-WC584
90118WC585
main90118-WC585
90118WC586
main90118-WC586
90118WC587
main90118-WC587
53 parts on this diagram · 1 diagram in section
