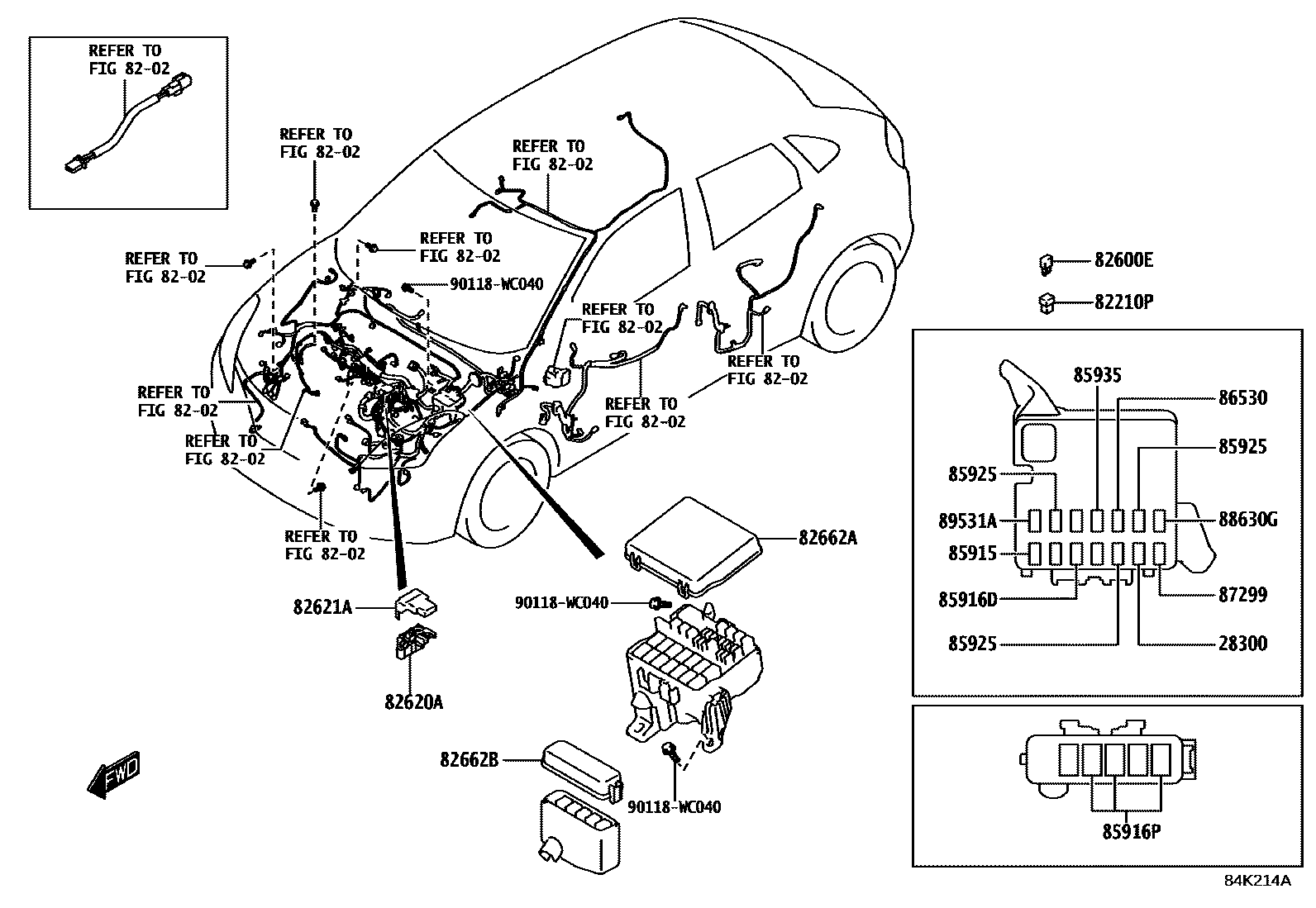

Parts diagram
28300RELAY ASSY, STARTER
main90118-WC485i201904
POS.4,DENSO
main90118-WC486i201904
POS.3,*INM
8202
82210PENGINE ROOM FUSIBLE LINK
main90118-WC282i201904
40A,POS.4
main90118-WC283i201904
50A,POS.4
main90118-WC284i201904
60A,POS.3
main90118-WCA37i201904
30A,POS.1
82600EENGINE ROOM FUSE
main90118-WC275i201904
5A,POS.1
main90118-WC278i201909
20A,POS.2
main90118-WC281i201904
30A,#,POS.5
main90118-WCA33i201904
10A,POS.4
main90118-WCA34i201904
15A,POS.5
main90118-WCA36i201904
25A,POS.5
82620ABLOCK ASSY, FUSIBLE LINK
main82620-WC001i201904
POS.1
main82620-WC002i201904
POS.4
82621ACOVER, FUSIBLE LINK
main82621-WC001i201904
POS.4
main82621-WC002i201904
POS.1
82662ACOVER, RELAY BLOCK, UPPER, NO.1
main82611-WC011i201904
POS.4
82662BCOVER, RELAY BLOCK, UPPER, NO.2
main82611-WC002i201904
POS.4
85915RELAY, MAIN
main90118-WC485i201904
POS.4
85916DRELAY, FOG LAMP
main90118-WC485i201904
POS.1,DENSO
main90118-WC486i201904
POS.3,*INM
85916PRELAY, HEADLAMP
main90118-WC485×3i201904
POS.4,DENSO
main90118-WC486×3i201909
POS.2,*INM
85925RELAY, RADIATOR FAN
main90118-WC485×3i201904
POS.4
85935RELAY, FUEL PUMP
main90118-WC485i201904
POS.4
86530RELAY ASSY, HORN
main90118-WC485i201904
POS.1,DENSO
main90118-WC486i201904
POS.3,*INM
87299RELAY, HEATER
main90118-WC485i201904
POS.4
88630GRELAY ASSY, COOLER
main90118-WC485i201904
POS.1,DENSO
main90118-WC486i201904
POS.3,*INM
89531ARELAY, TRANSMISSION CONTROL
main90118-WC485i201904
POS.4,DENSO
main90118-WC486i201904
POS.4,*INM
90118WC040
main90118-WC040

18 parts on this diagram · 27 diagrams in section
