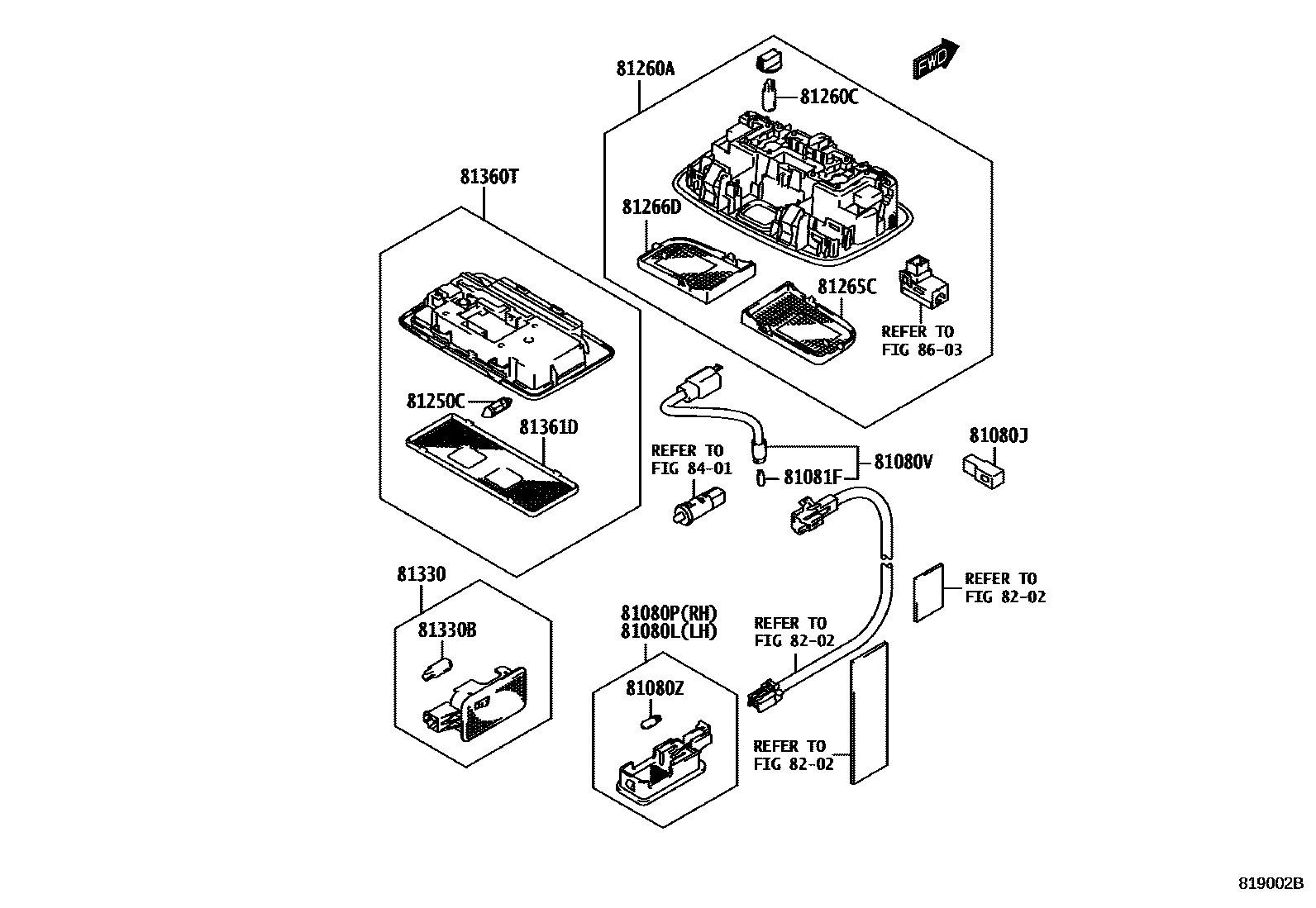

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-WC001×2iK12M..CVT..G201904

POS.4

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81230-WC001iK12M..CVT..G201904

POS.4

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81230-WC001iK12M..CVT..G201904

POS.4

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-WC002iK12M..CVT..G201904

POS.4

81080ZBULB, INTERIOR ILLUMINATION LAMP, NO.1

main90118-WC272×2iK12M..CVT..G201904

12V 5W,POS.3

81081FBULB, INTERIOR ILLUMINATION LAMP, NO.2

main90118-WC268iK12M..CVT..G201904

12V 1.4W,POS.5

81250CBULB, SPOT LAMP

main90118-WC270iK12M..CVT..G201904

12V 10W,POS.3

81260ALAMP ASSY, MAP

main81260-WC001iK12M..CVT..G201904

POS.4

81260CBULB(FOR MAP LAMP)

main90118-WC272iK12M..CVT..G201904

12V 5W,POS.3

81265CLENS, MAP LAMP, NO.1

main81265-WC001iK12M..CVT..G201904

POS.4

81266DLENS, MAP LAMP, NO.2

main81266-WC001iK12M..CVT..G201904

POS.4

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81230-WC003iK12M..CVT..G201904

POS.4

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90118-WC272iK12M..CVT..G201904

12V 5W,POS.3

81360TLAMP ASSY, SPOT

main81230-WC002iK12M..CVT..G201904

POS.4

81361DLENS, SPOT LAMP

main81241-WC001iK12M..CVT..G201904

POS.4

8202

8401

8603

18 parts on this diagram · 2 diagrams in section
