BACK DOOR LOCK & HANDLE

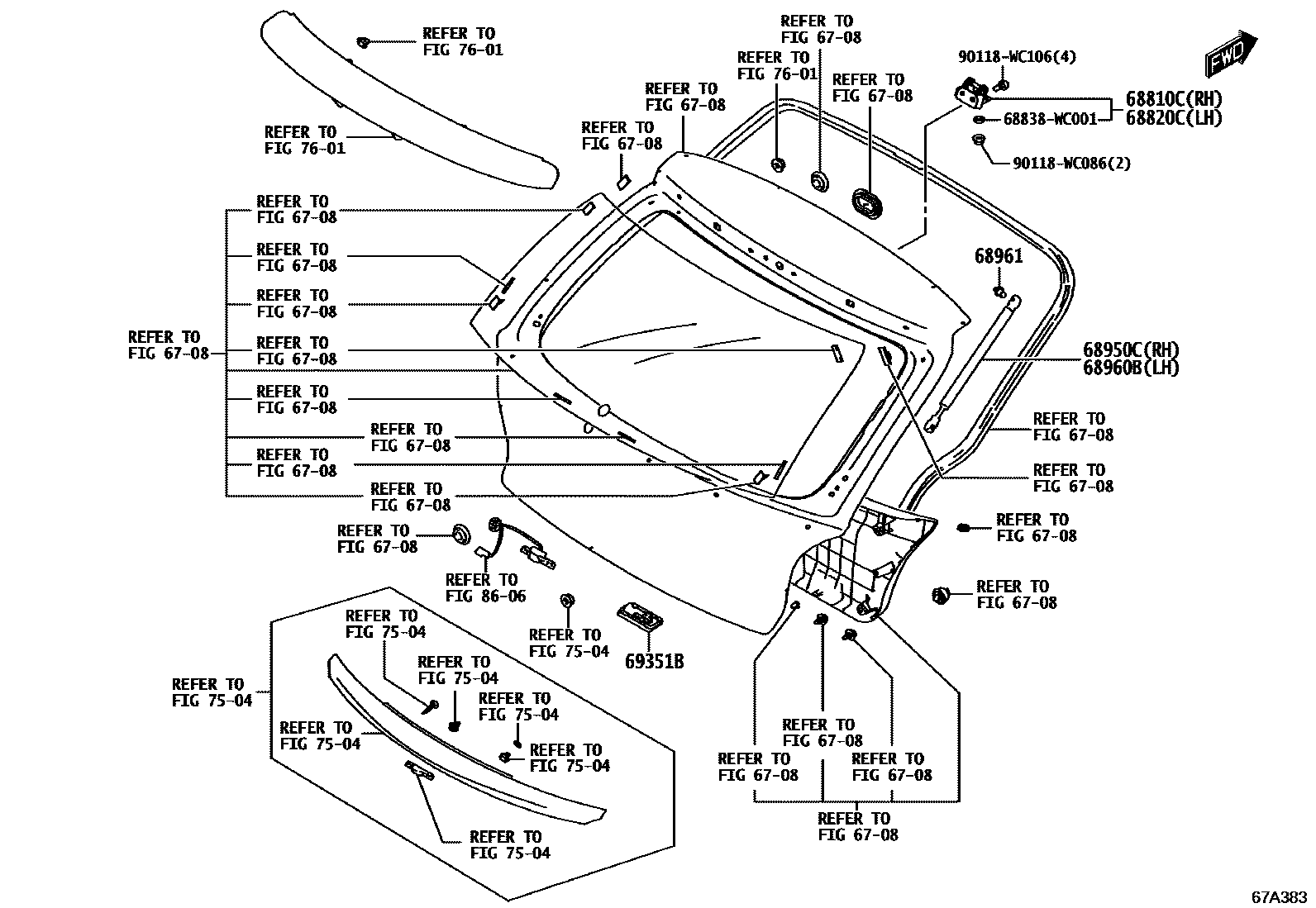

Parts diagram

6708

68810CHINGE ASSY, BACK DOOR, RH

main68801-WC001i201904

POS.1

68820CHINGE ASSY, BACK DOOR, LH

main68801-WC001i201904

POS.1

68950CSTAY ASSY, BACK DOOR, RH

main68950-WC001i201904

POS.1

68960BSTAY ASSY, BACK DOOR, LH

main68950-WC001i201904

POS.1

68961BOLT, BACK DOOR STAY

main68961-WC001×4i201904

POS.1

69351BHOLDER, BACK DOOR SWITCH

main69351-WC001i201904

POS.1

7504

7601

8606

68838WC001PAD, BACK DOOR HINGE, NO.1

main68838-WC001

90118WC086

main90118-WC086

90118WC106

main90118-WC106

13 parts on this diagram · 2 diagrams in section
