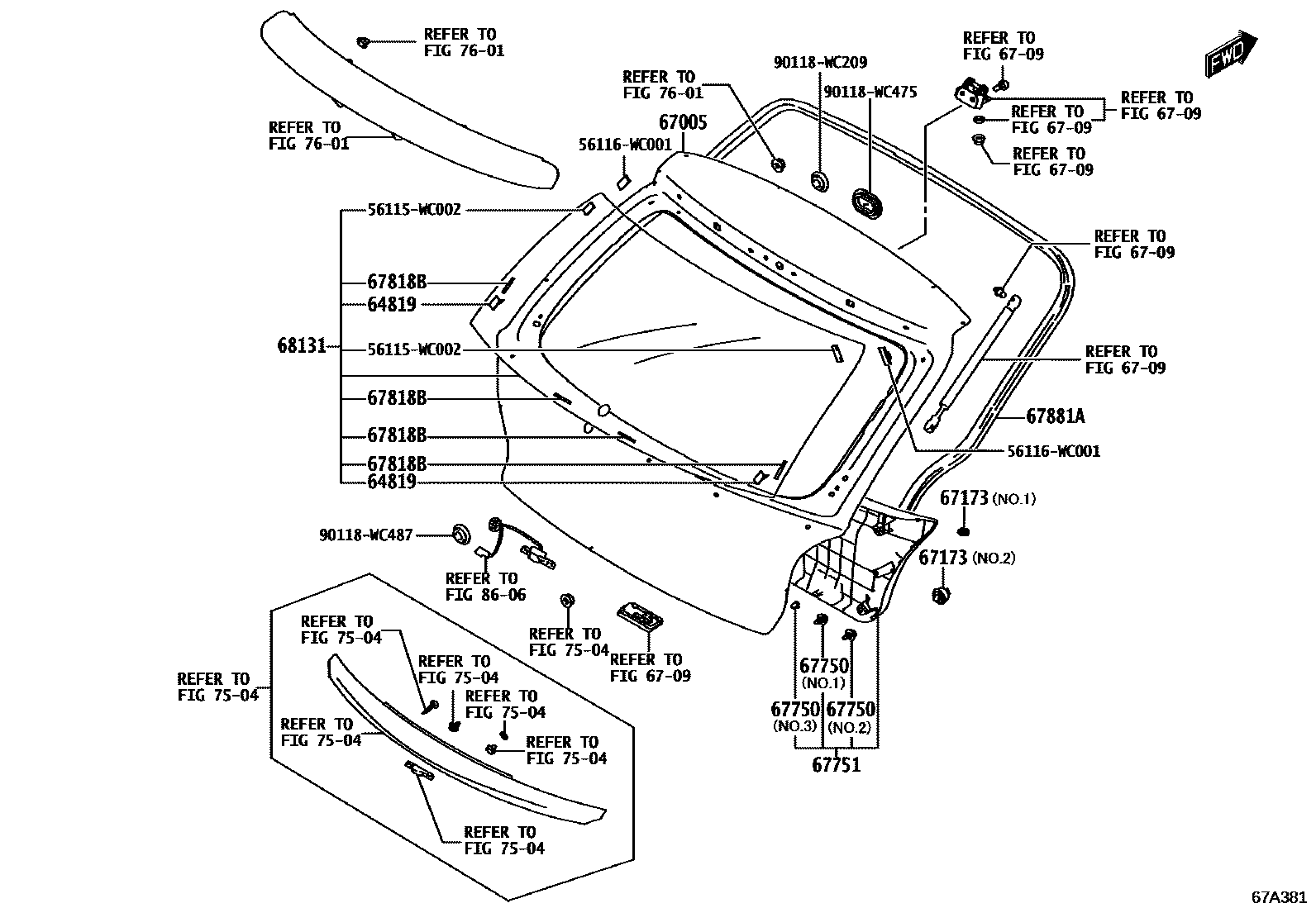

BACK DOOR PANEL & GLASS

0001 1 0002 1

64819SPACER, BACK WINDOW GLASS, NO.2

main64827-WC001×2iK12M..CVT..V201904

POS.4

67005PANEL SUB-ASSY, BACK DOOR

main67005-WC006iK12M..CVT..V201904

POS.4

6709

67173CUSHION, BACK DOOR

main90118-WC599×2iK12M..CVT..V201904

POS.4,NO.1:REFER ILLUST.

main90118-WC600×2iK12M..CVT..V201904

POS.1,NO.2:REFER ILLUST.

67750BOARD ASSY, BACK DOOR TRIM

main90118-WC256iK12M..CVT..V201904

POS.4,NO.3:REFER ILLUST.

main90118-WC261×2iK12M..CVT..V201904

POS.4,NO.1:REFER ILLUST.

main90118-WC265×8iK12M..CVT..V201904

POS.1,NO.2:REFER ILLUST.

67751BOARD, BACK DOOR TRIM

main67751-WC001iK12M..CVT..V201904

POS.4

67818BSPACER, BACK WINDOW GLASS

main56116-WC002×4iK12M..CVT..V201904

POS.4

67881AWEATHERSTRIP, BACK DOOR

main67881-WC001iK12M..CVT..V201904

POS.4

68131GLASS, BACK DOOR

main68105-WC001iK12M..CVT..V201904

POS.4

7504

7601

8606

56115WC002FILM, INNER REAR VIEW MIRROR TO WINDSHIELD

main56115-WC002

56116WC001SPACER, WINDSHIELD GLASS

main56116-WC001

90118WC209

main90118-WC209

90118WC475

main90118-WC475

90118WC487

main90118-WC487

17 parts on this diagram · 2 diagrams in section
