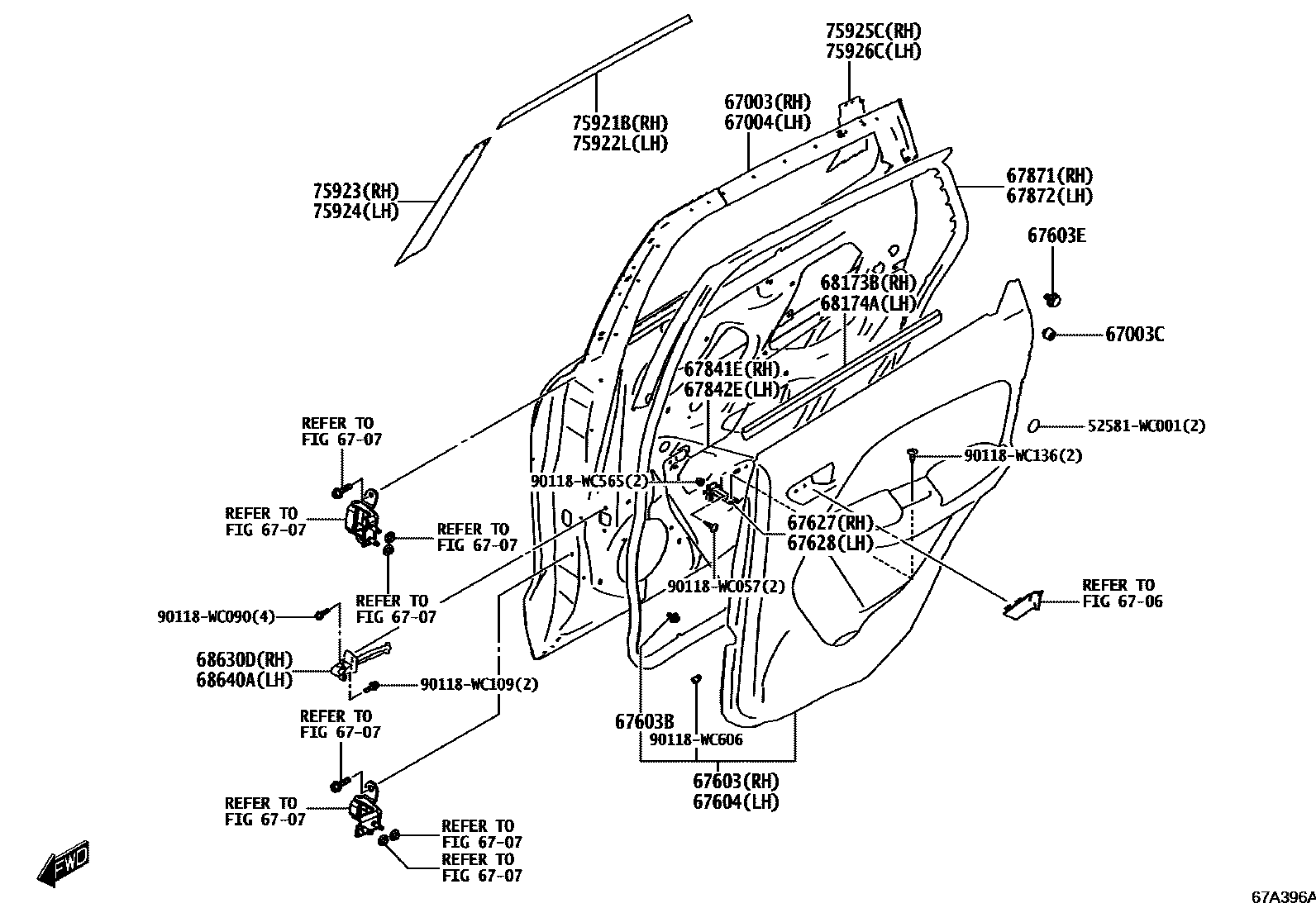

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-WC007

main90118-WC601

67003CCUSHION, REAR DOOR PANEL

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-WC007

6706

6707

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-WC027

main90118-WC253

main90118-WC265

67603BCLIP(FOR REAR DOOR TRIM BOARD)

67603ECLIP(FOR REAR DOOR TRIM BOARD)

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-WC027

67627BRACKET, REAR DOOR TRIM, RH

main90118-WC605

67628BRACKET, REAR DOOR TRIM, LH

main90118-WC608

67841ECOVER, REAR DOOR SERVICE HOLE, RH

67842ECOVER, REAR DOOR SERVICE HOLE, LH

67871WEATHERSTRIP, REAR DOOR, RH

main67871-WC001

67872WEATHERSTRIP, REAR DOOR, LH

main67872-WC001

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

68630DCHECK ASSY, REAR DOOR, RH

68640ACHECK ASSY, REAR DOOR, LH

75921BTAPE, BLACK OUT, NO.1 RH

75922LTAPE, BLACK OUT, NO.1 LH

75923TAPE, BLACK OUT, NO.2 RH

main75977-WC002

75924TAPE, BLACK OUT, NO.2 LH

main75978-WC002

75925CTAPE, BLACK OUT, NO.3 RH

75926CTAPE, BLACK OUT, NO.3 LH

52581WC001PROTECTOR, REAR BUMPER, RH

main52581-WC001

90118WC057

main90118-WC057

90118WC090

main90118-WC090

90118WC109

main90118-WC109

90118WC136

main90118-WC136

90118WC565

main90118-WC565

90118WC606

main90118-WC606

32 parts on this diagram · 2 diagrams in section
