FRONT SPRING & SHOCK ABSORBER

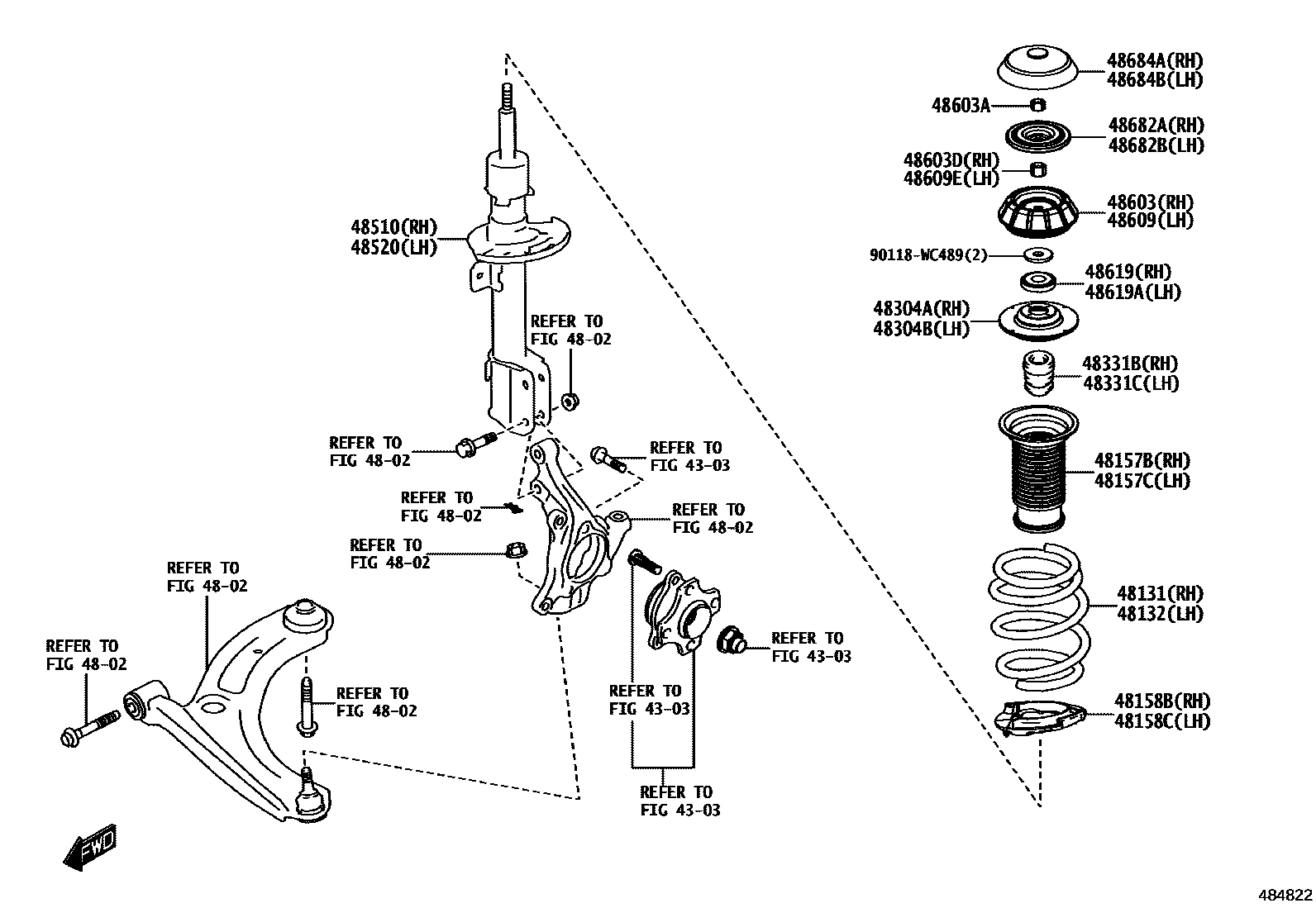

Parts diagram

4303

4802

48131SPRING, FRONT COIL, RH

main48131-WC001i201904

POS.1

main48131-WC002i201904

POS.3

48132SPRING, FRONT COIL, LH

main48131-WC001i201904

POS.1

main48131-WC002i201904

POS.3

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48559-WC001i201904

POS.1

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48559-WC001i201904

POS.1

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-WC001i201904

POS.1

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-WC001i201904

POS.1

48304ASEAT SUB-ASSY, BUMPER, RH

main48471-WC001i201904

POS.1

48304BSEAT SUB-ASSY, BUMPER, LH

main48471-WC001i201904

POS.1

48331BBUMPER, FRONT SPRING, RH

main48331-WC001i201904

POS.1

48331CBUMPER, FRONT SPRING, LH

main48331-WC001i201904

POS.1

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-WC001i201904

POS.1

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-WC001i201904

POS.1

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-WC001i201904

POS.1

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90118-WC075×2i201904

POS.1

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90118-WC490i201904

POS.1

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-WC001i201904

POS.1

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90118-WC490i201904

POS.1

48619BEARING, STRUT MOUNTING, RH

main48619-WC001i201904

POS.1

48619ABEARING, STRUT MOUNTING, LH

main48619-WC001i201904

POS.1

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-WC001i201904

POS.1

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-WC001i201904

POS.1

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-WC001i201904

POS.1

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-WC001i201904

POS.1

90118WC489

main90118-WC489

26 parts on this diagram · 2 diagrams in section
