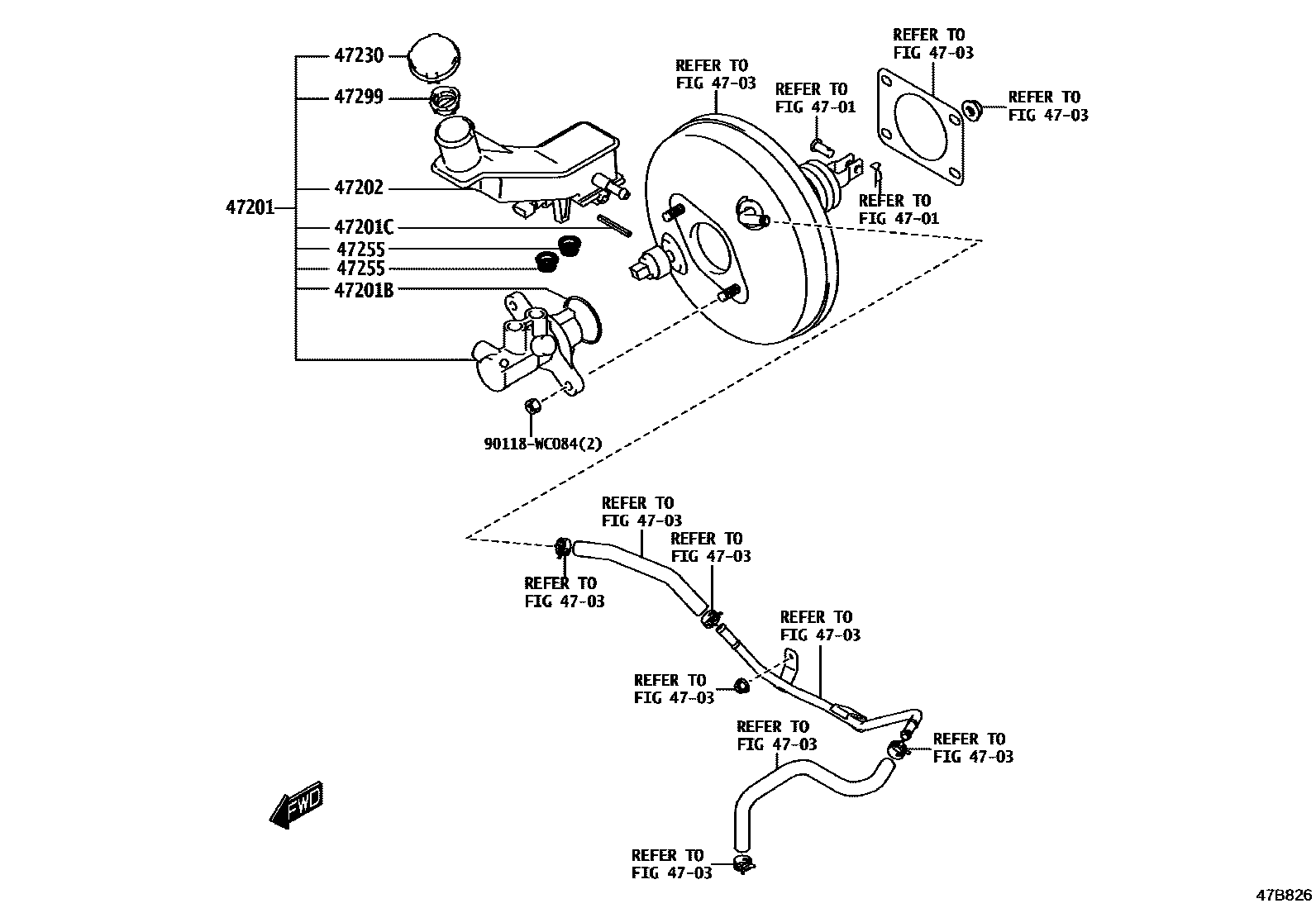

BRAKE MASTER CYLINDER
4701
4703
47201CYLINDER SUB-ASSY, BRAKE MASTER
POS.1
47201BRING, O(FOR BRAKE MASTER CYLINDER)
POS.1
47201CRING PIN, BRAKE MASTER CYLINDER
POS.1
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
POS.1
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
POS.1
47255GROMMET, MASTER CYLINDER RESERVOIR
POS.1
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
POS.1
90118WC084
main90118-WC084
10 parts on this diagram · 1 diagram in section
