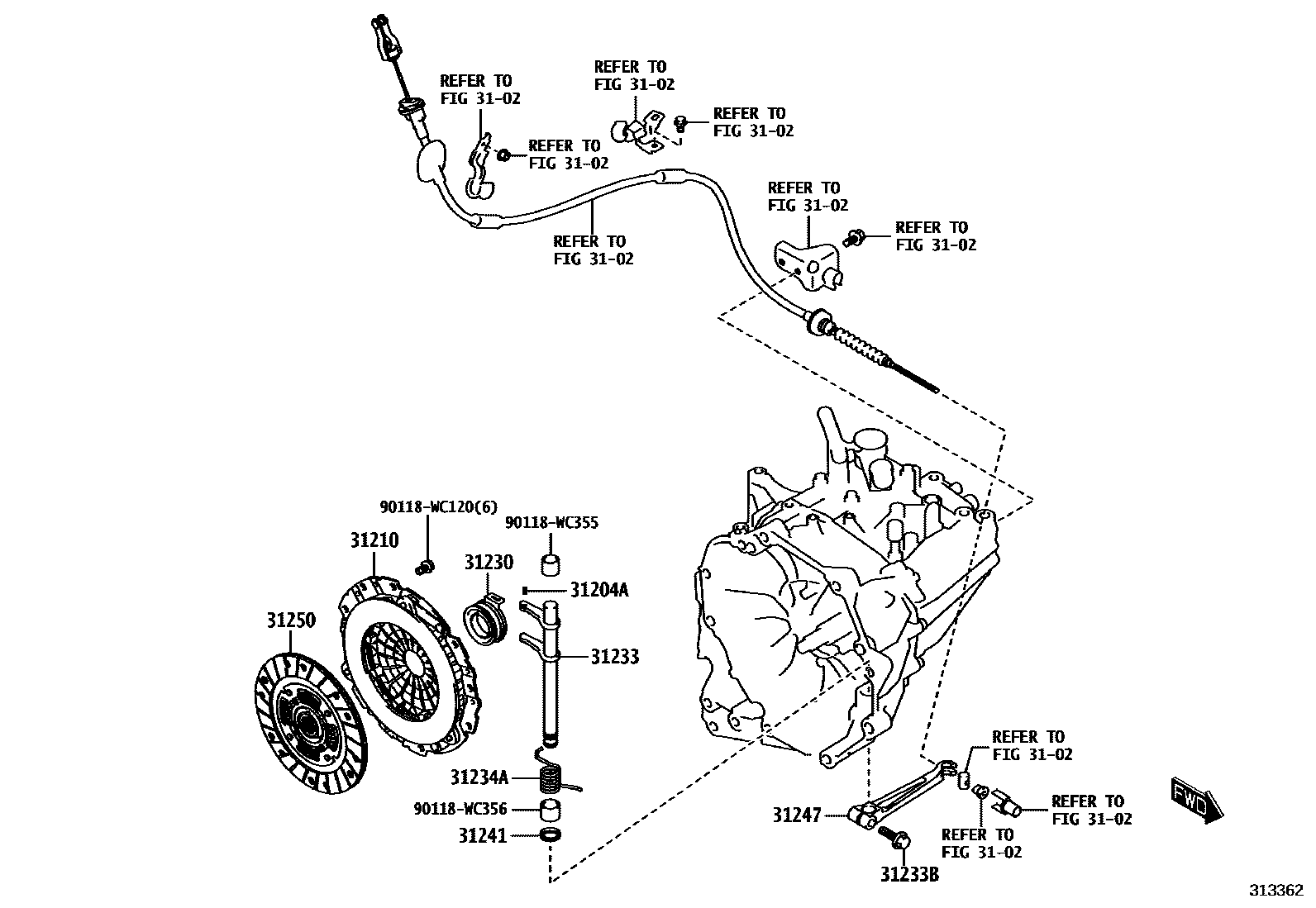

CLUTCH & RELEASE FORK
3102
31204APIN(FOR CLUTCH RELEASE FORK)
POS.3
31210COVER ASSY, CLUTCH
POS.3
31230BEARING ASSY, CLUTCH RELEASE
POS.3
31233FORK, CLUTCH RELEASE
POS.3
31233BBOLT(FOR RELEASE FORK & RELEASE LEVER SETTING)
POS.3
31234ASPRING, RELEASE FORK SUPPORT
POS.3
31241SEAL, CLUTCH RELEASE FORK DUST
POS.3
31247LEVER, CLUTCH RELEASE FORK
POS.3
31250DISC ASSY, CLUTCH
POS.3
90118WC120
main90118-WC120
90118WC355
main90118-WC355
90118WC356
main90118-WC356
13 parts on this diagram · 2 diagrams in section
