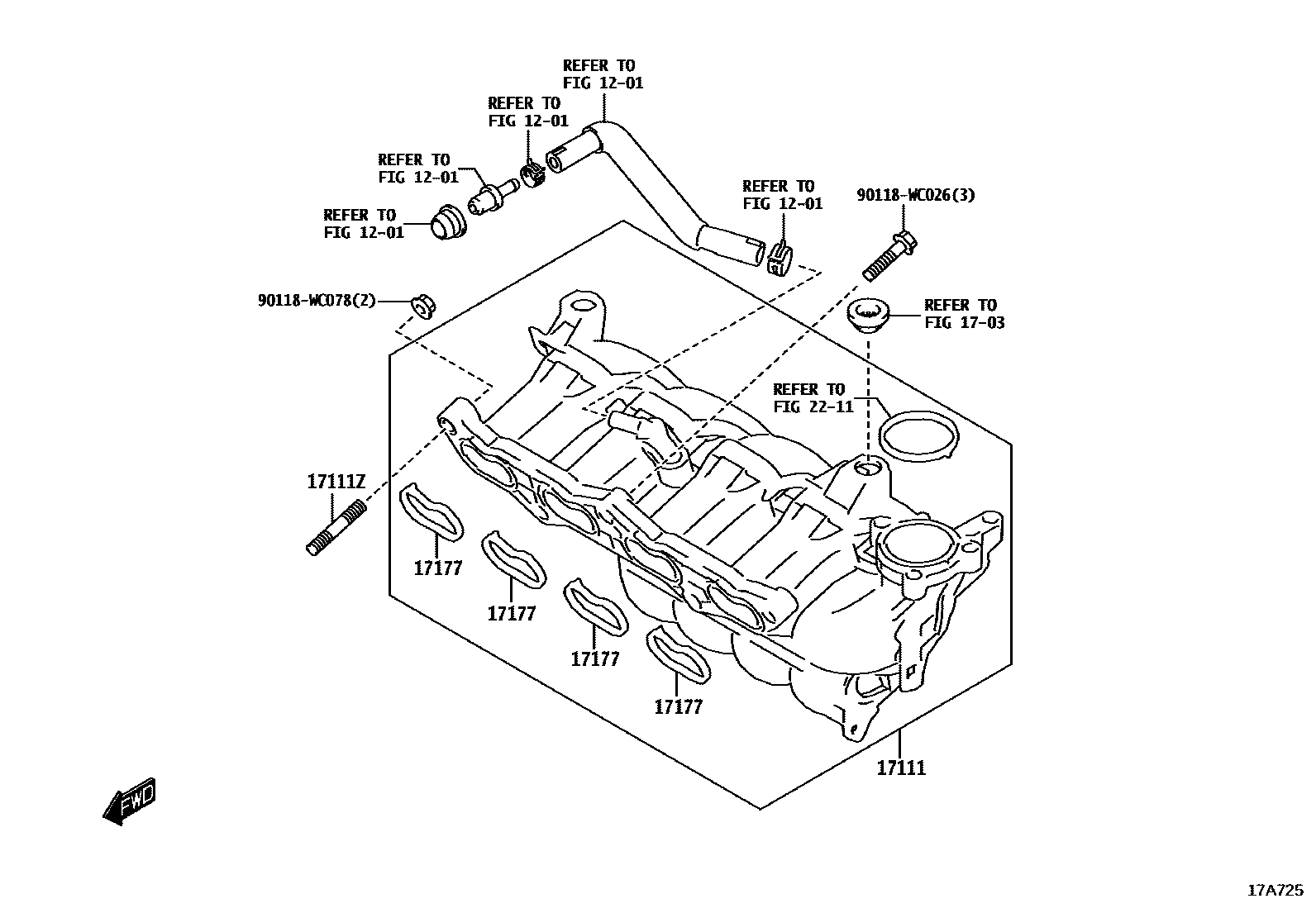

MANIFOLD

0001 1 0002 1 0003 1 0004 1

1201

1703

17111MANIFOLD, INTAKE

main17120-WC001iK12N..K12N201904

POS.1

main17120-WC002iK12M..K12M..CVT..G201904

POS.4

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90118-WC003×2iK12N..K12N201904

POS.1

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-WC002×4iK12M..K12M..5F..G201909

POS.2

main17177-WC008iK12N..K12N201904

POS.1

2211

90118WC026

main90118-WC026

90118WC078

main90118-WC078

8 parts on this diagram · 4 diagrams in section
