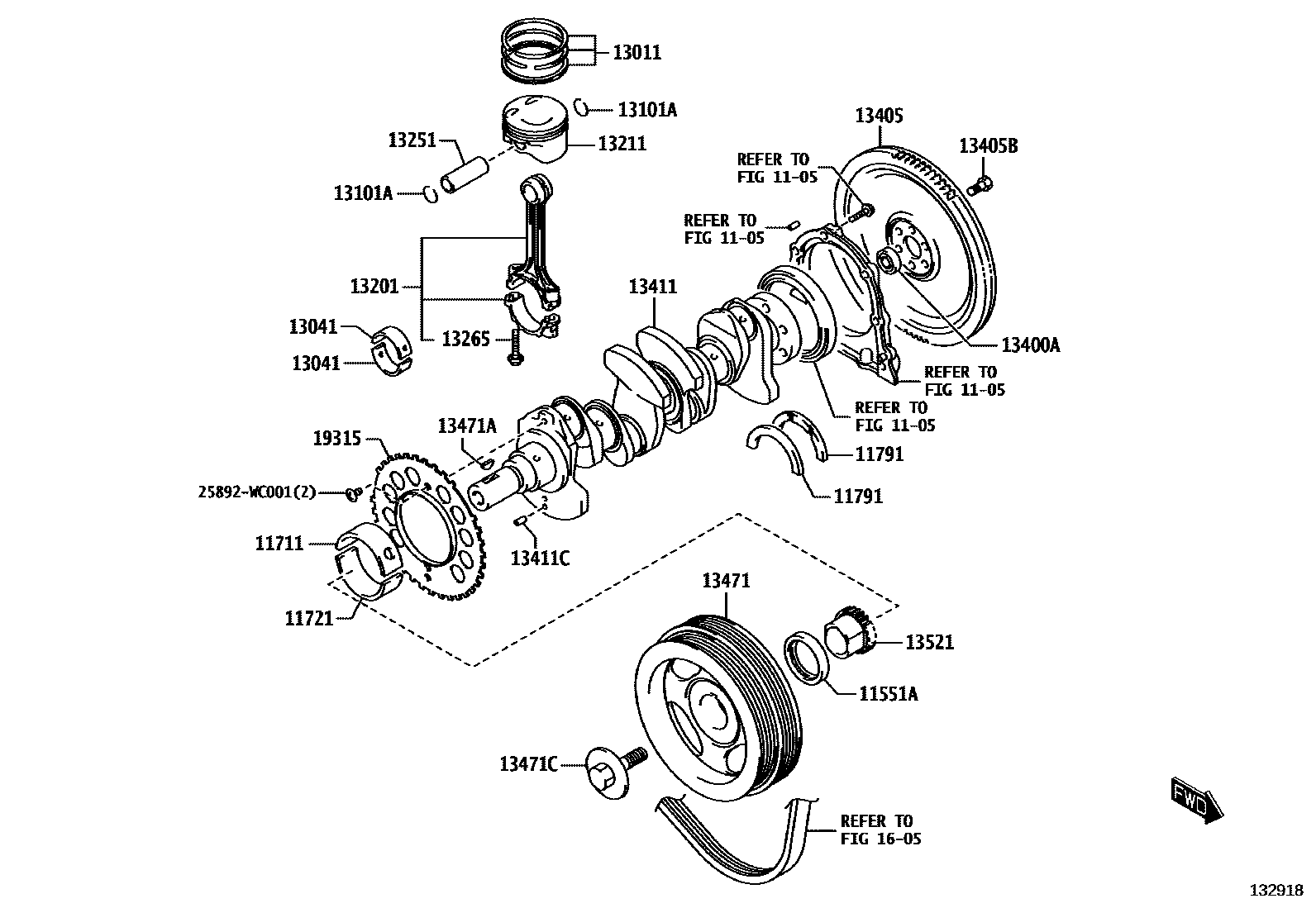

CRANKSHAFT & PISTON
1105
11551ASEAL, CRANKSHAFT OIL
POS.3
POS.1
11711BEARING, CRANKSHAFT
POS.1,NO.1,RED/PINK
POS.1,NO.1,PINK
POS.1,NO.1,RED/PURPLE
POS.1,NO.1,PURPLE
POS.1,NO.1,RED/BROWN
POS.1,NO.1,BROWN
POS.1,NO.1,RED/GREEN
POS.1,NO.1,GREEN
POS.1,NO.1,RED/BLACK
POS.1,NO.1,BLACK
POS.4,RED/PINK
POS.5,PINK
POS.5,RED/PULPLE
POS.3,PURPLE
POS.1,NO.2,RED/BROWN
POS.1,NO.2,BROWN
POS.4,RED/GREEN
POS.1,NO.2,GREEN
POS.4,RED/BLACK
POS.3,BLACK
11721BEARING, CRANKSHAFT, NO.2
POS.1,NO.1,RED/PINK
POS.1,NO.1,PINK
POS.1,NO.1,RED/PURPLE
POS.1,NO.1,PURPLE
POS.1,NO.1,RED/BROWN
POS.1,NO.1,BROWN
POS.1,NO.1,RED/GREEN
POS.1,NO.1,GREEN
POS.1,NO.1,RED/BLACK
POS.1,NO.1,BLACK
POS.4,RED/PINK
POS.5,PINK
POS.1,NO.2,RED/PURPLE
POS.3,PURPLE
POS.1,NO.2,RED/BROWN
POS.1,NO.2,BROWN
POS.4,RED/GREEN
POS.1,NO.2,GREEN
POS.4,RED/BLACK
POS.2,BLACK
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,POS.4
U/S 0.125,POS.3
13011RING SET, PISTON
STD,POS.1
STD,POS.4
13041BEARING, CONNECTING ROD
POS.3,GREEN
POS.4,BLACK
POS.3,NO PAINT
POS.4,YELLOW
POS.3,BLUE
POS.4,RED
13101ARING, HOLE SNAP(FOR PISTON PIN)
POS.1
POS.3
13201ROD SUB-ASSY, CONNECTING
POS.3
POS.1
13251PIN, PISTON
POS.3
POS.1
13265BOLT, CONNECTING ROD
POS.3
POS.1
13400ABEARING(FOR CRANKSHAFT)
POS.3
POS.1
13405FLYWHEEL SUB-ASSY
POS.1
POS.3
13405BBOLT, FLYWHEEL SETTING
POS.3
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
POS.3
13471PULLEY, CRANKSHAFT
POS.1
POS.3
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
POS.3
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
POS.3
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
POS.2
POS.1
1605
19315PLATE, CRANK ANGLE SENSOR, NO.1
POS.1
POS.3
25892WC001
main25892-WC001
24 parts on this diagram · 2 diagrams in section
