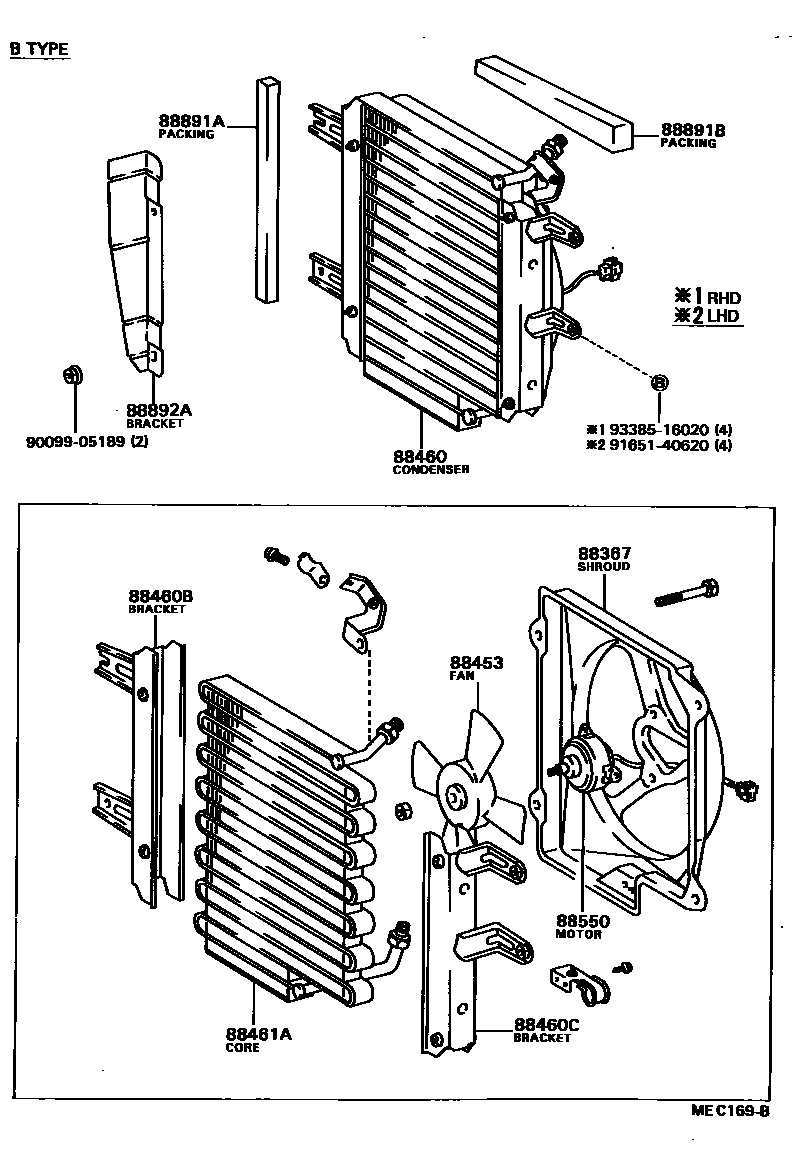

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0004 1 0005 1 0008 1 0009 1

88367SHROUD, COOLER BLOWER FAN

main88454-16040iAL20,25..RHD..(ARL,GEN)198205-198408

main88454-16050iAL25..ARL198408-198801

88453FAN, COOLING (FOR CONDENSER)

main11690-17702iAL25..ARL198708-198801

main88453-16010iAL2#..LHD198205-198708

sub11690-17702

88460CONDENSER ASSY, COOLER

main88460-16050iAL20,25..RHD..GEN198205-198408

main88460-16060iAL25..ARL198308-198408

main88460-16100iAL25..GEN;AL25..LHD..EUG198408-198801

A TYPE

main88460-16130iAL25..RHD..(ARL,GEN)198408-198801

B TYPE

88460BBRACKET, COOLER CONDENSER, NO.1

main88463-16060iAL25..ARL198308-198408

main88463-16080iAL20,25..RHD..GEN198205-198408

main88463-16080iAL25..RHD..(ARL,GEN)198408-198801

B TYPE

main88463-16120iAL25..GEN;AL25..LHD..EUG198408-198801

A TYPE

88460CBRACKET, COOLER CONDENSER, NO.2

main88463-16070iAL25..ARL198308-198408

main88463-16090iAL2#..LHD198205-198801

88461ACORE, COOLER CONDENSER

main88461-16040iAL20,25..RHD..(ARL,GEN)198205-198801

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-16060iAL2#..LHD198205-198408

main88550-16070iAL25..GEN;AL25..LHD..EUG198408-198801

main88550-16080iAL25..ARL198408-198801

88891APACKING A (FOR COOLER)

main88892-16080iAL20,25..RHD..GEN198205-198408

main88892-16080iAL25..RHD..(ARL,GEN)198408-198801

B TYPE

88891BPACKING B (FOR COOLER)

main88892-16090iAL20,25..RHD..GEN198205-198408

main88892-16090iAL25..RHD..(ARL,GEN)198408-198801

B TYPE

88892ABRACKET, COOLER EVAPORATOR MOUNTING

main88892-16040iAL20,25..RHD..GEN198205-198408

main88892-16120iAL25..ARL198408-198801

9009905189

main90099-05189

9165140620

main91651-40620

9338516020

main93385-16020

13 parts on this diagram · 5 diagrams in section
