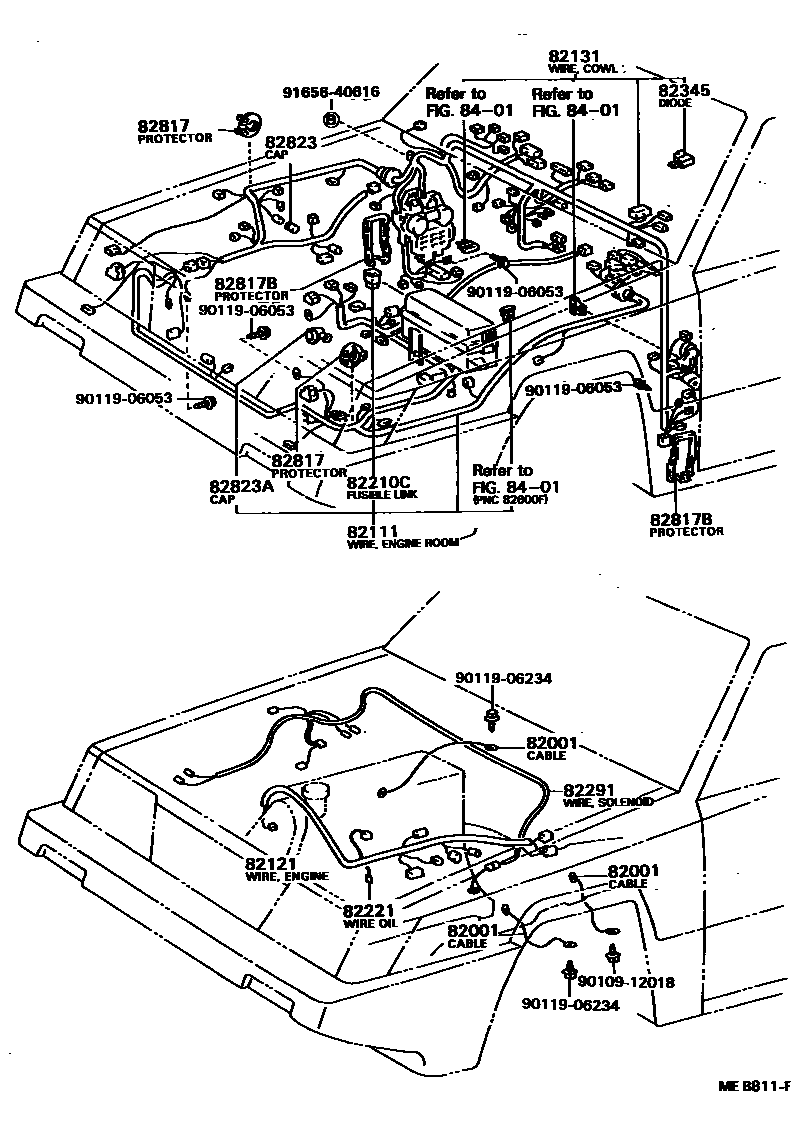

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

82001CABLE, BOND, NO.1

main90980-07119iAL20,21;AL25..EUG,SDZ;AL25..ARL,GEN198205-198801

L=320,CLUCH-FLOOR

main90980-07200iAL2#198205-198402

L=350,ENGINE-DASH

main90980-07207iAL20,21..3FC198205-198408

L=140,MISSION-FLOOR

main90980-07208iAL20,21..MTM;AL25..EUG,SDZ;AL25..ARL,GEN198205-198801

L=210,MISSION-FROOR

main90980-07233iAL2#198402-198801

L=350,ENGINE-DASH

82111WIRE, ENGINE ROOM MAIN

main82111-16050iAL2#..LHD..EUG198205-198209

main82111-16051iAL2#..LHD..EUR198209-198212

main82111-16052iAL2#..LHD..EUR198212-198408

main82111-16060iAL2#..RHD..EUG198205-198209

main82111-16061iAL20,25..RHD..EUG198209-198212

main82111-16062iAL20,25..RHD..EUG198212-198408

main82111-16070iAL20,25..LHD..GEN198205-198408

main82111-16150iAL20,25..RHD..GEN198205-198408

main82111-16240iAL25..ARL198308-198408

main82111-16360iAL25..RHD..EUG198408-198605

main82111-16370iAL25..SDZ198605-198801

SWEDEN SPEC

main82111-16380iAL25..RHD..GEN198408-198801

main82111-16390iAL25..LHD..GEN198408-198801

main82111-16400iAL25..ARL198408-198511

main82111-16410iAL25..LHD..EUG198408-198801

W/COOLER

main82111-16470iAL25..ARL198511-198801

main82111-16530iAL25..RHD..EUG198605-198801

main82111-16570iAL25..FRG,SDZ198605-198801

main82111-16600iAL25..RHD..EUG198611-198801

ENGLAND SPEC

82121WIRE, ENGINE

main82121-16020iAL20,21..MTM198205-198408

main82121-16050iAL20,21..3FC198205-198408

main82121-16080iAL25198208-198408

main82121-16180iAL25..SDZ198605-198801

SWEDEN SPEC

main82121-16191iAL25..ARL198511-198801

main82121-16310iAL25..FRG,SDZ198605-198801

82131WIRE, COWL

main82131-16070iAL20,25..RHD..GEN198205-198408

main82131-16080iAL20,25..LHD..GEN198205-198408

main82131-16090iAL20..LHD..GL198205-198209

W/*SNR

main82131-16091iAL20,21..LHD..GL198209-198408

W/*SNR

main82131-16170iAL2#..RHD..EUG198205-198209

main82131-16171iAL20,25..RHD..EUG198209-198408

main82131-16180iAL2#..LHD..EUG198205-198209

main82131-16181iAL2#..LHD..EUR198209-198408

main82131-16300iAL25..ARL198308-198405

main82131-16301iAL25..ARL198405-198408

main82131-16520iAL25..RHD..EUG198408-198605

main82131-16530iAL25..LHD..EUR198408-198605

main82131-16540iAL25..RHD..GEN198408-198605

main82131-16550iAL25..LHD..GEN198408-198605

main82131-16560iAL25..ARL198408-198511

main82131-16580iAL25..LHD..EUG198408-198605

W/COOLER

main82131-16600iAL25..LHD..EUG198410-198605

NORWAY SPEC

main82131-16740iAL25..ARL198511-198605

main82131-1G020iAL25..RHD..EUG198605-198801

main82131-1G030iAL25..LHD..EUG198605-198801

main82131-1G040iAL25..RHD..GEN198605-198801

main82131-1G050iAL25..LHD..GEN198605-198801

main82131-1G060iAL25..ARL198605-198801

main82131-1G070iAL25..LHD..EUG198605-198801

W/COOLER

main82131-1G080iAL25..SDZ198605-198801

NORWAY SPEC

main82131-1G130iAL25..FRG,SDZ198605-198801

main82131-1G150iAL25..RHD..EUG198611-198801

ENGLAND SPEC

82210CFUSIBLE LINK

main90982-08188×3iAL2#198205-198801

30A,TERM.:FEMALE,PNK,30A

main90982-08189iAL25..FRG,SDZ198605-198801

40A,TERM.:FEMALE,GRN,40A

main90982-08190iAL2#198205-198801

60A,TERM.:FEMALE,YEL,60A

82221WIRE, OIL PRESSURE SWITCH

main82221-16010iAL2#198205-198605

main82221-16030iAL25..ARL198605-198801

82291WIRING, TO SOLENOID

main82291-16020iAL25..ARL,GEN198605-198801

82345DIODE

main82345-12050iAL25..RHD..EUG198611-198801

ENGLAND SPEC,2 POLE CONNECTOR

main82345-32020iAL25..EUR198605-198801

3-POLE CONNECTOR

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-16020×2iAL2#198205-198801

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-16040iAL2#198205-198801

RH

main82817-16050iAL2#198205-198801

LH

82823CAP, TERMINAL, NO.1

main82823-16010iAL25..FRG,SDZ198605-198801

82823ACAP, TERMINAL, NO.2

main82823-12020iAL25..SDZ198605-198801

ALTERNATOR

main82823-22020iAL2#198205-198408

ALTERNATOR

main82823-32020iAL25..RHD..(ARL,GEN)198408-198801

ALTERNATOR

8401

9010912018

main90109-12018

9011906053

main90119-06053

9011906234

main90119-06234

9165640616

main91656-40616

17 parts on this diagram · 6 diagrams in section
