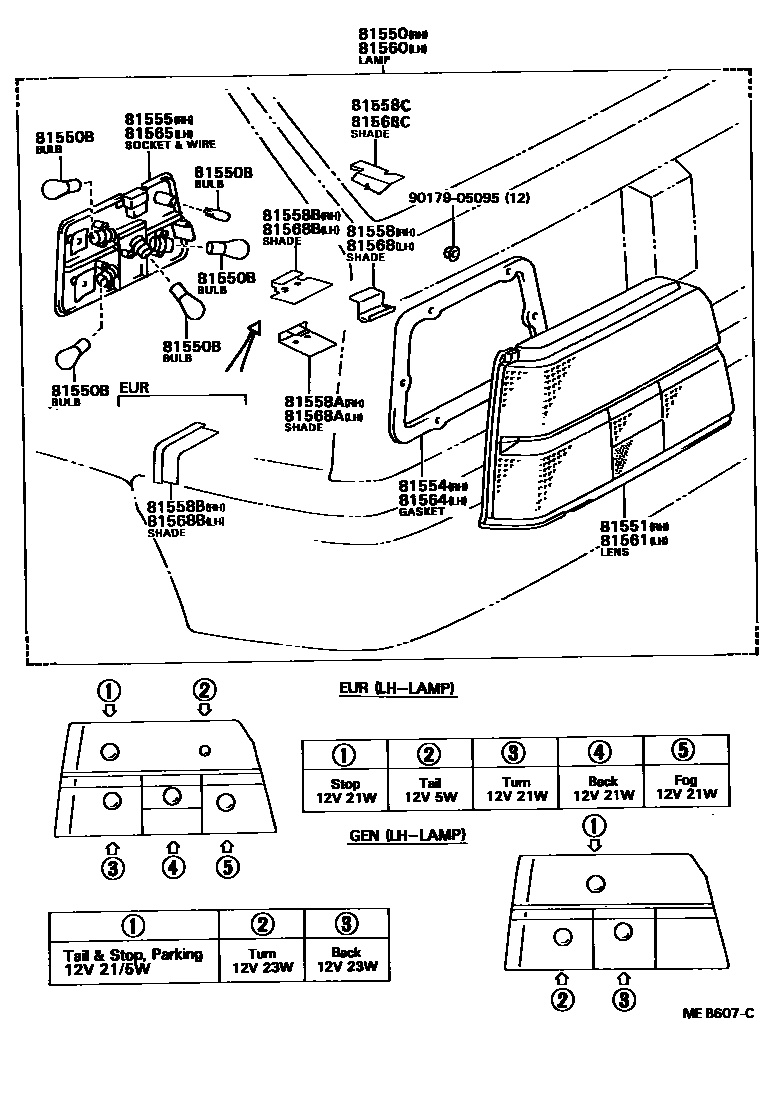

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-80130iAL20..GEN198205-198303

main81550-80134iAL20,21..EUR198205-198303

main81550-80135iAL25..GEN198208-198305

sub81550-16261

main81550-80136iAL25..EUR198208-198305

sub81550-16271

main81550-80171iAL25..GEN198305-198801

sub81550-16261

main81550-80172iAL25..ARL,EUR198305-198801

sub81550-16271

main81550-80178iAL20..GEN198303-198408

main81550-80182iAL20,21..EUR198303-198408

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×8iAL2#..ARL,EUR198205-198801

12V 21W,12V 21W

main99132-11230×4iAL20,25..GEN198205-198801

12V 23W,12V 23W

main99132-12050×2iAL20,21..EUR198205-198408

12V 5W,12V 5W

main99132-21210×2iAL20,25..ARL,GEN198205-198801

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-16210iAL20..GEN198205-198408

main81551-16250iAL20,21..EUR198205-198303

main81551-16251iAL20,21..EUR198303-198408

main81551-16260iAL25..EUR,GEN198208-198305

main81551-16261iAL25..GEN198305-198801

main81551-16271iAL25..ARL,EUR198305-198801

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-16210iAL20,21198205-198408

main81554-16260iAL25198208-198801

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-16210iAL20..GEN198205-198408

main81555-16250iAL20,21..EUR198205-198408

main81555-16260iAL25198208-198801

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-16210iAL20,21198205-198408

main81557-16260iAL25198208-198801

81558ASHADE, REAR COMBINATION LAMP, NO.2 RH

main81558-16210iAL20,21198205-198408

81558BSHADE, REAR COMBINATION LAMP, NO.3 RH

main81557-16250iAL20,21..EUR198205-198408

main81559-16210iAL20..GEN198205-198408

81558CSHADE, REAR COMBINATION LAMP, NO.4 RH

main81556-16210iAL20..GEN198205-198408

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80134iAL20..GEN198205-198303

main81560-80138iAL20,21..EUR198205-198303

main81560-80139iAL25..GEN198208-198305

sub81560-16261

main81560-80140iAL25..EUR198208-198305

sub81560-16271

main81560-80176iAL25..GEN198305-198801

sub81560-16261

main81560-80177iAL25..ARL,EUR198305-198801

sub81560-16271

main81560-80183iAL20..GEN198303-198408

main81560-80187iAL20,21..EUR198303-198408

81561LENS, REAR COMBINATION LAMP, LH

main81561-16210iAL20..GEN198205-198408

main81561-16250iAL20,21..EUR198205-198303

main81561-16251iAL20,21..EUR198303-198408

main81561-16260iAL25..EUR,GEN198208-198305

main81561-16261iAL25..GEN198305-198801

main81561-16271iAL25..ARL,EUR198305-198801

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-16210iAL20,21198205-198408

main81564-16260iAL25198208-198801

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-16260iAL25198208-198801

main81565-16210iAL20..GEN198205-198408

main81565-16250iAL20,21..EUR198205-198408

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-16210iAL20,21198205-198408

main81557-16260iAL25..EUR,GEN198208-198210

main81567-16260iAL25..EUR198210-198305

81568ASHADE, REAR COMBINATION LAMP, NO.2 LH

main81558-16210iAL20,21198205-198408

81568BSHADE, REAR COMBINATION LAMP, NO.3 LH

main81559-16210iAL20..GEN198205-198408

main81567-16250iAL20,21..EUR198205-198408

81568CSHADE, REAR COMBINATION LAMP, NO.4 LH

main81566-16210iAL20..GEN198205-198408

9017905095

main90179-05095

18 parts on this diagram · 2 diagrams in section
