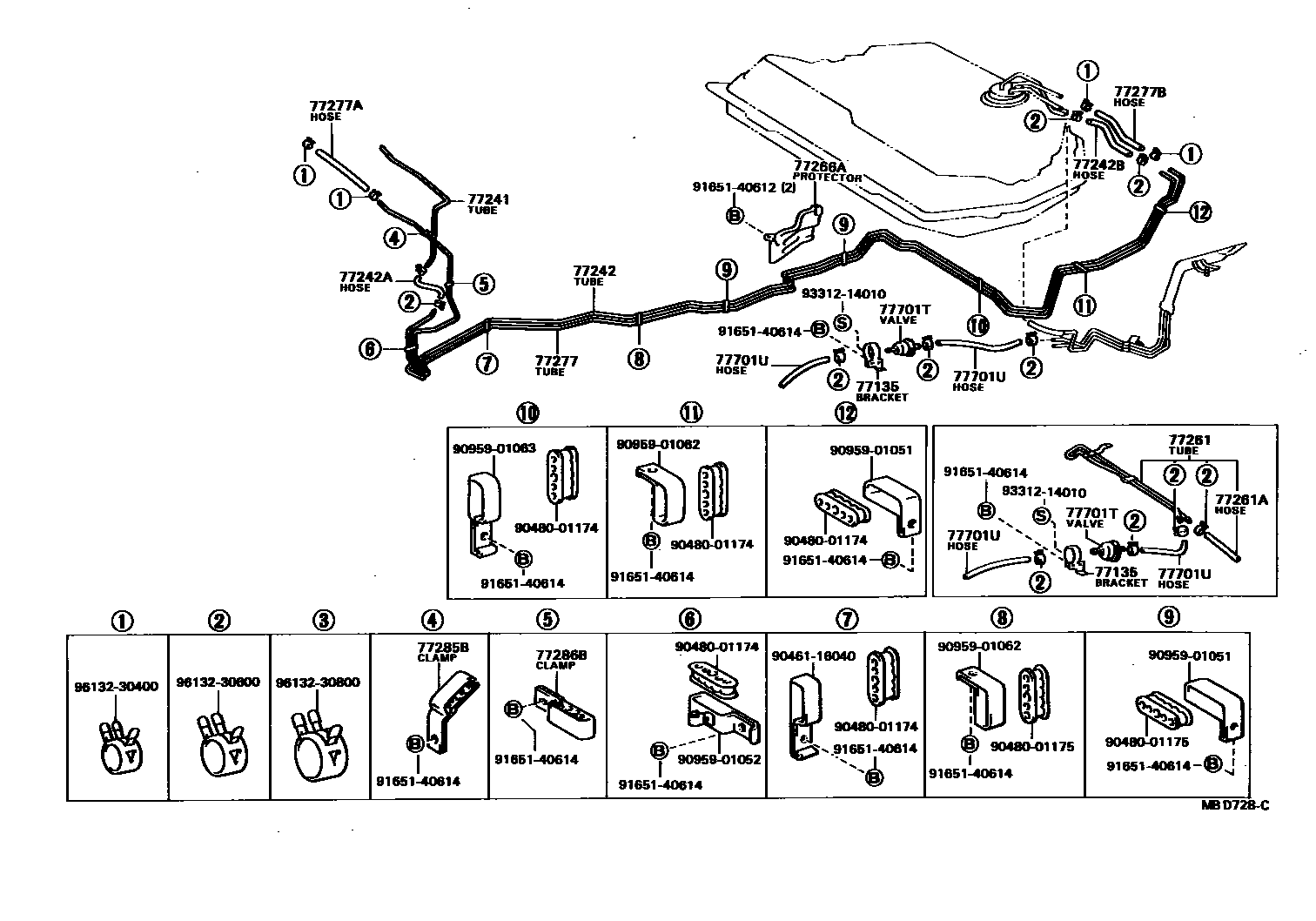

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1

77135BRACKET, CHECK VALVE

main77135-16010iAL20,21198311-198408

main77135-22020iAL20,21198205-198311

main77277-16050iAL25..EUR,GEN198208-198605

main77277-16050iAL25..EUG;AL25..GEN198605-198801

SWEDEN SPEC

77241TUBE, FUEL MAIN, NO.1

main77252-16040iAL20,25..RHD198205-198408

main77252-16050iAL2#..LHD198205-198408

sub77252-16060

main77252-16060iAL25..LHD198408-198801

main77252-16070iAL25..RHD198408-198801

77242TUBE, FUEL MAIN, NO.2

main77251-16030iAL20..RHD198205-198408

main77251-16040iAL20,21..LHD198205-198408

sub77251-16050

main77251-16060iAL25..RHD198208-198408

main77251-16070iAL25..LHD198208-198408

sub77251-16080

main77251-16080iAL25..LHD198408-198801

main77251-16090iAL25..RHD198408-198801

77242AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)

main95332-06020iAL2#198205-198604

L=200

sub95333-06020

main95333-06020iAL25198604-198801

L=200

sub95337-06020

77242BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)

main95332-06020iAL20,21198205-198408

L=200(*H,L=130)

sub95333-06020

main95332-06020iAL25198208-198701

L=200

sub95333-06020

main95333-06020iAL25..LHD198701-198801

L=200

sub95337-06020

77261TUBE SUB-ASSY, FUEL EMISSION

main77028-16010iAL20..EUG198205-198207

main77028-16011iAL20,21..EUR198207-198311

main77028-16012iAL20,21198311-198408

77261AHOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE)

main95332-06020iAL20..EUG198205-198408

L=200(*H,L=130)

sub95333-06020

77266APROTECTOR, FUEL TUBE, NO.1

main77266-16010iAL20..RHD198205-198408

77277TUBE, FUEL RETURN, NO.1

main77255-16030iAL20..RHD198205-198408

main77255-16050iAL25..RHD198208-198408

main77255-16090iAL25..RHD198408-198801

main77256-16020iAL25..LHD198408-198801

main77256-16030iAL2#..LHD198205-198408

sub77256-16020

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main95332-04040iAL20..RHD198205-198408

L=400(*H,L=380)

sub95333-04040

77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)

main95332-04020iAL25..RHD198408-198701

L=200(*H,L=180)

sub95333-04020

main95332-04020iAL20,25..RHD198205-198408

L=200(*H,L=160)

sub95333-04020

main95333-04018iAL25..RHD198701-198801

L=200(*H,L=180)

sub95333-04020

77285BCLAMP, FUEL TUBE W/GROMMET, NO.1

main77285-16030iAL20,25..RHD198205-198801

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-16030iAL20,21198205-198406

main77277-16040iAL25198208-198801

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77286-16030iAL20,25..RHD198205-198801

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10020iAL25..EUG;AL25..GEN198605-198801

SWEDEN SPEC

main90917-10020iAL2#198205-198605

77701UHOSE, FUEL (FOR CHECK VALVE)

main95332-06020iAL25..EUG;AL25..GEN198402-198801

L=200(*H,L=110)

sub95333-06020

main95332-06020iAL20,21198205-198311

L=100(*H,L=80)

sub95333-06020

main95332-06020iAL20..GEN198205-198208

L=200(*H,L=150)

sub95333-06020

main95332-06020iAL25..EUR,GEN198208-198402

L=200(*H,L=180)

sub95333-06020

main95332-06020iAL20,21198208-198408

L=200(*H,L=130)

sub95333-06020

main95332-06020iAL20,21198311-198408

L=200(*H,L=120)

sub95333-06020

9046116040

main90461-16040

9048001174

main90480-01174

9048001175

main90480-01175

9095901051

main90959-01051

9095901052

main90959-01052

9095901062

main90959-01062

9095901063

main90959-01063

9165140612

main91651-40612

9165140614

main91651-40614

9331214010

main93312-14010

9613230400

main96132-30400

9613230600

main96132-30600

9613230800

main96132-30800

29 parts on this diagram · 9 diagrams in section
