E
EPC Data

REAR SEAT & SEAT TRACK

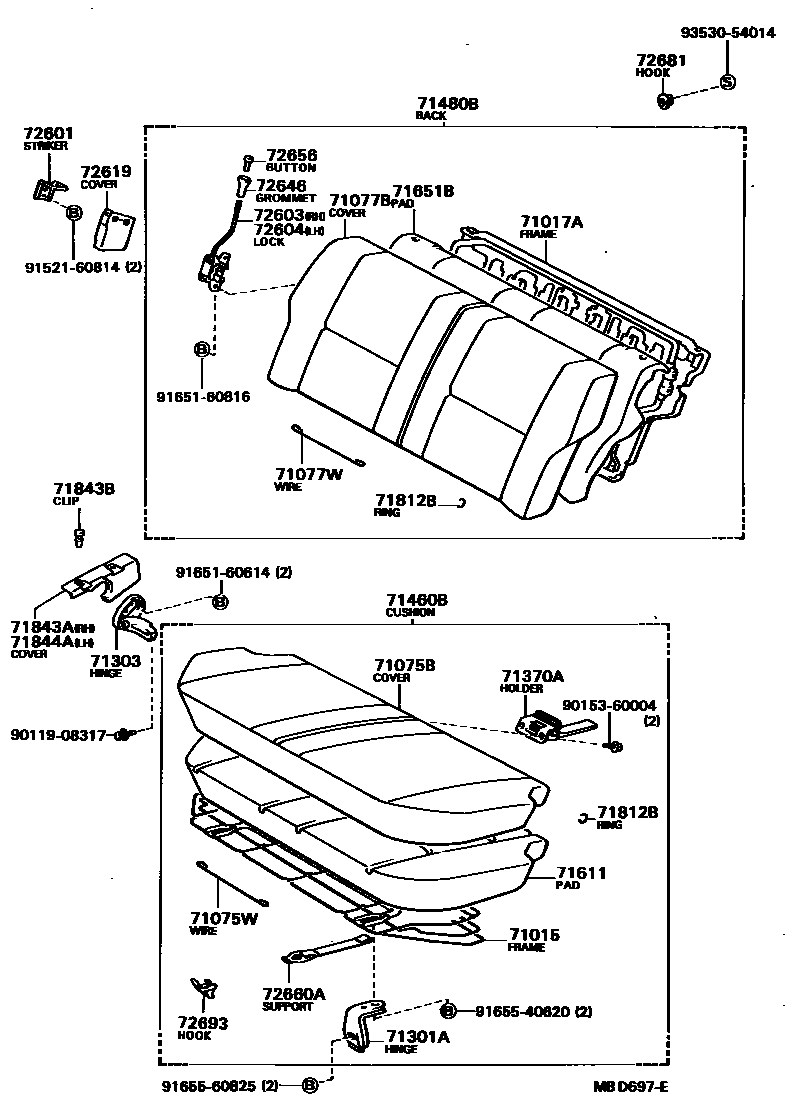

Parts diagram
71015FRAME SUB-ASSY, REAR SEAT CUSHION
main71015-12250i198205-198408
W/*FCRS
main71015-16030i198205-198408
W/*FRS
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-12250i198308-198408
main71017-16030i198205-198308
main71017-16070i198208-198801
71017AFRAME SUB-ASSY, REAR SEATBACK
main71017-16080i198205-198408
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71065-16020-02i198205-198302
W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71065-16020-03i198205-198302
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71065-16020-06i198205-198302
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71065-16021-02i198302-198308
W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71065-16021-03i198302-198308
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71065-16021-06i198302-198308
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71065-16022-02i198308-198408
W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71065-16022-03i198308-198408
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71065-16022-06i198308-198408
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71065-16040i198302-198304
EUROPE CAMPAIGN
main71065-16040-03i198403-198407
GERMAN/U.K.SPECIAL SPEC,GRAY,GRAY,TRIM1#
main71065-16040-06i198403-198407
GERMAN SPECIAL SPEC,BROWN,BROWN,TRIM4#
main71065-16071-03i198606-198801
FB-D,GRAY,GRAY,TRIM2#
main71065-16120-03i198508-198605
W/*SPS,FB,GRAY,GRAY,TRIM1#
main71065-16120-05i198508-198605
FB,BEIGE,BEIGE,TRIM4#
main71065-16380-03i198605-198801
FB,GRAY,GRAY,TRIM2#
main71065-16380-05i198605-198801
FB,BEIGE,BEIGE,TRIM4#
main71065-16390-03i198605-198801
FB,GRAY,GRAY,TRIM2#
main71065-16390-05i198605-198801
FB,BEIGE,BEIGE,TRIM4#
main71075-16650-02i198205-198302
PF,DARK WINE,RED/MAROON,TRIM3#
main71075-16650-03i198205-198302
PF,GRAY,GRAY,TRIM1#
main71075-16650-06i198205-198302
PF,BROWN,BROWN,TRIM4#
main71075-16651-02i198302-198308
PF,DARK WINE,RED/MAROON,TRIM3#
main71075-16651-03i198302-198308
PF,GRAY,GRAY,TRIM1#
main71075-16651-06i198302-198308
PF,BROWN,BROWN,TRIM4#
main71075-16652-02i198308-198408
PF,DARK WINE,RED/MAROON,TRIM3#
main71075-16652-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71075-16652-05i198308-198408
PF,BEIGE,BEIGE,TRIM4#
main71075-16710-02i198205-198302
PF,DARK WINE,RED/MAROON,TRIM3#
main71075-16710-03i198205-198302
PF,GRAY,GRAY,TRIM1#
main71075-16710-06i198205-198302
PF,BROWN,BROWN,TRIM4#
main71075-16711-02i198302-198308
PF,DARK WINE,RED/MAROON,TRIM3#
main71075-16711-03i198302-198308
PF,GRAY,GRAY,TRIM1#
main71075-16711-06i198302-198308
PF,BROWN,BROWN,TRIM4#
main71075-16712-02i198308-198408
PF,DARK WINE,RED/MAROON,TRIM3#
main71075-16712-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71075-16712-05i198308-198408
PF,BEIGE,BEIGE,TRIM4#
main71075-16730-02i198205-198302
W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71075-16730-03i198205-198302
W/*FRS,FB-D,GRAY,GRAY,TRIM1#
main71075-16730-06i198205-198302
W/*FRS,FB-D,BROWN,BROWN,TRIM4#
main71075-16731-02i198302-198308
W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71075-16731-03i198302-198308
W/*FRS,FB-D,GRAY,GRAY,TRIM1#
main71075-16731-06i198302-198308
W/*FRS,FB-D,BROWN,BROWN,TRIM4#
main71075-16732-02i198308-198408
W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71075-16732-03i198308-198408
W/*FRS,FB-D,GRAY,GRAY,TRIM1#
main71075-16732-06i198308-198408
W/*FRS,FB-D,BROWN,BROWN,TRIM4#
main71075-16740-02i198205-198302
W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3#
main71075-16740-03i198205-198302
W/*FRS,FB-B,GRAY,GRAY,TRIM1#
main71075-16740-06i198205-198302
W/*FRS,FB-B,BROWN,BROWN,TRIM4#
main71075-16741-02i198302-198408
W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3#
main71075-16741-03i198302-198408
W/*FRS,FB-B,GRAY,GRAY,TRIM1#
main71075-16741-06i198302-198408
W/*FRS,FB-B,BROWN,BROWN,TRIM4#
main71075-16810-03i198308-198408
W/*FCRS,FB-B,GRAY,GRAY,TRIM1#
main71075-16810-06i198308-198408
W/*FCRS,FB-B,GRAY,BROWN,TRIM1#
main71075-16811-03i198408-198508
W/*SPS,FB,GRAY,GRAY,TRIM1#
main71075-16811-05i198408-198508
FB,BEIGE,BEIGE,TRIM4#
main71075-16812-03i198605-198801
W/*SPS,FB,GRAY,GRAY,TRIM2#
main71075-16812-05i198605-198801
W/*SPS,FB,BEIGE,BEIGE,TRIM4#
main71075-16840-03i198208-198302
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71075-16840-06i198208-198302
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71075-16841-03i198302-198308
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71075-16841-06i198302-198308
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71075-16842-03i198308-198408
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71075-16842-05i198408-198508
FB,BEIGE,BEIGE,TRIM4#
main71075-16842-06i198308-198408
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71075-16842-13i198408-198508
FB,GRAY,GRAY,TRIM1#
main71075-16843-03i198508-198605
FB,GRAY,GRAY,TRIM1#
main71075-16843-05i198508-198605
FB,BEIGE,BEIGE,TRIM4#
main71075-16844-03i198605-198801
FB,GRAY,GRAY,TRIM2#
main71075-16844-05i198605-198801
FB,BEIGE,BEIGE,TRIM4#
main71075-16850-03i198208-198302
W/*FCRS,FB-C,GRAY,GRAY,TRIM1#
main71075-16850-06i198208-198302
W/*FCRS,FB-C,BROWN,BROWN,TRIM4#
main71075-16851-03i198302-198408
W/*FCRS,FB-C,GRAY,GRAY,TRIM1#
main71075-16851-06i198302-198408
W/*FCRS,FB-C,BROWN,BROWN,TRIM4#
main71075-16852-03i198408-198605
FB-C,GRAY,GRAY,TRIM1#
main71075-16852-05i198408-198605
FB-C,BEIGE,BEIGE,TRIM4#
main71075-16854-03i198605-198801
FB-C,GRAY,GRAY,TRIM2#
main71075-16854-05i198605-198801
FB-C,BEIGE,BEIGE,TRIM4#
main71075-16860-03i198208-198302
PF,GRAY,GRAY,TRIM1#
main71075-16860-06i198208-198302
PF,BROWN,BROWN,TRIM4#
main71075-16861-03i198302-198308
PF,GRAY,GRAY,TRIM1#
main71075-16861-06i198302-198308
PF,BROWN,BROWN,TRIM4#
main71075-16862-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71075-16862-05i198308-198408
PF,BEIGE,BEIGE,TRIM4#
main71075-16862-13i198408-198605
PF,GRAY,GRAY,TRIM1#
main71075-16862-15i198408-198605
PF,BEIGE,BEIGE,TRIM4#
main71075-16863-03i198605-198801
PF,GRAY,GRAY,TRIM2#
main71075-16863-05i198605-198801
PF,BEIGE,BEIGE,TRIM4#
71075WWIRE, REAR SEAT CUSHION COVER
main90580-20015×3i198205-198408
L=900
main90580-20097×2i198302-198508
L=1050
main90580-20116i198208-198508
L=960
main90580-20177×2i198208-198302
L=920
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-16490-02i198205-198302
PF,DARK WINE,RED/MAROON,TRIM3#
main71077-16490-03i198205-198302
PF,GRAY,GRAY,TRIM1#
main71077-16490-06i198302-198302
PF,BROWN,BROWN,TRIM4#
main71077-16491-02i198302-198308
PF,DARK WINE,RED/MAROON,TRIM3#
main71077-16491-03i198302-198308
PF,GRAY,GRAY,TRIM1#
main71077-16491-06i198302-198308
PF,BROWN,BROWN,TRIM4#
main71077-16492-02i198308-198408
PF,DARK WINE,RED/MAROON,TRIM3#
main71077-16492-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71077-16492-05i198308-198408
PF,BEIGE,BEIGE,TRIM4#
main71077-16550-02i198205-198302
PF,DARK WINE,RED/MAROON,TRIM3#
sub71077-16551
main71077-16550-03i198205-198302
PF,GRAY,GRAY,TRIM1#
sub71077-16551
main71077-16550-06i198205-198302
PF,BROWN,BROWN,TRIM4#
sub71077-16551
main71077-16650-02i198205-198302
FB-D,DARK WINE,RED/MAROON,TRIM3#
main71077-16650-03i198205-198302
FB-D,GRAY,GRAY,TRIM1#
main71077-16650-06i198205-198302
FB-D,BROWN,BROWN,TRIM4#
main71077-16651-02i198302-198308
FB-D,DARK WINE,RED/MAROON,TRIM3#
main71077-16651-03i198302-198308
FB-D,GRAY,GRAY,TRIM1#
main71077-16651-06i198302-198308
FB-D,BROWN,BROWN,TRIM4#
main71077-16652-02i198308-198408
FB-D,DARK WINE,RED/MAROON,TRIM3#
main71077-16652-03i198308-198408
FB-D,GRAY,GRAY,TRIM1#
main71077-16652-06i198308-198408
FB-D,BROWN,BROWN,TRIM4#
71077WWIRE, REAR SEATBACK COVER
main90580-20011×2i198208-198508
L=360
main90580-20021×2i198302-198408
L=440
main90580-20032×2i198208-198408
L=320
main90580-20107i198205-198208
L=1180
main90580-20109i198205-198208
L=330
main90580-20126×2i198208-198508
L=380
main90580-20127×2i198205-198302
L=430
main90580-20165×2i198205-198302
L=470
main90580-20171×2i198302-198408
L=480
main90580-20176i198205-198408
L=830
main90580-26008×2i198208-198508
L=550
main90580-26012i198208-198408
L=570
main90580-26013i198205-198208
L=600
main90580-26014i198208-198408
L=1180
71301AHINGE SUB-ASSY, REAR SEAT CUSHION
main71301-16010-02×2i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main71301-16010-03×2i198205-198408
GRAY,GRAY,TRIM1#
main71301-16010-06×2i198205-198408
BROWN,BROWN,TRIM4#
71303HINGE SUB-ASSY, REAR SEATBACK
main71303-16010×2i198205-198408
main71303-16020i198208-198801
RH
main71304-16020i198208-198801
LH
71370AHOLDER ASSY, REAR SEAT CUSHION
main71370-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub71370-16020
main71370-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub71370-16020
main71370-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub71370-16020
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-16650-02i198205-198302
PF,DARK WINE,RED/MAROON,TRIM3#
main71460-16650-03i198205-198302
PF,GRAY,GRAY,TRIM1#
main71460-16650-06i198205-198302
PF,BROWN,BROWN,TRIM4#
main71460-16651-02i198302-198308
PF,DARK WINE,RED/MAROON,TRIM3#
main71460-16651-03i198302-198308
PF,GRAY,GRAY,TRIM1#
main71460-16651-06i198302-198308
PF,BROWN,BROWN,TRIM4#
main71460-16652-02i198308-198408
PF,DARK WINE,RED/MAROON,TRIM3#
main71460-16652-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71460-16652-06i198308-198408
PF,BROWN,BROWN,TRIM4#
main71460-16720-02i198205-198302
W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71460-16720-03i198205-198302
W/*FRS,FB-D,GRAY,GRAY,TRIM1#
main71460-16720-06i198205-198302
W/*FRS,FB-D,BROWN,BROWN,TRIM4#
main71460-16721-02i198302-198308
W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71460-16721-03i198302-198308
W/*FRS,FB-D,GRAY,GRAY,TRIM1#
main71460-16721-06i198302-198308
W/*FRS,FB-D,BROWN,BROWN,TRIM4#
main71460-16722-02i198308-198408
W/*FRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71460-16722-03i198308-198408
W/*FRS,FB-D,GRAY,GRAY,TRIM1#
main71460-16722-06i198308-198408
W/*FRS,FB-D,BROWN,BROWN,TRIM4#
main71460-16830-03i198308-198408
W/*SPS,FB,GRAY,GRAY,TRIM1#
main71460-16830-06i198308-198408
W/*SPS,FB,BROWN,BROWN,TRIM4#
main71460-16831-03i198408-198508
W/*SPS,FB,GRAY,GRAY,TRIM1#
main71460-16831-05i198408-198508
FB,BEIGE,BEIGE,TRIM4#
main71460-16840-03i198208-198302
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71460-16840-06i198208-198302
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71460-16841-03i198302-198308
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71460-16841-06i198302-198308
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71460-16842-03i198308-198408
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71460-16842-05i198408-198508
FB,BEIGE,BEIGE,TRIM4#
main71460-16842-06i198308-198408
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71460-16842-13i198408-198508
FB,GRAY,GRAY,TRIM1#
main71460-16844-03i198508-198605
FB,GRAY,GRAY,TRIM1#
main71460-16844-05i198508-198605
FB,BEIGE,BEIGE,TRIM4#
main71460-16845-03i198605-198801
FB,GRAY,GRAY,TRIM2#
main71460-16845-05i198605-198801
FB,BEIGE,BEIGE,TRIM4#
main71460-16850-03i198208-198302
W/*FCRS,FB-C,GRAY,GRAY,TRIM1#
main71460-16850-06i198208-198302
W/*FCRS,FB-C,BROWN,BROWN,TRIM4#
main71460-16851-03i198302-198408
W/*FCRS,FB-C,GRAY,GRAY,TRIM1#
main71460-16851-06i198302-198408
W/*FCRS,FB-C,BROWN,BROWN,TRIM4#
main71460-16852-03i198408-198605
FB-C,GRAY,GRAY,TRIM1#
main71460-16852-05i198408-198605
FB-C,BEIGE,BEIGE,TRIM4#
main71460-16854-03i198605-198801
FB-C,GRAY,GRAY,TRIM2#
main71460-16854-05i198605-198801
FB-C,BEIGE,BEIGE,TRIM4#
main71460-16860-03i198208-198302
PF,GRAY,GRAY,TRIM1#
main71460-16860-06i198208-198302
PF,BROWN,BROWN,TRIM4#
main71460-16861-03i198302-198308
PF,GRAY,GRAY,TRIM1#
main71460-16861-06i198302-198308
PF,BROWN,BROWN,TRIM4#
main71460-16862-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71460-16862-05i198308-198408
PF,BEIGE,BEIGE,TRIM4#
main71460-16862-13i198408-198605
PF,GRAY,GRAY,TRIM1#
main71460-16862-15i198408-198605
PF,GRAY,BEIGE,TRIM1#
main71460-16864-03i198605-198801
PF,GRAY,GRAY,TRIM2#
main71460-16864-05i198605-198801
PF,BEIGE,BEIGE,TRIM4#
main71460-16870-02i198205-198302
W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3#
main71460-16870-03i198205-198302
W/*FRS,FB-B,GRAY,GRAY,TRIM1#
main71460-16870-06i198205-198302
W/*FRS,FB-B,BROWN,BROWN,TRIM4#
main71460-16871-02i198302-198408
W/*FRS,FB-B,DARK WINE,RED/MAROON,TRIM3#
main71460-16871-03i198302-198408
W/*FRS,FB-B,GRAY,GRAY,TRIM1#
main71460-16871-06i198302-198408
W/*FRS,FB-B,BROWN,BROWN,TRIM4#
main71560-16020-02i198205-198302
W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71560-16020-03i198205-198302
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71560-16020-06i198205-198302
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71560-16021-02i198302-198308
W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71560-16021-03i198302-198308
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71560-16021-06i198302-198308
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71560-16022-02i198308-198408
W/*FCRS,FB-D,DARK WINE,RED/MAROON,TRIM3#
main71560-16022-03i198308-198408
W/*FCRS,FB-D,GRAY,GRAY,TRIM1#
main71560-16022-06i198308-198408
W/*FCRS,FB-D,BROWN,BROWN,TRIM4#
main71560-16030-02i198205-198302
PF,DARK WINE,RED/MAROON,TRIM3#
main71560-16030-03i198205-198302
PF,GRAY,GRAY,TRIM1#
main71560-16030-06i198205-198302
PF,BROWN,BROWN,TRIM4#
main71560-16031-02i198302-198308
PF,DARK WINE,RED/MAROON,TRIM3#
main71560-16031-03i198302-198308
PF,GRAY,GRAY,TRIM1#
main71560-16031-06i198302-198308
PF,BROWN,BROWN,TRIM4#
main71560-16032-02i198308-198408
PF,DARK WINE,RED/MAROON,TRIM3#
main71560-16032-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71560-16032-05i198308-198408
PF,BEIGE,BEIGE,TRIM4#
main71560-16060-02i198304-198308
*FS,FB,DARK WINE,RED/MAROON,TRIM3#
main71560-16060-03i198304-198308
*FS,FB,GRAY,GRAY,TRIM1#
main71560-16060-06i198304-198308
*FS,FB,BROWN,BROWN,TRIM4#
main71560-16061-02i198308-198408
*FS,FB,DARK WINE,RED/MAROON,TRIM3#
main71560-16061-03i198308-198408
*FS,FB,GRAY,GRAY,TRIM1#
main71560-16061-06i198308-198408
*FS,FB,BROWN,BROWN,TRIM4#
main71560-16070-02i198304-198408
*FS,FB,DARK WINE,RED/MAROON,TRIM3#
main71560-16070-03i198304-198408
*FS,FB,GRAY,GRAY,TRIM1#
main71560-16070-06i198304-198408
*FS,FB,BROWN,BROWN,TRIM4#
main71560-16080-03i198304-198308
*FS,FB,GRAY,GRAY,TRIM1#
main71560-16080-06i198304-198308
*FS,FB,BROWN,BROWN,TRIM4#
main71560-16081-03i198308-198408
*FS,FB,GRAY,GRAY,TRIM1#
main71560-16081-05i198408-198508
*FS,FB,BEIGE,BEIGE,TRIM4#
main71560-16081-06i198308-198408
*FS,FB,BROWN,BROWN,TRIM4#
main71560-16081-13i198408-198508
*FS,FB,GRAY,GRAY,TRIM1#
main71560-16083-03i198508-198605
*FS,FB,GRAY,GRAY,TRIM1#
main71560-16083-05i198508-198605
*FS,FB,BEIGE,BEIGE,TRIM4#
main71560-16084-03i198605-198801
*FS,FB,GRAY,GRAY,TRIM2#
main71560-16084-05i198605-198801
*FS,FB,BEIGE,BEIGE,TRIM4#
main71560-16160-03i198508-198605
W/*SPS,FB,GRAY,GRAY,TRIM1#
main71560-16160-05i198508-198605
FB,BEIGE,BEIGE,TRIM4#
main71560-16161-03i198605-198801
W/*SPS,FB,GRAY,GRAY,TRIM2#
main71560-16161-05i198605-198801
W/*SPS,FB,BEIGE,BEIGE,TRIM4#
main71560-16380-03i198606-198801
FB-D,GRAY,GRAY,TRIM2#
main71560-16430-03i198605-198801
FB,GRAY,GRAY,TRIM2#
main71560-16430-05i198605-198801
FB,BEIGE,BEIGE,TRIM4#
main71560-16440-03i198605-198801
FB,GRAY,GRAY,TRIM2#
main71560-16440-05i198605-198801
FB,BEIGE,BEIGE,TRIM4#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-16560-02i198205-198302
PF,DARK WINE,RED/MAROON,TRIM3#
main71480-16560-03i198302-198302
PF,GRAY,GRAY,TRIM1#
main71480-16560-06i198205-198302
PF,BROWN,BROWN,TRIM4#
main71480-16561-02i198302-198308
PF,DARK WINE,RED/MAROON,TRIM3#
main71480-16561-03i198302-198308
PF,GRAY,GRAY,TRIM1#
main71480-16561-06i198302-198308
PF,BROWN,BROWN,TRIM4#
main71480-16562-02i198308-198408
PF,DARK WINE,RED/MAROON,TRIM3#
main71480-16562-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71480-16562-05i198308-198408
PF,BEIGE,BEIGE,TRIM4#
main71480-16580-02i198205-198302
FB-D,DARK WINE,RED/MAROON,TRIM3#
main71480-16580-03i198205-198302
FB-D,GRAY,GRAY,TRIM1#
main71480-16580-06i198205-198302
FB-D,BROWN,BROWN,TRIM4#
main71480-16581-02i198302-198308
FB-D,DARK WINE,RED/MAROON,TRIM3#
main71480-16581-03i198302-198308
FB-D,GRAY,GRAY,TRIM1#
main71480-16581-06i198302-198308
FB-D,BROWN,BROWN,TRIM4#
main71480-16582-02i198308-198408
FB-D,DARK WINE,RED/MAROON,TRIM3#
main71480-16582-03i198308-198408
FB-D,GRAY,GRAY,TRIM1#
main71480-16582-06i198308-198408
FB-D,BROWN,BROWN,TRIM4#
main71480-16790-02i198205-198302
PF,DARK WINE,RED/MAROON,TRIM3#
main71480-16790-03i198205-198302
PF,GRAY,GRAY,TRIM1#
main71480-16790-06i198205-198302
PF,BROWN,BROWN,TRIM4#
71611PAD, REAR SEAT CUSHION
main71611-16050i198205-198408
main71611-16100i198304-198408
*FS
main71611-16120i198304-198408
*FS
main71611-16140i198208-198408
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71651-16090i198205-198408
sub71651-16130
71812BCLIP(FOR REAR SEAT CUSHION COVER)
main90468-18071i198205-198801
sub90468-18008
71843ACOVER, REAR SEAT RECLINING, NO.2 RH
main71843-16020-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main71843-16020-03i198205-198408
GRAY,GRAY,TRIM1#
main71843-16020-06i198205-198408
BROWN,BROWN,TRIM4#
71843BCLIP, REAR SEAT RECLINING COVER
main90467-09144-02×4i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main90467-09144-03×4i198205-198408
GRAY,GRAY,TRIM1#
main90467-09144-06×4i198205-198408
BROWN,BROWN,TRIM4#
71844ACOVER, REAR SEAT RECLINING, NO.2 LH
main71844-16020-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main71844-16020-03i198205-198408
GRAY,GRAY,TRIM1#
main71844-16020-06i198205-198408
BROWN,BROWN,TRIM4#
72601STRIKER SUB-ASSY, REAR SEAT LOCK
main72601-16040×2i198205-198408
main72601-16050×2i198208-198801
72603LOCK SUB-ASSY, REAR SEATBACK, RH
main72630-16060i198205-198408
main72630-16080i198208-198801
72604LOCK SUB-ASSY, REAR SEATBACK, LH
main72640-16040i198205-198408
main72640-16060i198208-198801
72619COVER, REAR SEATBACK LOCK STRIKER
main72615-16020-02i198205-198408
RH,DARK WINE,DARK WINE,TRIM3#
main72615-16020-03i198205-198408
RH,GRAY,GRAY,TRIM1#
main72615-16020-06i198205-198408
RH,BROWN,BROWN,TRIM4#
main72615-16030-01×2i198605-198801
BLACK,BLACK,TRIM2#
main72615-16030-05×2i198208-198605
BEIGE,BEIGE,TRIM4#
main72615-16030-13×2i198208-198605
GRAY,GRAY,TRIM1#
main72615-16030-15×2i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main72616-16010-02i198205-198408
LH,DARK WINE,DARK WINE,TRIM3#
main72616-16010-03i198205-198408
LH,GRAY,GRAY,TRIM1#
main72616-16010-06i198205-198408
LH,BROWN,BROWN,TRIM4#
72646GROMMET, REAR SEATBACK STOP BUTTON
main72655-20020-02×2i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub72646-20050
main72655-20020-03×2i198205-198408
GRAY,GRAY,TRIM1#
sub72646-20050
main72655-20020-11×2i198605-198801
BLACK,BLACK,TRIM2#
sub72646-20050
main72655-20020-23×2i198408-198605
GRAY,GRAY,TRIM1#
sub72646-20050
main72655-20020-30×2i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub72646-20050
main72655-20020-36×2i198205-198408
BROWN,BROWN,TRIM4#
sub72646-20050
main72655-20020-55×2i198408-198605
BEIGE,BEIGE,TRIM4#
sub72646-20050
72656BUTTON, REAR SEATBACK STOP RELEASE
main72656-20010-02×2i198205-198408
DARK WINE,DARK WINE,TRIM3#
main72656-20010-03×2i198205-198408
GRAY,GRAY,TRIM1#
main72656-20010-11×2i198605-198801
BLACK,BLACK,TRIM2#
main72656-20010-23×2i198408-198605
GRAY,GRAY,TRIM1#
main72656-20010-36×2i198205-198408
BROWN,BROWN,TRIM4#
main72656-20010-45×2i198408-198605
BEIGE,BEIGE,TRIM4#
main72656-20010-55×2i198605-198801
BEIGE,DARK BEIGE,TRIM4#
72660ASUPPORT ASSY, REAR SEAT CUSHION
main72660-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main72660-16010-03i198205-198408
GRAY,GRAY,TRIM1#
main72660-16010-06i198205-198408
BROWN,BROWN,TRIM4#
72681HOOK, REAR SEATBACK LOCK, LOWER
main72681-16010-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main72681-16010-03i198205-198408
GRAY,GRAY,TRIM1#
main72681-16010-06i198205-198408
BROWN,BROWN,TRIM4#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12010×2i198208-198801
main72693-16010×2i198205-198408
9011908317
main90119-08317
9015360004
main90153-60004
9152160814
main91521-60814
9165160614
main91651-60614
9165160816
main91651-60816
9165540620
main91655-40620
9165560825
main91655-60825
9353054014
main93530-54014

35 parts on this diagram · 3 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
