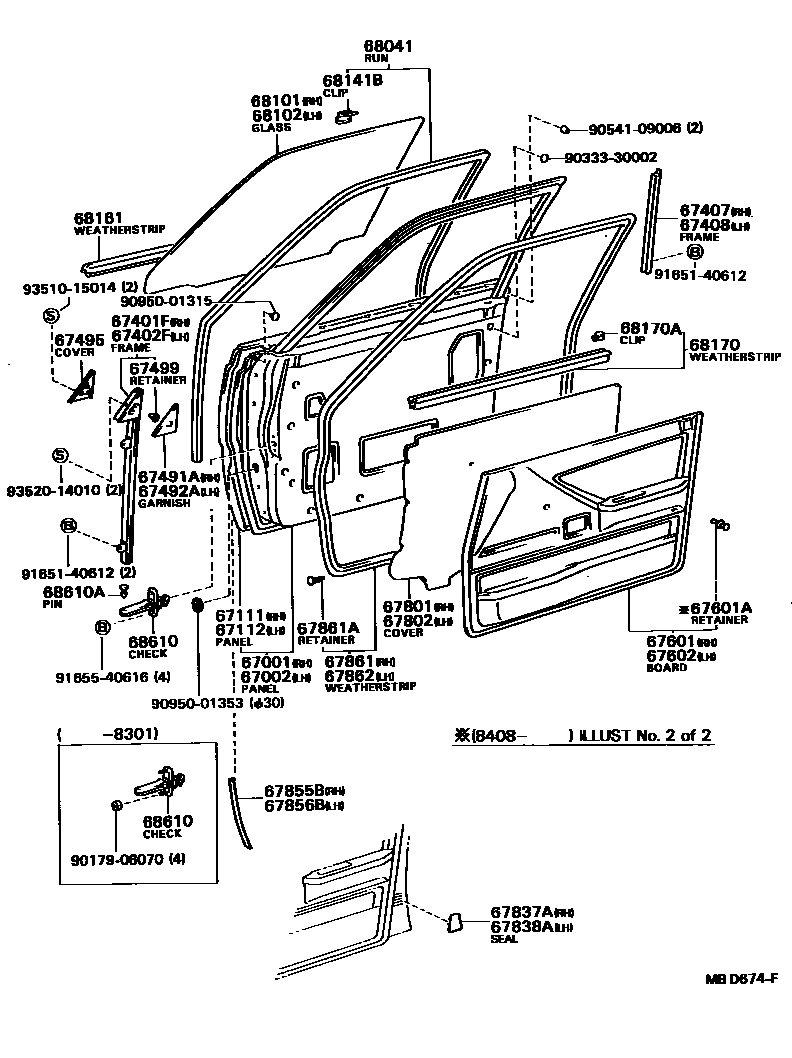

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-16171iAL25..ARL198705-198801

main67001-16220iAL25;AL20,21..5DS198205-198408

sub67001-16221

sub90950-01353

main67001-16221iAL25198408-198801

main67001-16240iAL20,21..3DS198205-198408

sub67001-16241

sub90950-01353

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-16131iAL25..ARL198705-198801

main67002-16180iAL25;AL20,21..5DS198205-198408

sub67002-16181

sub90950-01353

main67002-16181iAL25198408-198801

main67002-16200iAL20,21..3DS198205-198408

sub67002-16201

sub90950-01353

67111PANEL, FRONT DOOR, OUTER RH

main67111-16100iAL20,21..3DS198205-198408

main67111-16120iAL25;AL20,21..5DS198205-198801

67112PANEL, FRONT DOOR, OUTER LH

main67112-16080iAL20,21..3DS198205-198408

main67112-16100iAL25;AL20,21..5DS198205-198801

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-16030iAL20,21..3DS198205-198408

sub67401-16120

main67401-16050iAL25;AL20,21..5DS198205-198408

main67401-16070iAL25198408-198801

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-16030iAL20,21..3DS198205-198408

sub67402-16120

main67402-16050iAL25;AL20,21..5DS198205-198408

main67402-16070iAL25198408-198801

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-16020iAL20,21..3DS198205-198408

main67403-16030iAL25;AL20,21..5DS198205-198801

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-16020iAL20,21..3DS198205-198408

main67404-16030iAL25;AL20,21..5DS198205-198801

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-16010iAL20,21..3DS198205-198408

W/O HOLE

main67491-16020iAL20,21..3DS..(DLX,GL)198205-198408

W/HOLE

main67491-16030iAL25;AL20,21..5DS198205-198801

W/O HOLE

main67491-16040iAL25;AL20,21..5DS198205-198801

W/HOLE

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-16010iAL20,21..3DS198205-198408

W/O HOLE

main67492-16020iAL20,21..3DS..(DLX,GL)198205-198408

W/HOLE

main67492-16030iAL25;AL20,21..5DS198205-198801

W/O HOLE

main67492-16040iAL25;AL20,21..5DS198205-198801

W/HOLE

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-16010iAL20..3DS..GEN;AL20,21..3DS..LHD..EUR198205-198408

RH

main67495-16020iAL20,21..5DS..LHD;AL20..5DS..RHD..GEN198205-198801

RH

main67496-16010iAL20..3DS..RHD;AL20..3DS..LHD..GEN198205-198408

LH

main67496-16020iAL25..ARL,GEN198205-198801

LH

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iAL2#198205-198801

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-16370-02iAL20,21..3DS..(DLX,STD)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67610-16370-03iAL20,21..3DS..(DLX,STD)198205-198408

GRAY,GRAY,TRIM1#

main67610-16370-06iAL20,21..3DS..(DLX,STD)198205-198408

BROWN,BROWN,TRIM4#

main67610-16380-02iAL20,21..3DS..GL198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67610-16380-03iAL20,21..3DS..GL198205-198408

GRAY,GRAY,TRIM1#

main67610-16380-06iAL20,21..3DS..GL198205-198408

BROWN,BROWN,TRIM4#

main67610-16400-02iAL20,21..5DS..GL198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67610-16400-03iAL20,21..5DS..GL198205-198408

GRAY,GRAY,TRIM1#

main67610-16400-03iAL25..EUR198208-198408

W/FULL FB SEAT,GRAY,GRAY,TRIM1#

main67610-16400-06iAL25..SR5198205-198408

BROWN,BROWN,TRIM4#

main67610-16400-06iAL25..EUR198208-198408

W/FULL FB SEAT,BROWN,BROWN,TRIM4#

main67610-16420-02iAL20,21..5DS..DLX198205-198408

DARK WINE,DARK WINE,TRIM3#

sub67610-16420

main67610-16420-03iAL25..DLX;AL20,21..5DS..DLX198205-198408

GRAY,GRAY,TRIM1#

sub67610-16420

main67610-16420-06iAL25..DLX;AL20,21..5DS..DLX198205-198408

BROWN,BROWN,TRIM4#

sub67610-16420

main67610-16530-03iAL25..GEN198408-198605

GRAY,GRAY,TRIM1#

sub67610-16530

main67610-16530-03iAL25..GEN198408-198605

W/*SPS,GRAY,GRAY,TRIM1#

sub67610-16530

main67610-16530-05iAL25..SR5198408-198605

W/*SPS,BEIGE,BEIGE,TRIM4#

sub67610-16530

main67610-16530-05iAL25..SR5198408-198605

BEIGE,BEIGE,TRIM4#

sub67610-16530

main67610-16560-01iAL25..GEN198605-198801

PF SEAT,BLACK,BLACK,TRIM2#

sub67610-16560

main67610-16560-03iAL25..DLX198408-198605

GRAY,GRAY,TRIM1#

sub67610-16560

main67610-16560-05iAL25..DLX198408-198605

BEIGE,BEIGE,TRIM4#

sub67610-16560

main67610-16560-15iAL25..GEN198605-198801

PF SEAT,BEIGE,DARK BEIGE,TRIM4#

sub67610-16560

main67610-16570-03iAL25..EUR198408-198605

CASUAL SPEC(FB-C),GRAY,GRAY,TRIM1#

main67610-16570-05iAL25..EUR198408-198605

CASUAL SPEC(FB-C),BEIGE,BEIGE,TRIM4#

main67610-16700-03iAL25..GEN198605-198801

FB SEAT,W/*SPS,GRAY,GRAY,TRIM2#

main67610-16700-03iAL25..SR5198605-198801

FB SEAT,GRAY,GRAY,TRIM2#

main67610-16700-05iAL25..SR5198605-198801

FB SEAT,BEIGE,BEIGE,TRIM4#

main67610-16700-05iAL25..SR5198605-198801

FB SEAT,W/*SPS,BEIGE,BEIGE,TRIM4#

main67610-16740-03iAL25..EUR198606-198801

FB-D SEAT,GRAY,GRAY,TRIM2#

main67610-16770-03iAL25..EUR198605-198801

FB-C SEAT,GRAY,GRAY,TRIM2#

main67610-16770-05iAL25..EUR198605-198801

FB-C SEAT,BEIGE,BEIGE,TRIM4#

main67610-16800-01iAL25..DLX198605-198801

FB SEAT,BLACK,BLACK,TRIM2#

main67610-16800-05iAL25..DLX198605-198801

FB SEAT,BEIGE,BEIGE,TRIM4#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12020iAL25198408-198801

TYPE A

main67771-16020iAL2#198205-198408

main67771-23010iAL25..SR5198408-198801

CASUAL SPEC OR W/*SPS,TYPE C

main67771-23010iAL25..EUR,GEN198408-198801

TYPE C

main67771-30060iAL25..SR5198408-198801

TYPE B

main67771-30060iAL25..SR5198408-198801

CASUAL SPEC OR W/*SPS,TYPE B

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-16250-02iAL20,21..3DS..(DLX,STD)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67620-16250-03iAL20,21..3DS..(DLX,STD)198205-198408

GRAY,GRAY,TRIM1#

main67620-16250-06iAL20,21..3DS..(DLX,STD)198205-198408

BROWN,BROWN,TRIM4#

main67620-16260-02iAL20,21..3DS..GL198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67620-16260-03iAL20,21..3DS..GL198205-198408

GRAY,GRAY,TRIM1#

main67620-16260-06iAL20,21..3DS..GL198205-198408

BROWN,BROWN,TRIM4#

main67620-16280-02iAL20,21..5DS..GL198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67620-16280-03iAL25..EUR198208-198408

W/FULL FB SEAT,GRAY,GRAY,TRIM1#

main67620-16280-03iAL20,21..5DS..GL198205-198408

GRAY,GRAY,TRIM1#

main67620-16280-06iAL25..SR5198205-198408

BROWN,BROWN,TRIM4#

main67620-16280-06iAL25..EUR198208-198408

W/FULL FB SEAT,BROWN,BROWN,TRIM4#

main67620-16300-02iAL20,21..5DS..DLX198205-198408

DARK WINE,DARK WINE,TRIM3#

sub67620-16300

main67620-16300-03iAL25..DLX;AL20,21..5DS..DLX198205-198408

GRAY,GRAY,TRIM1#

sub67620-16300

main67620-16300-06iAL25..DLX;AL20,21..5DS..DLX198205-198408

BROWN,BROWN,TRIM4#

sub67620-16300

main67620-16410-03iAL25..SR5198408-198605

GRAY,GRAY,TRIM1#

sub67620-16410

main67620-16410-03iAL25..SR5198408-198605

W/*SPS,GRAY,GRAY,TRIM1#

sub67620-16410

main67620-16410-05iAL25..GEN198408-198605

W/*SPS,BEIGE,BEIGE,TRIM4#

sub67620-16410

main67620-16410-05iAL25..SR5198408-198605

BEIGE,BEIGE,TRIM4#

sub67620-16410

main67620-16440-01iAL25..GEN198605-198801

PF SEAT,BLACK,BLACK,TRIM2#

sub67620-16440

main67620-16440-03iAL25..DLX198408-198605

GRAY,GRAY,TRIM1#

sub67620-16440

main67620-16440-05iAL25..DLX198408-198605

BEIGE,BEIGE,TRIM4#

sub67620-16440

main67620-16440-15iAL25..GEN198605-198801

PF SEAT,BEIGE,DARK BEIGE,TRIM4#

sub67620-16440

main67620-16450-03iAL25..EUR198408-198605

CASUAL SPEC(FB-C),GRAY,GRAY,TRIM1#

main67620-16450-05iAL25..EUR198408-198605

CASUAL SPEC(FB-C),BEIGE,BEIGE,TRIM4#

main67620-16580-03iAL25..GEN198605-198801

FB SEAT,GRAY,GRAY,TRIM2#

main67620-16580-03iAL25..GEN198605-198801

FB SEAT,W/*SPS,GRAY,GRAY,TRIM2#

main67620-16580-05iAL25..SR5198605-198801

FB SEAT,BEIGE,BEIGE,TRIM4#

main67620-16580-05iAL25..SR5198605-198801

FB SEAT,W/*SPS,BEIGE,BEIGE,TRIM4#

main67620-16620-03iAL25..EUR198606-198801

FB-D SEAT,GRAY,GRAY,TRIM2#

main67620-16650-03iAL25..EUR198605-198801

FB-C SEAT,GRAY,GRAY,TRIM2#

main67620-16650-05iAL25..EUR198605-198801

FB-C SEAT,BEIGE,BEIGE,TRIM4#

main67620-16670-01iAL25..DLX198605-198801

FB SEAT,BLACK,BLACK,TRIM2#

main67620-16670-05iAL25..DLX198605-198801

FB SEAT,BEIGE,BEIGE,TRIM4#

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-16050iAL20,21..3DS198205-198408

sub67831-16060

main67831-16070iAL25;AL20,21..5DS198205-198408

sub67831-16080

main67831-16080iAL25..EUR198408-198801

main67831-16090iAL25..ARL,GEN198505-198801

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67831-16090iAL25..ARL,GEN198505-198801

main67832-16050iAL20,21..3DS198205-198408

sub67832-16060

main67832-16070iAL25;AL20,21..5DS198205-198408

sub67832-16080

main67832-16080iAL25198408-198801

67837ASEAL, FRONT DOOR VENT, RH

main67837-16010iAL25..ARL,GEN198408-198801

67838ASEAL, FRONT DOOR VENT, LH

main67838-16010iAL25..ARL,GEN198408-198801

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-16010iAL25..EUR198711-198801

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-16010iAL25..EUR198711-198801

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-16090iAL20,21..3DS198205-198408

sub67861-16170

main67861-16100iAL25;AL20,21..5DS198205-198408

sub67861-16180

main67861-16180iAL25198408-198801

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iAL2#198205-198801

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-16090iAL20,21..3DS198205-198408

sub67862-16170

main67862-16100iAL25;AL20,21..5DS198205-198408

sub67862-16180

main67862-16180iAL25198408-198801

68041RUN SUB-ASSY, FRONT DOOR GLASS

main68041-16020iAL20,21..3DS198205-198408

RH

sub68141-16040

main68041-16050iAL25;AL20,21..5DS198205-198408

RH

sub68141-16060

main68041-16090iAL25198408-198801

RH

main68042-16020iAL20,21..3DS198205-198408

LH

sub68141-16040

main68042-16050iAL25;AL20,21..5DS198205-198408

LH

sub68141-16060

main68042-16090iAL25198408-198801

LH

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-16070iAL20,21..3DS..(DLX,STD)..EUR198205-198408

*TEM,T=3.5

sub68111-16080

main68111-16080iAL20,21..3DS..(DLX,GL)198205-198408

*TT,T=3.5

main68111-16110iAL20,21..5DS..DLX..EUR198205-198408

*TEM,T=3.5

sub68111-16120

main68111-16120iAL25;AL20,21..5DS198205-198801

*TT,T=3.5,*TT,T=3.5

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-16070iAL20,21..3DS..(DLX,STD)..EUR198205-198408

*TEM,T=3.5

sub68112-16080

main68112-16080iAL20,21..3DS..(DLX,GL)198205-198408

*TT,T=3.5

main68112-16110iAL20,21..5DS..DLX..EUR198205-198408

*TEM,T=3.5

sub68112-16120

main68112-16120iAL25;AL20,21..5DS198205-198801

*TT,T=3.5,*TT,T=3.5

68141BCLIP, DOOR GLASS RUN

main62367-16010iAL2#198205-198801

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-16040iAL20,21..3DS..(DLX,STD)198205-198408

RH

main68160-16060iAL25..DLX;AL20,21..5DS..DLX198205-198801

RH

main68210-16030iAL20,21..3DS..(DLX,STD)198205-198408

LH

main68210-16050iAL25..DLX;AL20,21..5DS..DLX198205-198801

LH

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-16050iAL20,21..3DS198205-198408

RH

main68170-16070iAL25;AL20,21..5DS198205-198801

RH

main68220-16040iAL20,21..3DS198205-198408

LH

main68220-16060iAL25;AL20,21..5DS198205-198801

LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030iAL2#198205-198801

68610CHECK ASSY, FRONT DOOR

main68610-16030iAL2#198205-198801

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iAL2#198401-198507

sub68617-90A00

main68617-22010iAL2#198205-198401

sub68617-12010

main68617-90A00iAL25198507-198801

sub68617-90A01

9017906070

main90179-06070

9033330002

main90333-30002

9054109006

main90541-09006

9095001315

main90950-01315

9095001353

main90950-01353

9165140612

main91651-40612

9165540616

main91655-40616

9351015014

main93510-15014

9352014010

main93520-14010

42 parts on this diagram · 2 diagrams in section
