DECK BOARD & DECK TRIM COVER

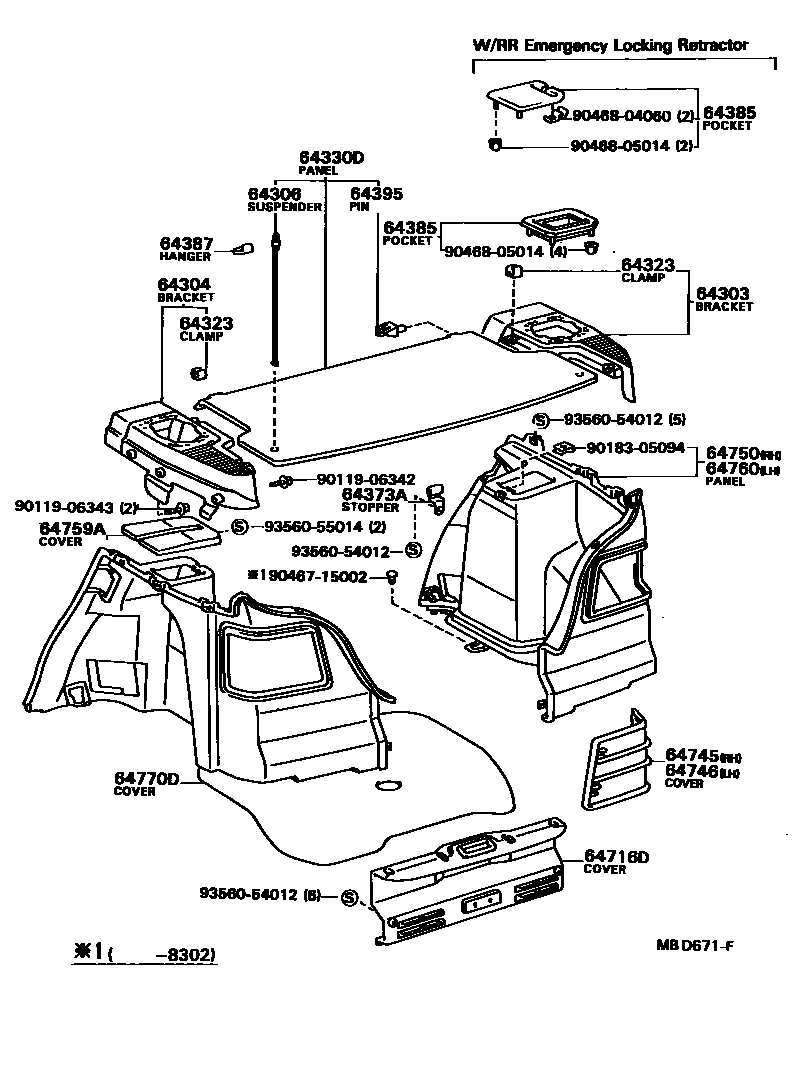

Parts diagram
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
main64301-16020-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main64301-16020-03i198205-198408
GRAY,GRAY,TRIM1#
main64301-16020-06i198205-198408
BROWN,BROWN,TRIM4#
main64301-16030-01i198605-198801
BLACK,BLACK,TRIM2#
main64301-16030-03i198208-198408
GRAY,GRAY,TRIM1#
main64301-16030-05i198408-198605
BEIGE,BEIGE,TRIM4#
main64301-16030-06i198208-198408
BROWN,BROWN,TRIM4#
main64301-16030-13i198408-198605
GRAY,GRAY,TRIM1#
main64301-16030-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
main64302-16020-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main64302-16020-03i198205-198408
GRAY,GRAY,TRIM1#
main64302-16020-06i198205-198408
BROWN,BROWN,TRIM4#
main64302-16030-01i198605-198801
BLACK,BLACK,TRIM2#
main64302-16030-03i198208-198408
GRAY,GRAY,TRIM1#
main64302-16030-05i198408-198605
BEIGE,BEIGE,TRIM4#
main64302-16030-06i198208-198408
BROWN,BROWN,TRIM4#
main64302-16030-13i198408-198605
GRAY,GRAY,TRIM1#
main64302-16030-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
main64306-12030×2i198701-198801
main64306-16020i198205-198408
main64306-16030×2i198208-198701
64323CLAMP, PACKAGE TRAY TRIM, NO.1
main64323-10010i198205-198801
RH
main64324-10010i198205-198801
LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-16050-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub64330-16140
main64330-16050-03i198205-198408
GRAY,GRAY,TRIM1#
sub64330-16140
main64330-16050-06i198205-198408
BROWN,BROWN,TRIM4#
sub64330-16140
main64330-16110-01i198605-198801
BLACK,BLACK,TRIM2#
main64330-16110-03i198208-198408
GRAY,GRAY,TRIM1#
main64330-16110-05i198408-198605
BEIGE,BEIGE,TRIM4#
main64330-16110-06i198208-198408
BROWN,BROWN,TRIM4#
main64330-16110-13i198408-198605
GRAY,GRAY,TRIM1#
main64330-16110-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
64373ASTOPPER, PACKAGE TRAY TRIM
main64373-16010×2i198205-198408
main64373-16020×2i198208-198801
64385POCKET, PACKAGE TRAY TRIM
main64353-16020-02×2i198312-198408
W/RR *ELR,DARK WINE,RED/MAROON,TRIM3#
main64353-16020-03×2i198205-198408
W/RR *ELR,GRAY,GRAY,TRIM1#
main64353-16020-06×2i198205-198408
W/RR *ELR,BROWN,BROWN,TRIM4#
main64385-16010-01×2i198605-198801
BLACK,NEW BLACK,TRIM2#
main64385-16010-02×2i198205-198408
DARK WINE,DARK WINE,TRIM3#
main64385-16010-03×2i198205-198408
GRAY,GRAY,TRIM1#
main64385-16010-05i198408-198605
BEIGE,BEIGE,TRIM4#
main64385-16010-06×2i198205-198408
BROWN,BROWN,TRIM4#
main64385-16010-13i198408-198605
GRAY,GRAY,TRIM1#
main64385-16010-15×2i198605-198801
BEIGE,DARK BEIGE,TRIM4#
64387HANGER, PACKAGE TRAY TRIM
main64381-10010×2i198205-198801
64395PIN, PACKAGE TRAY TRIM HINGE
main64373-20020i198511-198801
RR-LH
main64379-20010i198511-198801
RR-RH
main64395-16010×2i198208-198801
FR
64716DCOVER, DECK TRIM, REAR
main64716-16030-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub64716-16031
main64716-16030-03i198205-198408
GRAY,GRAY,TRIM1#
sub64716-16031
main64716-16030-06i198205-198408
BROWN,BROWN,TRIM4#
sub64716-16031
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-16020-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main64745-16020-03i198205-198408
GRAY,GRAY,TRIM1#
main64745-16020-06i198205-198408
BROWN,BROWN,TRIM4#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-16020-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main64746-16020-03i198205-198408
GRAY,GRAY,TRIM1#
main64746-16020-06i198205-198408
BROWN,BROWN,TRIM4#
64750PANEL ASSY, DECK SIDE TRIM, RH
main64714-16030-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main64714-16030-03i198205-198408
GRAY,GRAY,TRIM1#
main64714-16030-06i198205-198408
BROWN,BROWN,TRIM4#
main64714-16040-02i198312-198408
W/RR *ELR,DARK WINE,RED/MAROON,TRIM3#
main64714-16040-03i198312-198408
W/RR *ELR,GRAY,GRAY,TRIM1#
main64714-16040-06i198205-198408
W/RR *ELR,BROWN,BROWN,TRIM4#
main64714-16050-01i198605-198801
BLACK,BLACK,TRIM2#
main64714-16050-03i198208-198408
GRAY,GRAY,TRIM1#
main64714-16050-05i198408-198605
BEIGE,BEIGE,TRIM4#
main64714-16050-06i198208-198408
BROWN,BROWN,TRIM4#
main64714-16050-13i198408-198605
GRAY,GRAY,TRIM1#
main64714-16050-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
64759ACOVER, SHOCK ABSORBER HEAD
main58731-16010-02i198205-198408
W/PACKAGE TRIM,RH,DARK WINE,DARK WINE,TRIM3#
main58731-16010-03i198205-198408
W/PACKAGE TRIM,RH,GRAY,GRAY,TRIM1#
main58731-16010-06i198205-198408
W/PACKAGE TRIM,RH,BROWN,BROWN,TRIM4#
main58731-16020-02i198205-198408
RH,DARK WINE,DARK WINE,TRIM3#
main58731-16020-03i198205-198408
RH,GRAY,GRAY,TRIM1#
main58731-16020-06i198205-198408
RH,BROWN,BROWN,TRIM4#
main58731-16030-01×2i198605-198801
BLACK,BLACK,TRIM2#
main58731-16030-03×2i198208-198408
GRAY,TRIM1#
main58731-16030-05i198408-198605
BEIGE,BEIGE,TRIM4#
main58731-16030-06×2i198208-198408
BROWN,TRIM4#
main58731-16030-13i198408-198605
GRAY,GRAY,TRIM1#
main58731-16030-15×2i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main58732-16010-02i198205-198408
W/PACKAGE TRIM,LH,DARK WINE,DARK WINE,TRIM3#
main58732-16010-03i198205-198408
W/PACKAGE TRIM,LH,GRAY,GRAY,TRIM1#
main58732-16010-06i198205-198408
W/PACKAGE TRIM,LH,BROWN,BROWN,TRIM4#
main58732-16020-02i198205-198408
LH,DARK WINE,DARK WINE,TRIM3#
main58732-16020-03i198205-198408
LH,GRAY,GRAY,TRIM1#
main58732-16020-06i198205-198408
LH,BROWN,BROWN,TRIM4#
64760PANEL ASSY, DECK SIDE TRIM, LH
main64715-16030-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main64715-16030-03i198205-198408
GRAY,GRAY,TRIM1#
main64715-16030-06i198205-198408
BROWN,BROWN,TRIM4#
main64715-16040-02i198205-198408
W/RR *ELR,DARK WINE,RED/MAROON,TRIM3#
main64715-16040-03i198312-198408
W/RR *ELR,GRAY,GRAY,TRIM1#
main64715-16040-06i198205-198408
W/RR *ELR,BROWN,BROWN,TRIM4#
main64715-16050-01i198605-198801
BLACK,BLACK,TRIM2#
main64715-16050-03i198208-198408
GRAY,GRAY,TRIM1#
main64715-16050-05i198408-198605
BEIGE,BEIGE,TRIM4#
main64715-16050-06i198208-198408
BROWN,BROWN,TRIM4#
main64715-16050-13i198408-198605
GRAY,GRAY,TRIM1#
main64715-16050-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
64770DCOVER ASSY, SPARE WHEEL
main64770-16030i198205-198408
COMPACT SPARE TIRE
sub64770-12060
main64770-16050i198205-198408
sub64770-12070
main64770-16080i198208-198801
9011906342
main90119-06342
9011906343
main90119-06343
9018305094
main90183-05094
9046715002
main90467-15002
9046804060
main90468-04060
9046805014
main90468-05014
9356054012
main93560-54012
9356055014
main93560-55014

24 parts on this diagram · 2 diagrams in section
