EPC Data

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

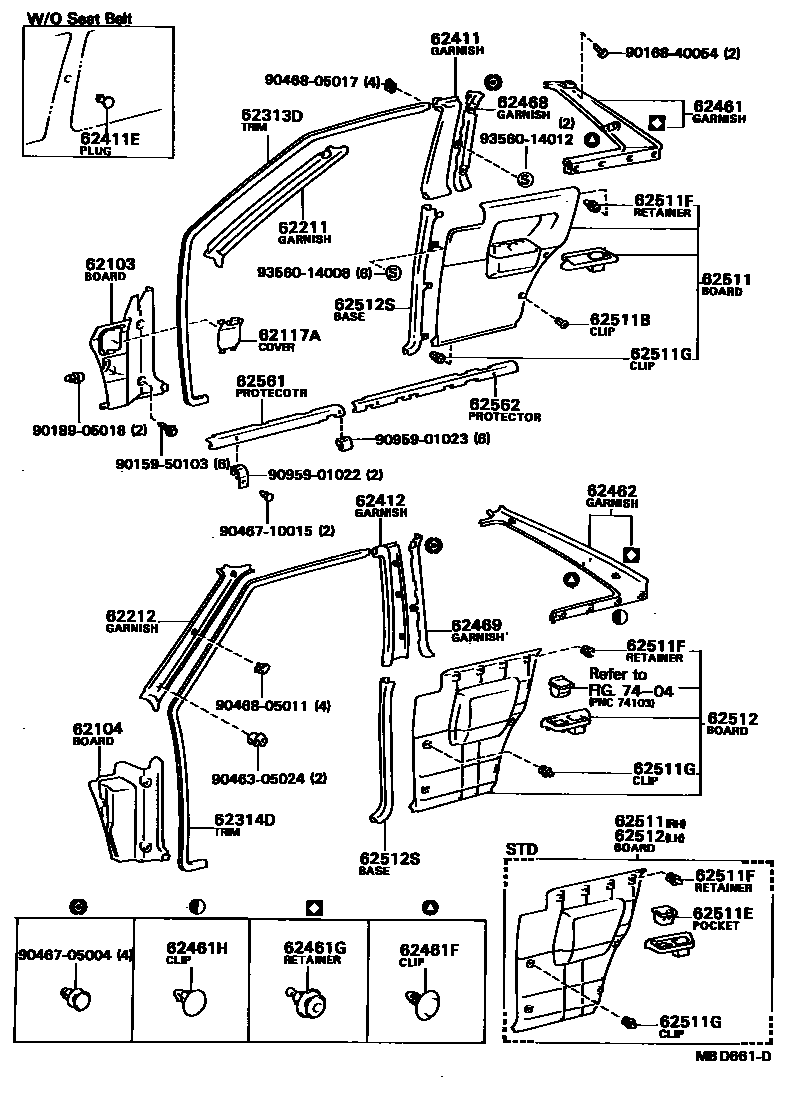

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-16040-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub62111-16030
main62101-16040-03i198205-198408
GRAY,GRAY,TRIM1#
sub62111-16030
main62101-16040-06i198205-198408
BROWN,BROWN,TRIM4#
sub62111-16030
main62101-16050-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub62111-16040
main62101-16050-03i198205-198408
GRAY,GRAY,TRIM1#
sub62111-16040
main62101-16050-06i198205-198408
BROWN,BROWN,TRIM4#
sub62111-16040
main62111-16030-01i198605-198801
BLACK,BLACK,TRIM2#
sub62111-16030
main62111-16030-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub62111-16030
main62111-16030-13i198408-198605
GRAY,GRAY,TRIM1#
sub62111-16030
main62111-16030-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub62111-16030
main62111-16040-01i198605-198801
BLACK,BLACK,TRIM2#
sub62111-16040
main62111-16040-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub62111-16040
main62111-16040-13i198408-198605
GRAY,GRAY,TRIM1#
sub62111-16040
main62111-16040-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub62111-16040
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-16040-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub62112-16030
main62102-16040-03i198205-198408
GRAY,GRAY,TRIM1#
sub62112-16030
main62102-16040-06i198205-198408
BROWN,BROWN,TRIM4#
sub62112-16030
main62102-16050-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub62112-16040
main62102-16050-03i198205-198408
GRAY,GRAY,TRIM1#
sub62112-16040
main62102-16050-06i198205-198408
BROWN,BROWN,TRIM4#
sub62112-16040
main62112-16030-01i198605-198801
BLACK,BLACK,TRIM2#
sub62112-16030
main62112-16030-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub62112-16030
main62112-16030-13i198408-198605
GRAY,GRAY,TRIM1#
sub62112-16030
main62112-16030-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub62112-16030
main62112-16040-01i198605-198801
BLACK,BLACK,TRIM2#
sub62112-16040
main62112-16040-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub62112-16040
main62112-16040-13i198408-198605
GRAY,GRAY,TRIM1#
sub62112-16040
main62112-16040-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub62112-16040
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main55545-16060-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main55545-16060-03i198205-198408
GRAY,GRAY,TRIM1#
main55545-16060-06i198205-198408
BROWN,BROWN,TRIM4#
main55545-16061-03i198408-198605
GRAY,GRAY,TRIM1#
main55545-16061-05i198408-198605
BEIGE,BEIGE,TRIM4#
main55545-16062-01i198605-198801
BLACK,BLACK,TRIM2#
main55545-16062-05i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main55545-16070-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main55545-16070-03i198205-198408
GRAY,GRAY,TRIM1#
main55545-16070-06i198205-198408
BROWN,BROWN,TRIM4#
main55545-16071-01i198605-198801
BLACK,BLACK,TRIM2#
sub55545-16071
main55545-16071-03i198408-198605
GRAY,GRAY,TRIM1#
sub55545-16071
main55545-16071-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55545-16071
main55545-16071-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55545-16071
main55545-16080-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main55545-16080-03i198205-198408
GRAY,GRAY,TRIM1#
main55545-16080-06i198205-198408
BROWN,BROWN,TRIM4#
main55545-16081-01i198605-198801
BLACK,BLACK,TRIM2#
sub55545-16081
main55545-16081-03i198408-198605
GRAY,GRAY,TRIM1#
sub55545-16081
main55545-16081-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55545-16081
main55545-16081-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55545-16081
main55545-16090-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main55545-16090-03i198205-198408
GRAY,GRAY,TRIM1#
main55545-16090-06i198205-198408
BROWN,BROWN,TRIM4#
main55545-16091-01i198605-198801
BLACK,BLACK,TRIM2#
sub55545-16091
main55545-16091-03i198408-198605
GRAY,GRAY,TRIM1#
sub55545-16091
main55545-16091-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55545-16091
main55545-16091-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55545-16091
62211GARNISH, FRONT PILLAR, RH
main62211-16020i198205-198605
IVORY
main62211-16020-18i198605-198801
IVORY,IVORY,TRIM2#,4#
sub62211-16020
62212GARNISH, FRONT PILLAR, LH
main62212-16020i198205-198605
IVORY
main62212-16020-18i198605-198801
IVORY,IVORY,TRIM2#,4#
sub62212-16020
62313DTRIM, FRONT DOOR OPENING, RH
main62313-16030-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub62313-16031
main62313-16030-03i198205-198408
GRAY,GRAY,TRIM1#
sub62313-16031
main62313-16030-06i198205-198408
BROWN,BROWN,TRIM4#
sub62313-16031
main62313-16040-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub62313-16041
main62313-16040-03i198205-198408
GRAY,GRAY,TRIM1#
sub62313-16041
main62313-16040-06i198205-198408
BROWN,BROWN,TRIM4#
sub62313-16041
main62313-16041-01i198605-198801
BLACK,BLACK,TRIM2#
sub62313-16031
main62313-16041-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub62313-16031
main62313-16041-13i198408-198605
GRAY,GRAY,TRIM1#
sub62313-16031
main62313-16041-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub62313-16031
62314DTRIM, FRONT DOOR OPENING, LH
main62313-16030-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub62313-16031
main62313-16030-03i198205-198408
GRAY,GRAY,TRIM1#
sub62313-16031
main62313-16030-06i198205-198408
BROWN,BROWN,TRIM4#
sub62313-16031
main62313-16040-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub62313-16041
main62313-16040-03i198205-198408
GRAY,GRAY,TRIM1#
sub62313-16041
main62313-16040-06i198205-198408
BROWN,BROWN,TRIM4#
sub62313-16041
main62313-16041-01i198605-198801
BLACK,BLACK,TRIM2#
sub62313-16031
main62313-16041-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub62313-16031
main62313-16041-13i198408-198605
GRAY,GRAY,TRIM1#
sub62313-16031
main62313-16041-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub62313-16031
62411GARNISH, CENTER PILLAR, RH
main62411-16050-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub62411-16050
main62411-16050-03i198205-198408
GRAY,GRAY,TRIM1#
sub62411-16050
main62411-16050-06i198205-198408
BROWN,BROWN,TRIM4#
sub62411-16050
62411EPLUG, HOLE (FOR SEAT BELT)
main90950-01159-12i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub90950-01159
main90950-01159-21i198605-198801
BLACK,BLACK,TRIM2#
sub90950-01159
main90950-01159-30i198408-198605
BEIGE,BEIGE,TRIM4#
sub90950-01159
main90950-01159-33i198205-198408
GRAY,GRAY,TRIM1#
sub90950-01159
main90950-01159-36i198205-198408
BROWN,BROWN,TRIM4#
sub90950-01159
main90950-01159-43i198408-198605
GRAY,GRAY,TRIM1#
sub90950-01159
main90950-01159-59i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub90950-01159
62412GARNISH, CENTER PILLAR, LH
main62412-16050-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub62412-16050
main62412-16050-03i198205-198408
GRAY,GRAY,TRIM1#
sub62412-16050
main62412-16050-06i198205-198408
BROWN,BROWN,TRIM4#
sub62412-16050
62461GARNISH, ROOF SIDE TRIM, RH
main62471-16070i198205-198408
IVORY
main62471-16080i198205-198408
W/RR *ELR,IVORY
main62471-16090i198205-198408
IVORY
main62471-16100i198205-198408
W/RR *ELR,IVORY
main62471-16120i198208-198605
IVORY
main62471-16120-18i198605-198801
IVORY,IVORY,TRIM2#,4#
sub62471-16120
main62471-16130i198208-198605
W/RR *ELR,IVORY
main62471-16130-18i198605-198801
IVORY,IVORY,TRIM2#,4#
sub62471-16130
62461FCLIP (FOR ROOF SIDE TRIM GARNISH)
main90467-05016-08i198205-198408
IVORY,IVORY,TRIM1#,3#,4#
sub90467-05016
62461GRETAINER, DOOR TRIM
main67771-12020i198205-198408
main67771-23010i198407-198801
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
main90467-05016-03i198208-198408
GRAY,GRAY,TRIM1#
sub90467-05016
main90467-05016-06i198208-198408
BROWN,BROWN,TRIM4#
sub90467-05016
main90467-05016-08i198408-198605
IVORY,IVORY,TRIM1#,4#
sub90467-05016
main90467-05016-08i198205-198408
IVORY,IVORY,TRIM1#,3#,4#
sub90467-05016
main90467-05016-18i198605-198801
IVORY,IVORY,TRIM2#,4#
sub90467-05016
62462GARNISH, ROOF SIDE TRIM, LH
main62472-16070i198205-198408
IVORY
main62472-16080i198205-198408
W/RR *ELR,IVORY
main62472-16090i198205-198408
IVORY
main62472-16100i198205-198408
W/RR *ELR,IVORY
main62472-16120i198208-198605
IVORY
main62472-16120-18i198605-198801
IVORY,IVORY,TRIM2#,4#
sub62472-16120
main62472-16130i198208-198605
W/RR *ELR,IVORY
main62472-16130-18i198605-198801
IVORY,IVORY,TRIM2#,4#
sub62472-16130
62468GARNISH, CENTER PILLAR, REAR RH
main62468-16010-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub62468-16010
main62468-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub62468-16010
main62468-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub62468-16010
main62468-16020-01i198605-198801
BLACK,BLACK,TRIM2#
sub62468-16020
main62468-16020-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub62468-16020
main62468-16020-03i198205-198408
GRAY,GRAY,TRIM1#
sub62468-16020
main62468-16020-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub62468-16020
main62468-16020-06i198205-198408
BROWN,BROWN,TRIM4#
sub62468-16020
main62468-16020-13i198408-198605
GRAY,GRAY,TRIM1#
sub62468-16020
main62468-16020-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub62468-16020
62469GARNISH, CENTER PILLAR, REAR LH
main62469-16010-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub62469-16010
main62469-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub62469-16010
main62469-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub62469-16010
main62469-16020-01i198605-198801
BLACK,BLACK,TRIM2#
sub62469-16020
main62469-16020-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub62469-16020
main62469-16020-03i198205-198408
GRAY,GRAY,TRIM1#
sub62469-16020
main62469-16020-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub62469-16020
main62469-16020-06i198205-198408
BROWN,BROWN,TRIM4#
sub62469-16020
main62469-16020-13i198408-198605
GRAY,GRAY,TRIM1#
sub62469-16020
main62469-16020-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub62469-16020
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-16340-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main62510-16340-03i198205-198408
GRAY,GRAY,TRIM1#
main62510-16340-06i198205-198408
BROWN,BROWN,TRIM4#
main62510-16350-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main62510-16350-03i198205-198408
GRAY,GRAY,TRIM1#
main62510-16350-06i198205-198408
BROWN,BROWN,TRIM4#
main62510-16370-02i198205-198408
W/RR *ELR,DARK WINE,RED/MAROON,TRIM3#
main62510-16370-03i198205-198408
W/RR *ELR,GRAY,GRAY,TRIM1#
main62510-16370-06i198205-198408
W/RR *ELR,BROWN,BROWN,TRIM4#
main62510-16380-02i198205-198408
W/RR *ELR,DARK WINE,RED/MAROON,TRIM3#
main62510-16380-03i198205-198408
W/RR *ELR,GRAY,GRAY,TRIM1#
main62510-16380-06i198205-198408
W/RR *ELR,BROWN,BROWN,TRIM4#
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-06017-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
sub90467-06017
main90467-06017-13i198205-198408
GRAY,GRAY,TRIM1#
sub90467-06017
main90467-06017-26i198205-198408
BROWN,BROWN,TRIM4#
sub90467-06017
62511EPOCKET, QUARTER TRIM
main62594-16020-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main62594-16020-03i198205-198408
GRAY,GRAY,TRIM1#
main62594-16020-06i198205-198408
BROWN,BROWN,TRIM4#
62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)
main67771-12020i198205-198408
62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-10019i198205-198408
62512BOARD, QUARTER INSIDE TRIM, LH
main62520-16280-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main62520-16280-03i198205-198408
GRAY,GRAY,TRIM1#
main62520-16280-06i198205-198408
BROWN,BROWN,TRIM4#
main62520-16290-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main62520-16290-03i198205-198408
GRAY,GRAY,TRIM1#
main62520-16290-06i198205-198408
BROWN,BROWN,TRIM4#
main62520-16300-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub62520-16280
main62520-16300-03i198205-198408
GRAY,GRAY,TRIM1#
sub62520-16280
main62520-16300-06i198205-198408
BROWN,BROWN,TRIM4#
sub62520-16280
main62520-16330-02i198205-198408
W/RR *ELR,DARK WINE,RED/MAROON,TRIM3#
main62520-16330-03i198205-198408
W/RR *ELR,GRAY,GRAY,TRIM1#
main62520-16330-06i198205-198408
W/RR *ELR,BROWN,BROWN,TRIM4#
main62520-16360-02i198205-198408
W/RR *ELR,DARK WINE,RED/MAROON,TRIM3#
main62520-16360-03i198205-198408
W/RR *ELR,GRAY,GRAY,TRIM1#
main62520-16360-06i198205-198408
W/RR *ELR,BROWN,BROWN,TRIM4#
62512SBASE, QUARTER TRIM, FRONT
main62517-16010-02i198205-198408
RH,DARK WINE,DARK WINE,TRIM3#
sub62517-16010
main62517-16010-03i198205-198408
RH,GRAY,GRAY,TRIM1#
sub62517-16010
main62517-16010-06i198205-198408
RH,BROWN,BROWN,TRIM4#
sub62517-16010
main62518-16010-02i198205-198408
LH,DARK WINE,DARK WINE,TRIM3#
sub62518-16010
main62518-16010-03i198205-198408
LH,GRAY,GRAY,TRIM1#
sub62518-16010
main62518-16010-06i198205-198408
LH,BROWN,BROWN,TRIM4#
sub62518-16010
62561PROTECTOR, ROCKER PANEL, INNER FRONT
main62561-16010i198205-198801
RH
main62562-16010i198205-198801
LH
62562PROTECTOR, ROCKER PANEL, INNER REAR
main62563-16010i198205-198605
RH
main62563-16020i198605-198801
RH
main62564-16010i198205-198605
LH
main62564-16020i198605-198801
LH
7404
9015950103
main90159-50103
9016840054
main90168-40054
9018905018
main90189-05018
9046305024
main90463-05024
9046705004
main90467-05004
9046710015
main90467-10015
9046805011
main90468-05011
9046805017
main90468-05017
9095901022
main90959-01022
9095901023
main90959-01023
9356014008
main93560-14008
9356014012
main93560-14012

39 parts on this diagram · 3 diagrams in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
