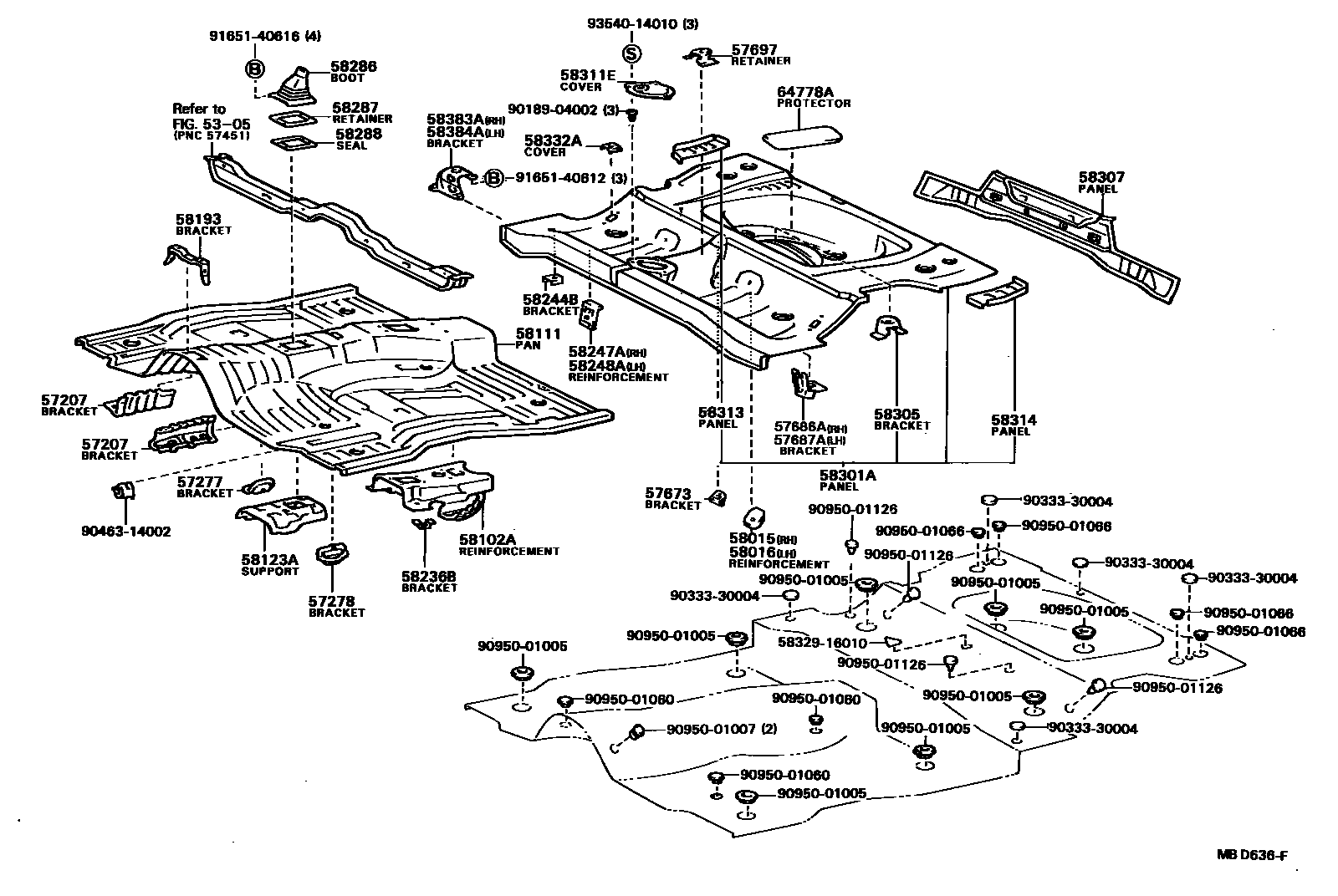

FLOOR PAN & LOWER BACK PANEL
5305
57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
RH
RH
LH
LH
57277BRACKET, CATALYTIC CONVERTER SUPPORT, RH
57278BRACKET, CATALYTIC CONVERTER SUPPORT, LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57687ABRACKET, FUEL TANK MOUNTING, REAR LH
57697RETAINER, REAR SEAT CUSHION
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58236BBRACKET, CENTER FLOOR HEAT INSULATOR
58244BBRACKET, REAR SEAT CUSHION MOUNTING
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
58288SEAL, SHIFT LEVER BOOT
58301APANEL SUB-ASSY, REAR FLOOR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311ECOVER, REAR FLOOR SERVICE HOLE
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58332ACOVER, REAR FLOOR SIDE SERVICE HOLE
RH
LH
58383ABRACKET, REAR SEAT SUPPORT, RH
58384ABRACKET, REAR SEAT SUPPORT, LH
64778APROTECTOR, SPARE WHEEL
230 X 125
5832916010GUIDE, WIRE, NO.1
9018904002
9033330004
9046314002
9095001005
9095001007
9095001060
9095001066
9095001126
9165140612
9165140616
9354014010
43 parts on this diagram · 2 diagrams in section
