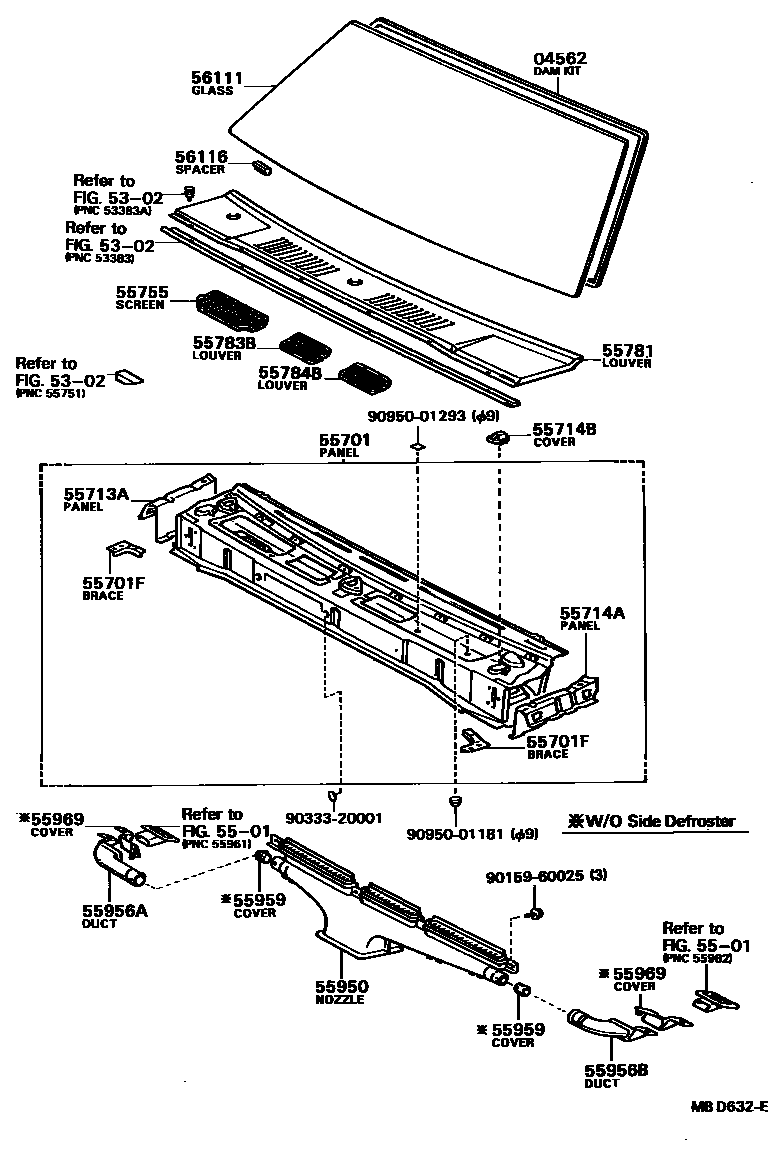

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-30030iAL2#198205-198308

main04562-30040iAL2#198308-198801

5302

5501

55701PANEL SUB-ASSY, COWL

main55700-16030iAL20,25..RHD198205-198507

main55700-16040iAL2#..LHD198205-198801

sub55700-16060

main55700-16070iAL25..RHD198507-198801

main55700-16120iAL25..LHD..GEN198601-198801

W/UNDER BODY RROTECTOR

main55700-16130iAL25..RHD..GEN198601-198801

W/UNDER BODY RROTECTOR

55701FBRACE, COWL TOP TO APRON

main55715-16020iAL2#198205-198801

RH

main55716-16020iAL2#198205-198801

LH

55713APANEL, COWL TOP SIDE, RH

main55713-16020iAL2#198205-198801

main55713-16040iAL25..GEN198601-198801

W/UNDER BODY RROTECTOR

55714APANEL, COWL TOP SIDE, LH

main55714-16020iAL2#198205-198801

main55714-16040iAL25..GEN198601-198801

W/UNDER BODY RROTECTOR

55714BCOVER, COWL SIDE PANEL HOLE, LH

main55729-16010iAL20,25..RHD198205-198801

55755SCREEN, HEATER AIR DUCT

main55076-16030iAL25..RHD198610-198801

main55076-16040iAL25..LHD..(EUG,SDZ)198605-198801

FINLAND,NORWAY,SWEDEN SPEC

main55756-16020iAL20,25..RHD198205-198610

main55756-16030iAL2#..LHD198205-198610

55781LOUVER, COWL VENTILATOR

main55781-16010iAL20,25..RHD198205-198801

main55781-16020iAL2#..LHD198205-198801

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-16010iAL25..LHD..(EUG,SDZ)198605-198801

FINLAND,NORWAY,SWEDEN SPEC

main55783-16030iAL2#198205-198610

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55709-16030iAL25198601-198801

main55784-16010iAL2#198205-198801

55950NOZZLE ASSY, DEFROSTER

main55950-16020iAL20,25..RHD198205-198408

main55950-16021iAL25..RHD198408-198801

main55950-16030iAL2#..LHD198205-198801

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-16010iAL2#..ARL,EUR198205-198801

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55980-16010iAL2#..ARL,EUR198205-198801

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-14010×2iAL20..GEN;AL25..LHD;AL20..LHD..EUG;AL25..RHD..GEN198205-198605

55969COVER, DEFROSTER NOZZLE OPENING, NO.2

main55959-16020iAL25..LHD..EUG198605-198801

RH

main55969-16010iAL25..LHD..EUG198605-198801

LH

56111GLASS, WINDSHIELD

main56111-16050iAL20..(DLX,STD)..EUG198205-198408

*ZT,T=5.0

main56111-16060iAL25..EUG;AL25..GEN198408-198801

*TZT,T=5.0,*TZT,T=5.0

main56111-16070iAL20..(DLX,STD)..EUG198205-198208

*LAM,T=4.7

main56111-16080iAL20..DLX,GL198205-198208

*TL,T=4.7

main56111-16090iAL25..ARL198308-198801

*LAM,T=5.3,*LAM,T=5.3

main56111-16100iAL25..EUR,GEN198408-198801

*TL,T=5.3,*TL,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-16020×2iAL2#..EUR,GEN198205-198306

main56116-16030×2iAL2#198306-198801

9015960025

main90159-60025

9033320001

main90333-20001

9095001181

main90950-01181

9095001293

main90950-01293

23 parts on this diagram · 2 diagrams in section
