INSTRUMENT PANEL & GLOVE COMPARTMENT

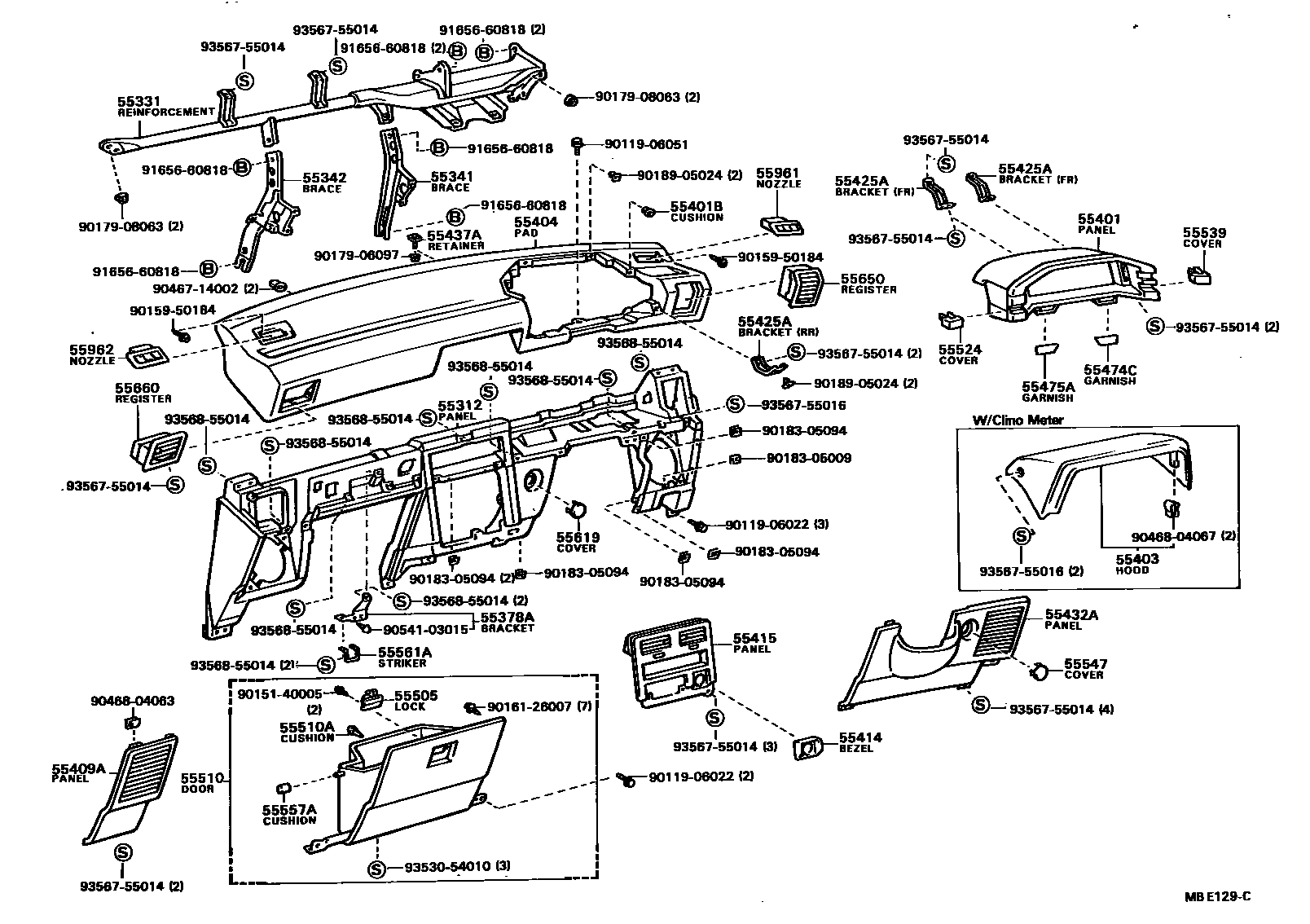

Parts diagram
55312PANEL, INSTRUMENT, LOWER
main55312-16010-01i198605-198801
BLACK,BLACK,TRIM2#
main55312-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main55312-16010-03i198205-198408
GRAY,GRAY,TRIM1#
main55312-16010-05i198408-198605
BEIGE,BEIGE,TRIM4#
main55312-16010-06i198205-198408
BROWN,BROWN,TRIM4#
main55312-16010-13i198408-198605
GRAY,GRAY,TRIM1#
main55312-16010-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main55312-16020-01i198605-198801
BLACK,BLACK,TRIM2#
main55312-16020-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main55312-16020-03i198205-198408
GRAY,GRAY,TRIM1#
main55312-16020-05i198408-198605
BEIGE,BEIGE,TRIM4#
main55312-16020-06i198205-198408
BROWN,BROWN,TRIM4#
main55312-16020-13i198408-198605
GRAY,GRAY,TRIM1#
main55312-16020-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-16010i198205-198309
sub55330-16011
main55330-16011i198309-198801
main55330-16020i198205-198801
55341BRACE, INSTRUMENT PANEL, NO.1
main55306-16030i198205-198801
main55306-16040i198205-198801
55342BRACE, INSTRUMENT PANEL, NO.2
main55307-16030i198205-198801
main55307-16040i198205-198801
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
main55378-16010i198205-198801
main55378-16020i198205-198801
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
main55404-16050-01i198605-198801
BLACK,BLACK,TRIM2#
main55404-16050-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main55404-16050-03i198205-198408
GRAY,GRAY,TRIM1#
main55404-16050-05i198408-198605
BEIGE,BEIGE,TRIM4#
main55404-16050-06i198205-198408
BROWN,BROWN,TRIM4#
main55404-16050-13i198408-198605
GRAY,GRAY,TRIM1#
main55404-16050-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main55404-16060-01i198605-198801
BLACK,BLACK,TRIM2#
main55404-16060-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main55404-16060-03i198205-198408
GRAY,GRAY,TRIM1#
main55404-16060-05i198408-198605
BEIGE,BEIGE,TRIM4#
main55404-16060-06i198205-198408
BROWN,BROWN,TRIM4#
main55404-16060-13i198408-198605
GRAY,GRAY,TRIM1#
main55404-16060-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
55401BCUSHION, INSTRUMENT CLUSTER FINISH PANEL
main55419-16010i198205-198801
55403HOOD SUB-ASSY, METER
main55403-16010-03i198208-198408
GRAY,GRAY,TRIM1#
sub55403-16020
main55403-16010-06i198208-198408
BROWN,BROWN,TRIM4#
sub55403-16020
main55403-16020-01i198605-198801
BLACK,BLACK,TRIM2#
main55403-16020-03i198408-198605
GRAY,GRAY,TRIM1#
main55403-16020-05i198408-198605
BEIGE,BEIGE,TRIM4#
main55403-16020-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
main55401-16040-01i198605-198801
BLACK,BLACK,TRIM2#
main55401-16040-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main55401-16040-03i198205-198408
GRAY,GRAY,TRIM1#
main55401-16040-05i198408-198605
BEIGE,BEIGE,TRIM4#
main55401-16040-06i198205-198408
BROWN,BROWN,TRIM4#
main55401-16040-13i198408-198605
GRAY,GRAY,TRIM1#
main55401-16040-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main55401-16050-01i198605-198801
BLACK,BLACK,TRIM2#
main55401-16050-02i198205-198408
DARK WINE,DARK WINE,TRIM3#
main55401-16050-03i198205-198408
GRAY,GRAY,TRIM1#
main55401-16050-05i198408-198605
BEIGE,BEIGE,TRIM4#
main55401-16050-06i198205-198408
BROWN,BROWN,TRIM4#
main55401-16050-13i198408-198605
GRAY,GRAY,TRIM1#
main55401-16050-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main55401-16060-01i198605-198801
W/CLINO METER,BLACK,BLACK,TRIM2#
main55401-16060-03i198208-198408
W/CLINO METER,GRAY,GRAY,TRIM1#
main55401-16060-05i198408-198605
W/CLINO METER,BEIGE,BEIGE,TRIM4#
main55401-16060-06i198208-198408
W/CLINO METER,BROWN,BROWN,TRIM4#
main55401-16060-13i198408-198605
W/CLINO METER,GRAY,GRAY,TRIM1#
main55401-16060-15i198605-198801
W/CLINO METER,BEIGE,DARK BEIGE,TRIM4#
main55401-16070-01i198605-198801
W/CLINO METER,BLACK,BLACK,TRIM2#
main55401-16070-03i198208-198408
W/CLINO METER,GRAY,GRAY,TRIM1#
main55401-16070-05i198408-198605
W/CLINO METER,BEIGE,BEIGE,TRIM4#
main55401-16070-06i198208-198408
W/CLINO METER,BROWN,BROWN,TRIM4#
main55401-16070-13i198408-198605
W/CLINO METER,GRAY,GRAY,TRIM1#
main55401-16070-15i198605-198801
W/CLINO METER,BEIGE,DARK BEIGE,TRIM4#
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
main55409-16010-01i198605-198801
BLACK,BLACK,TRIM2#
sub55409-16030
sub55409-16010
main55409-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub55409-16030
sub55409-16010
main55409-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub55409-16030
sub55409-16010
main55409-16010-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55409-16030
sub55409-16010
main55409-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub55409-16030
sub55409-16010
main55409-16010-13i198408-198605
GRAY,GRAY,TRIM1#
sub55409-16030
sub55409-16010
main55409-16010-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55409-16030
sub55409-16010
main55409-16020-01i198605-198801
BLACK,BLACK,TRIM2#
sub55409-16020
main55409-16020-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub55409-16020
main55409-16020-03i198205-198408
GRAY,GRAY,TRIM1#
sub55409-16020
main55409-16020-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55409-16020
main55409-16020-06i198205-198408
BROWN,BROWN,TRIM4#
sub55409-16020
main55409-16020-13i198408-198605
GRAY,GRAY,TRIM1#
sub55409-16020
main55409-16020-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55409-16020
55414BEZEL, CIGAR LIGHTER HOLE
main55477-16030i198205-198408
main55477-16040i198408-198801
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
main55405-16010i198205-198408
sub55405-16011
sub55477-10050
main55405-16011i198408-198602
main55405-16012i198602-198605
sub55405-16013
main55405-16013i198605-198801
main55405-16020i198205-198408
sub55405-16021
main55405-16030i198408-198602
main55405-16031i198602-198605
sub55405-16030
main55405-16032i198605-198801
sub55405-16030
55425ABRACKET, METER HOOD SET
main55425-16030i198205-198801
FR
main55426-16030i198205-198801
RR
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
main55432-16020-01i198605-198801
BLACK,BLACK,TRIM2#
sub55432-16100
sub55432-16020
main55432-16020-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub55432-16100
sub55432-16020
main55432-16020-03i198205-198408
GRAY,GRAY,TRIM1#
sub55432-16100
sub55432-16020
main55432-16020-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55432-16100
sub55432-16020
main55432-16020-06i198205-198408
BROWN,BROWN,TRIM4#
sub55432-16100
sub55432-16020
main55432-16020-13i198408-198605
GRAY,GRAY,TRIM1#
sub55432-16100
sub55432-16020
main55432-16020-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55432-16100
sub55432-16020
55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1
main55437-16020i198205-198801
55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
main55474-16010i198205-198801
W/CLOCK KNOB HOLE
main55474-16020i198205-198801
W/TRIP KNOB HOLE
main55474-16030i198205-198801
W/O KNOB HOLE
55475AGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
main55475-16010i198205-198801
W/TRIP KNOB HOLE
main55475-16020i198205-198801
W/CLOCK KNOB HOLE
main55475-16030i198205-198801
W/O KNOB HOLE
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
main55560-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub55560-16010
main55560-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub55560-16010
main55560-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub55560-16010
main55560-16020-01i198605-198801
BLACK,BLACK,TRIM2#
sub55560-16010
sub55560-16020
main55560-16020-03i198408-198605
GRAY,GRAY,TRIM1#
sub55560-16010
sub55560-16020
main55560-16020-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55560-16010
sub55560-16020
main55560-16020-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55560-16010
sub55560-16020
55510DOOR ASSY, GLOVE COMPARTMENT
main55550-16040-01i198605-198801
BLACK,BLACK,TRIM2#
sub55550-16040
main55550-16040-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub55550-16040
main55550-16040-03i198205-198408
GRAY,GRAY,TRIM1#
sub55550-16040
main55550-16040-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55550-16040
main55550-16040-06i198205-198408
BROWN,BROWN,TRIM4#
sub55550-16040
main55550-16040-13i198408-198605
GRAY,GRAY,TRIM1#
sub55550-16040
main55550-16040-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55550-16040
main55550-16050-01i198605-198801
BLACK,BLACK,TRIM2#
sub55550-16050
main55550-16050-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub55550-16050
main55550-16050-03i198205-198408
GRAY,GRAY,TRIM1#
sub55550-16050
main55550-16050-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55550-16050
main55550-16050-06i198205-198408
BROWN,BROWN,TRIM4#
sub55550-16050
main55550-16050-13i198408-198605
GRAY,GRAY,TRIM1#
sub55550-16050
main55550-16050-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55550-16050
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
main90541-03015i198205-198801
55524COVER, SWITCH BACE HOLE
main55524-16010i198205-198801
55539COVER, SPARE SWITCH HOLE
main55539-16010i198205-198801
55547COVER, REMOTE CONTROL MIRROR HOLE
main55547-16010-01i198605-198801
BLACK,BLACK,TRIM2#
sub55547-16010
main55547-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub55547-16010
main55547-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub55547-16010
main55547-16010-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55547-16010
main55547-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub55547-16010
main55547-16010-13i198408-198605
GRAY,GRAY,TRIM1#
sub55547-16010
main55547-16010-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55547-16010
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
main55557-16010i198205-198312
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
main55561-16020i198212-198801
sub55561-32010
main55561-32010i198205-198212
55619COVER, SWITCH HOLE
main55617-10010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub55617-10010
main55617-10010-03i198205-198408
GRAY,GRAY,TRIM1#
sub55617-10010
main55617-10010-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55617-10010
main55617-10010-11i198605-198801
BLACK,BLACK,TRIM2#
sub55617-10010
main55617-10010-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55617-10010
main55617-10010-23i198408-198605
GRAY,GRAY,TRIM1#
sub55617-10010
main55617-10010-36i198205-198408
BROWN,BROWN,TRIM4#
sub55617-10010
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-16030-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub55650-16030
main55650-16030-03i198205-198408
GRAY,GRAY,TRIM1#
sub55650-16030
main55650-16030-05i198408-198602
BEIGE,BEIGE,TRIM4#
sub55650-16030
main55650-16030-06i198205-198408
BROWN,BROWN,TRIM4#
sub55650-16030
main55650-16030-13i198408-198602
GRAY,GRAY,TRIM1#
sub55650-16030
main55650-16031-03i198602-198605
GRAY,GRAY,TRIM1#
sub55650-16032
main55650-16031-05i198602-198605
BEIGE,BEIGE,TRIM4#
sub55650-16032
main55650-16032-01i198605-198801
BLACK,BLACK,TRIM2#
main55650-16032-05i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main55650-16040-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main55650-16040-03i198205-198408
GRAY,GRAY,TRIM1#
main55650-16040-06i198205-198408
BROWN,BROWN,TRIM4#
main55650-16050-03i198408-198602
GRAY,GRAY,TRIM1#
sub55650-16052
main55650-16050-05i198408-198602
BEIGE,BEIGE,TRIM4#
sub55650-16052
main55650-16051-03i198602-198605
GRAY,GRAY,TRIM1#
sub55650-16052
main55650-16051-05i198602-198605
BEIGE,BEIGE,TRIM4#
sub55650-16052
main55650-16052-01i198605-198801
BLACK,BLACK,TRIM2#
sub55650-16052
main55650-16052-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55650-16052
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55660-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main55660-16010-03i198205-198408
GRAY,GRAY,TRIM1#
main55660-16010-05i198408-198605
BEIGE,BEIGE,TRIM4#
main55660-16010-06i198205-198408
BROWN,BROWN,TRIM4#
main55660-16010-13i198408-198602
GRAY,GRAY,TRIM1#
main55660-16011-03i198602-198605
GRAY,GRAY,TRIM1#
main55660-16011-05i198605-198605
BEIGE,BEIGE,TRIM4#
main55660-16012-01i198605-198801
BLACK,BLACK,TRIM2#
main55660-16012-05i198605-198801
BEIGE,DARK BEIGE,TRIM4#
main55660-16020-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
main55660-16020-03i198205-198408
GRAY,GRAY,TRIM1#
main55660-16020-06i198205-198408
BROWN,BROWN,TRIM4#
main55660-16030-03i198408-198602
GRAY,GRAY,TRIM1#
sub55660-16030
main55660-16030-05i198408-198602
BEIGE,BEIGE,TRIM4#
sub55660-16030
main55660-16031-03i198602-198605
GRAY,GRAY,TRIM1#
main55660-16031-05i198602-198605
BEIGE,BEIGE,TRIM4#
main55660-16032-01i198605-198801
BLACK,BLACK,TRIM2#
sub55660-16032
main55660-16032-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55660-16032
55961NOZZLE, SIDE DEFROSTER, NO.1
main55961-16010-01i198605-198801
BLACK,BLACK,TRIM2#
sub55961-16010
main55961-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub55961-16010
main55961-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub55961-16010
main55961-16010-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55961-16010
main55961-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub55961-16010
main55961-16010-13i198408-198605
GRAY,GRAY,TRIM1#
sub55961-16010
main55961-16010-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55961-16010
55962NOZZLE, SIDE DEFROSTER, NO.2
main55962-16010-01i198605-198801
BLACK,BLACK,TRIM2#
sub55962-16010
main55962-16010-02i198205-198408
DARK WINE,RED/MAROON,TRIM3#
sub55962-16010
main55962-16010-03i198205-198408
GRAY,GRAY,TRIM1#
sub55962-16010
main55962-16010-05i198408-198605
BEIGE,BEIGE,TRIM4#
sub55962-16010
main55962-16010-06i198205-198408
BROWN,BROWN,TRIM4#
sub55962-16010
main55962-16010-13i198408-198605
GRAY,GRAY,TRIM1#
sub55962-16010
main55962-16010-15i198605-198801
BEIGE,DARK BEIGE,TRIM4#
sub55962-16010
9011906022
main90119-06022
9011906051
main90119-06051
9015140005
main90151-40005
9015950184
main90159-50184
9016126007
main90161-26007
9017906097
main90179-06097
9017908063
main90179-08063
9018305009
main90183-05009
9018305094
main90183-05094
9018905024
main90189-05024
9046714002
main90467-14002
9046804063
main90468-04063
9046804067
main90468-04067
9054103015
main90541-03015
9165660818
main91656-60818
9353054010
main93530-54010
9356755014
main93567-55014
9356755016
main93567-55016
9356855014
main93568-55014

49 parts on this diagram · 2 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
