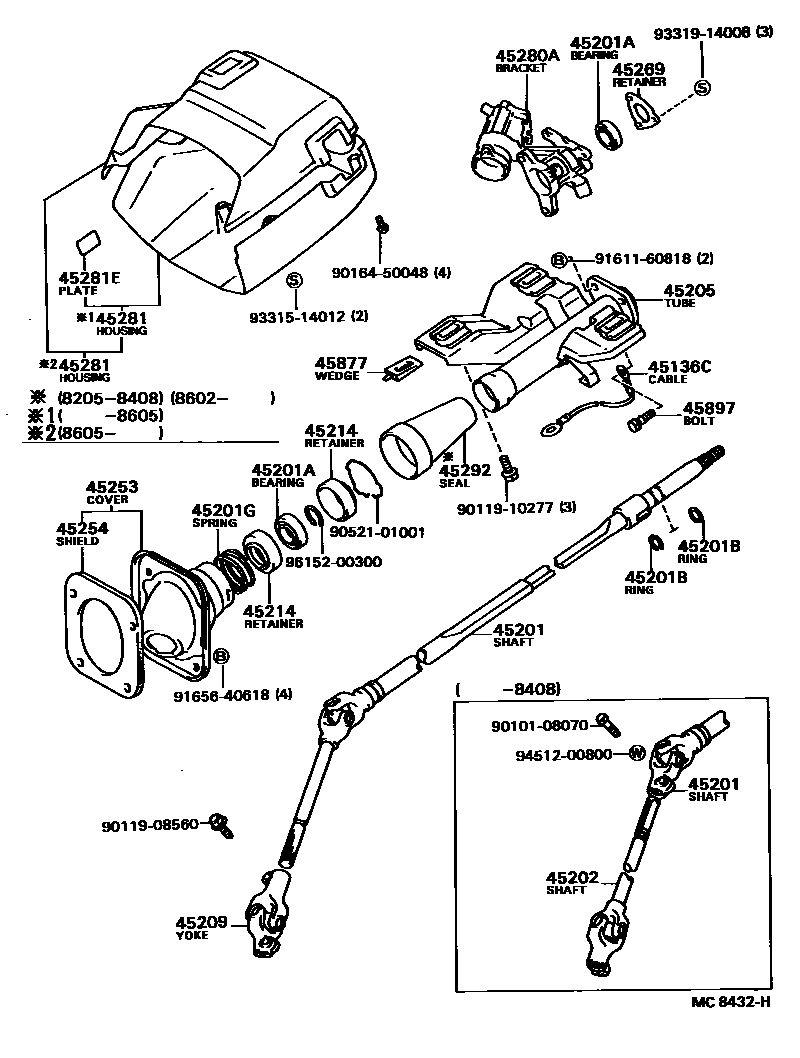

STEERING COLUMN & SHAFT
45136CCABLE, BOND(FOR HORN EARTH)
45201SHAFT SUB-ASSY, STEERING MAIN
W/POWER STEERING
45201ABEARING(FOR STEERING MAIN SHAFT)
UPR
LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
W/POWER STEERING
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
W/POWER STEERING
45214RETAINER, MAIN SHAFT SPRING
45254SHIELD, STEERING COLUMN HOLE
45269RETAINER, MAIN SHAFT BEARING
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
UPR,DARK WINE,RED/MAROON,TRIM3#
UPR,GRAY,GRAY,TRIM1#
UPR,BEIGE,BEIGE,TRIM4#
UPR,BROWN,BROWN,TRIM4#
UPR,GRAY,GRAY,TRIM1#
UPR,DARK WINE,RED/MAROON,TRIM3#
UPR,GRAY,GRAY,TRIM1#
UPR,BEIGE,BEIGE,TRIM4#
UPR,BROWN,BROWN,TRIM4#
UPR,GRAY,GRAY,TRIM1#
LWR,DARK WINE,RED/MAROON,TRIM3#
LWR,GRAY,GRAY,TRIM1#
LWR,BEIGE,BEIGE,TRIM4#
LWR,BROWN,BROWN,TRIM4#
LWR,GRAY,GRAY,TRIM1#
LWR,DARK WINE,RED/MAROON,TRIM3#
LWR,GRAY,GRAY,TRIM1#
LWR,BEIGE,BEIGE,TRIM4#
LWR,BROWN,BROWN,TRIM4#
LWR,GRAY,GRAY,TRIM1#
45281EPLATE, SAFETY CAUTION
45292SEAL, MAIN SHAFT LOWER DUST
45877WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)
45897BOLT, STEERING LOCK SET
9010108070
main90101-08070
9011908560
main90119-08560
9011910277
main90119-10277
9016450048
main90164-50048
9052101001
main90521-01001
9161160818
main91611-60818
9165640618
main91656-40618
9331514012
main93315-14012
9331914008
main93319-14008
9451200800
main94512-00800
9615200300
main96152-00300
29 parts on this diagram · 1 diagram in section
