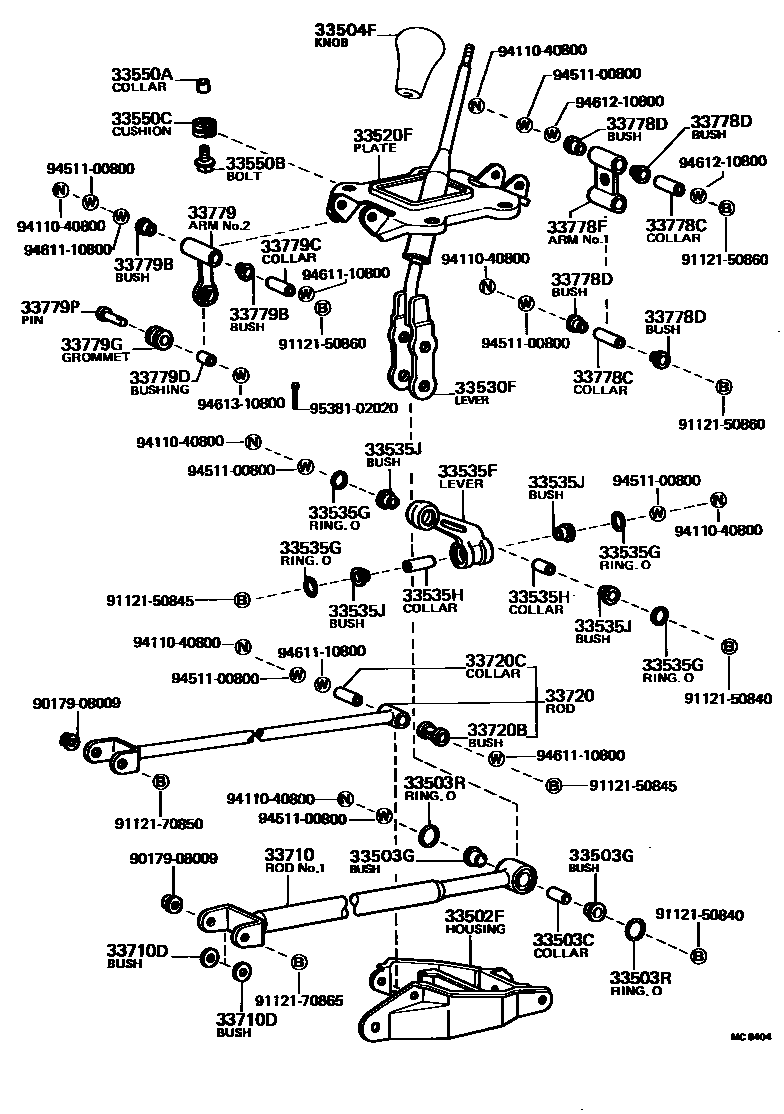

SHIFT LEVER & RETAINER
33502FHOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT)
33503CCOLLAR(FOR SHIFT LEVER SUB-ASSY)
33503GBUSH(FOR SHIFT LEVER)
33503RRING, O(FOR SHIFT LEVER SUB-ASSY)
33504FKNOB SUB-ASSY, SHIFT LEVER
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
BLACK,NEW BLACK,TRIM2#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
33520FPLATE, SHIFT LEVER
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)
33535GRING, 0 (FOR CONTROL SELECT LEVER)
33535HCOLLAR (FOR CONTROL SELECT LEVER)
L=30
L=22
33535JBUSH (FOR CONTROL SELECT LEVER)
33550FLOOR SHIFT ASSY, TRANSMISSION
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
33550ACOLLAR FOR FLOOR SHIFT)
33550BBOLT, W/WASHER (FOR FLOOR SHIFT)
33550CCUSHION(FOR FLOOR SHIFT)
33710ROD ASSY, GEAR SHIFTING, NO.1
33710DBUSH (FOR SHIFTING ROD, NO.1)
33720ROD ASSY, SHIFT LEVER HOUSING
33720BBUSH (FOR SHIFT LEVER HOUSING ROD)
33720CCOLLAR (FOR SHIFT LEVER HOUSING ROD)
33778CCOLLAR(FOR SHIFT LEVER HOUSING ARM, NO.1)
33778DBUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)
33778FARM, SHIFT LEVER HOUSING, NO.1
33779ARM, SHIFT LEVER HOUSING, NO.2
33779BBUSH (FOR SHIFT LEVER HOUSING ARM, NO.2)
33779CCOLLAR (FOR SHIFT LEVER HOUSING ARM, NO.2)
33779DBUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)
33779GGROMMET (FOR SHIFT LEVER HOUSING ARM, NO.2)
33779PPIN, W/HOLE (FOR SHIFT LEVER HOUSING ARM, NO.2)
9017908009
main90179-08009
9112150840
main91121-50840
9112150845
main91121-50845
9112150860
main91121-50860
9112170850
main91121-70850
9112170865
main91121-70865
9411040800
main94110-40800
9451100800
main94511-00800
9461110800
main94611-10800
9461210800
main94612-10800
9461310800
main94613-10800
9538102020
main95381-02020
41 parts on this diagram · 3 diagrams in section
