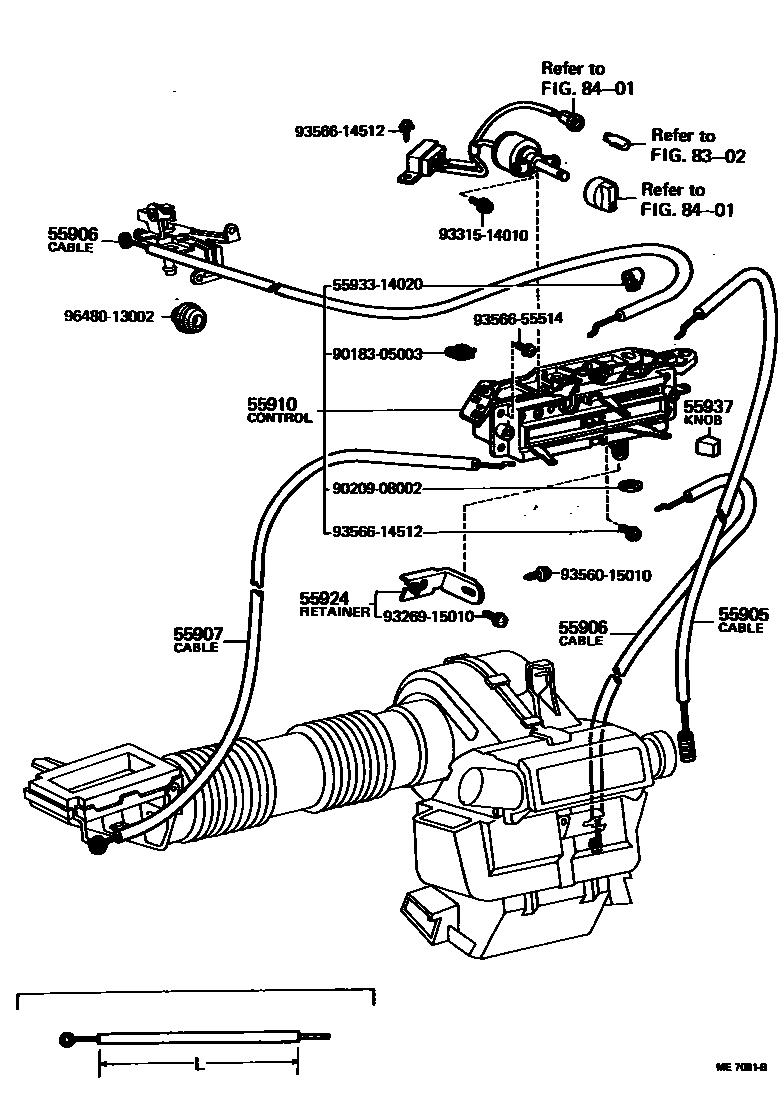

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-16010iAL11..RHD197901-198204

L=190

main55906-16020iAL11..LHD197901-198204

L=320

55906CABLE SUB-ASSY, HEATER CONTROL

main55907-16010iAL11..RHD197901-198204

L=510

main55907-16020iAL11..LHD197901-198204

L=565

main55907-16030iAL11..LHD197901-198204

L=1100

main55909-16010iAL11..RHD197901-198204

L=680

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55908-16010iAL11..RHD197901-198204

L=530

sub55908-12130

main55908-16020iAL11..LHD197901-198204

L=750

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-16901iAL11..LHD197901-198008

EXCL/CABLE

main55910-16902iAL11..RHD197901-198008

EXCL/CABLE

main55910-16903iAL11..LHD197901-198008

EXCL/CABLE,W/BOOST VENTILATOR

main55910-16904iAL11..LHD198008-198204

EXCL/CABLE,W/BOOST VENTILATOR

main55910-16905iAL11..LHD198008-198204

EXCL/CABLE

main55910-16906iAL11..RHD198008-198204

EXCL/CABLE

55924RETAINER, HEATER CONTROL, LOWER

main55924-16010iAL11..RHD197901-198204

55937KNOB, HEATER CONTROL LEVER

main55905-12060×3iAL11197901-198204

sub55905-12070

main55925-10020×3iAL11..2DS,4DS198008-198204

WEST GERMANY SPEC

8302

8401

5593314020GUIDE, LEVER, NO.2

main55933-14020

9018305003

main90183-05003

9020908002

main90209-08002

9326915010

main93269-15010

9331514010

main93315-14010

9356015010

main93560-15010

9356614512

main93566-14512

9356655514

main93566-55514

9648013002

main96480-13002

17 parts on this diagram · 4 diagrams in section
