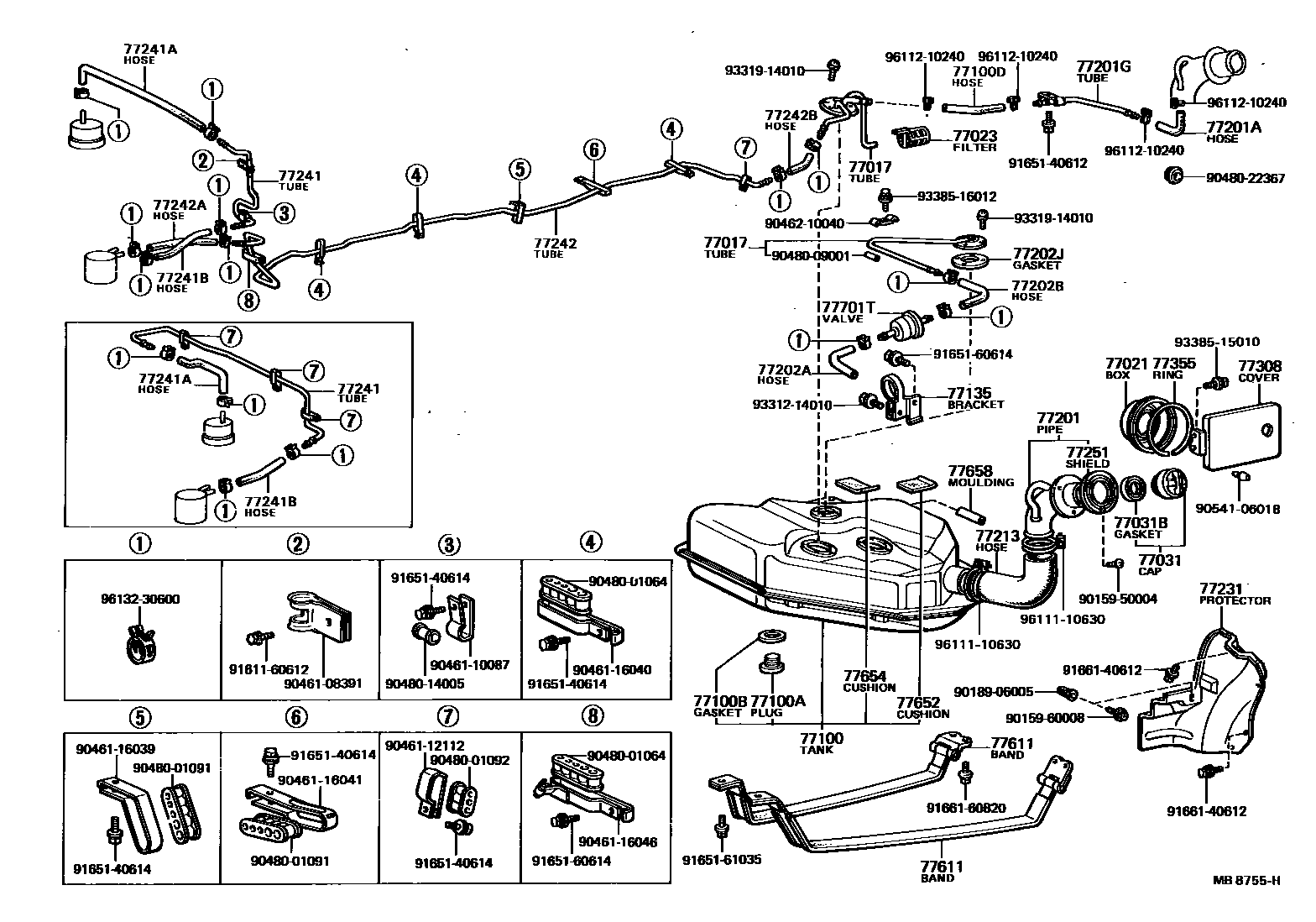

FUEL TANK & TUBE
77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
MAIN OR SUCTION TUBE
MAIN OR SUCTION TUBE
EMISSION TUBE
77021BOX ASSY, FUEL TANK INLET
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77031CAP ASSY, FUEL TANK
77031BGASKET (FOR FUEL TANK CAP)
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
L=200
77135BRACKET, CHECK VALVE
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77201GTUBE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)
77202JGASKET (FOR BREATHER TUBE)
77213HOSE, FUEL TANK SUB INLET
77231PROTECTOR, INLET TUBE
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
L=600(*H,L=440)
77241BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
*H,L=170
77242TUBE, FUEL MAIN, NO.2
77242AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
77242BHOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
77251SHIELD, FUEL TANK, INLET, NO.1
77308COVER SUB-ASSY, FUEL INLET BOX
77611BAND, FUEL TANK
RH
LH
77652CUSHION, FUEL TANK, NO.1
77654CUSHION, FUEL TANK, NO.2
120X135
77658MOULDING, FUEL TANK EDGE
77701TVALVE, CHECK (FOR MAIN FUEL TANK)
9015950004
9015960008
9018906005
9046108391
9046110087
9046112112
main90461-12112
9046116039
9046116040
9046116041
9046116046
main90461-16046
9046210040
9048001064
9048001091
9048001092
9048009001
main90480-09001
9048014005
main90480-14005
9048022367
main90480-22367
9054106018
9161160612
9165140612
9165140614
9165160614
9165161035
9166140612
9166160820
9331214010
9331914010
9338515010
9338516012
9611110630
9611210240
9613230600
64 parts on this diagram · 1 diagram in section
