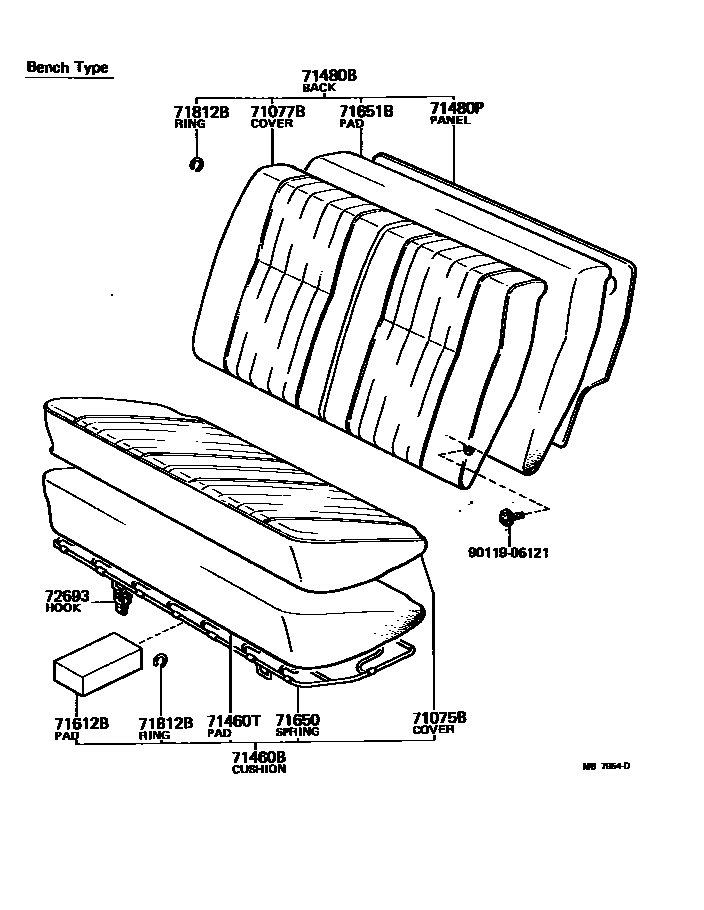

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-16020-01iAL11..(2DS,3DS)..DLX..GEN197901-198008

PF,BLACK,BLACK,TRIM2#

main71075-16020-04iAL11..(2DS,3DS)..DLX..GEN197901-198008

PF,BLUE,BLUE,TRIM8#

main71075-16020-06iAL11..(2DS,3DS)..DLX..GEN197901-198008

PF,LIGHT BROWN,BROWN,TRIM4#

main71075-16060-01iAL11..2DS,3DS197901-198008

FB,BLACK,BLACK,TRIM2#

main71075-16060-04iAL11..2DS,3DS197901-198008

FB,BLUE,BLUE,TRIM8#

main71075-16060-06iAL11..2DS,3DS197901-198008

FB,LIGHT BROWN,BROWN,TRIM4#

main71075-16100-01iAL11..4DS..DLX..GEN197901-198008

PF,BLACK,BLACK,TRIM2#

main71075-16100-04iAL11..4DS..DLX..GEN197901-198008

PF,BLUE,BLUE,TRIM8#

main71075-16100-06iAL11..4DS..DLX..GEN197901-198008

PF,LIGHT BROWN,BROWN,TRIM4#

main71075-16130-01iAL11..4DS197901-198008

FB,BLACK,BLACK,TRIM2#

main71075-16130-04iAL11..4DS197901-198008

FB,BLUE,BLUE,TRIM8#

main71075-16130-06iAL11..4DS197901-198008

FB,LIGHT BROWN,BROWN,TRIM4#

main71075-16320-01iAL11..(2DS,3DS)..GEN198008-198204

PF,BLACK,BLACK,TRIM2#

main71075-16320-04iAL11..(2DS,3DS)..GEN198008-198204

PF,BLUE,BLUE,TRIM8#

main71075-16320-06iAL11..(2DS,3DS)..GEN198008-198204

PF,LIGHT BROWN,BROWN,TRIM4#

main71075-16330-03iAL11..2DS,3DS198008-198204

FB,GRAY,GRAY,TRIM2#

main71075-16330-04iAL11..2DS,3DS198008-198204

FB,BLUE,BLUE,TRIM8#

main71075-16330-06iAL11..2DS,3DS198008-198204

FB,LIGHT BROWN,BROWN,TRIM4#

main71075-16340-01iAL11..4DS..DLX..GEN198008-198204

PF,BLACK,BLACK,TRIM2#

main71075-16340-04iAL11..4DS..DLX..GEN198008-198204

PF,BLUE,BLUE,TRIM8#

main71075-16340-06iAL11..4DS..DLX..GEN198008-198204

PF,LIGHT BROWN,BROWN,TRIM4#

main71075-16350-03iAL11..4DS198008-198204

FB,GRAY,GRAY,TRIM2#

main71075-16350-04iAL11..4DS198008-198204

FB,BLUE,BLUE,TRIM8#

main71075-16350-06iAL11..4DS198008-198204

FB,LIGHT BROWN,BROWN,TRIM4#

main71075-16360-01iAL11..3DS..5F..DLX;AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR198004-198005

FB,BLACK,BLACK,TRIM2#

main71075-16360-04iAL11..3DS..5F..DLX;AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR198004-198005

FB,BLUE,BLUE,TRIM8#

main71075-16360-06iAL11..3DS..5F..DLX;AL11..3DS..4F..STD..EUR198004-198005

FB,LIGHT BROWN,BROWN,TRIM4#

main71075-16370-04iAL11..4DS..5F..DLX198004-198005

FB,BLUE,BLUE,TRIM8#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-16120-01iAL11..(2DS,4DS)..STD197901-198008

PF,BLACK,BLACK,TRIM2#

main71077-16120-04iAL11..(2DS,4DS)..STD197901-198008

PF,BLUE,BLUE,TRIM8#

main71077-16120-06iAL11..(2DS,4DS)..STD197901-198008

PF,LIGHT BROWN,BROWN,TRIM4#

main71077-16131-03iAL11..2DS,4DS198008-198204

FB,GRAY,GRAY,TRIM2#

main71077-16131-04iAL11..2DS,4DS198008-198204

FB,BLUE,BLUE,TRIM8#

main71077-16131-06iAL11..2DS,4DS198008-198204

FB,LIGHT BROWN,BROWN,TRIM4#

main71077-16140-01iAL11..2DS,4DS197901-198008

FB,BLACK,BLACK,TRIM2#

main71077-16140-04iAL11..2DS,4DS197901-198008

FB,BLUE,BLUE,TRIM8#

main71077-16140-06iAL11..2DS,4DS197901-198008

FB,LIGHT BROWN,BROWN,TRIM4#

main71077-16400-01iAL11..(2DS,4DS)..STD198008-198204

PF,BLACK,BLACK,TRIM2#

main71077-16400-04iAL11..(2DS,4DS)..STD198008-198204

PF,BLUE,BLUE,TRIM8#

main71077-16400-06iAL11..(2DS,4DS)..STD198008-198204

PF,LIGHT BROWN,BROWN,TRIM4#

main71077-16440-01iAL11..2DS..5F..STD;AL11..4DS..5F..DLX198004-198005

FB,BLACK,BLACK,TRIM2#

main71077-16440-04iAL11..2DS..5F..STD;AL11..4DS..5F..DLX198004-198005

FB,BLUE,BLUE,TRIM8#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-16020-01iAL11..(2DS,3DS)..DLX..GEN197901-198008

PF,BLACK,BLACK,TRIM2#

sub71460-16021

main71460-16020-04iAL11..(2DS,3DS)..DLX..GEN197901-198008

PF,BLUE,BLUE,TRIM8#

sub71460-16021

main71460-16020-06iAL11..(2DS,3DS)..DLX..GEN197901-198008

PF,LIGHT BROWN,BROWN,TRIM4#

sub71460-16021

main71460-16060-01iAL11..2DS,3DS197901-198008

FB,BLACK,BLACK,TRIM2#

sub71460-16430

main71460-16060-04iAL11..2DS,3DS197901-198008

FB,BLUE,BLUE,TRIM8#

sub71460-16430

main71460-16060-06iAL11..2DS,3DS197901-198008

FB,LIGHT BROWN,BROWN,TRIM4#

sub71460-16430

main71460-16090-01iAL11..4DS..DLX..GEN197901-198008

PF,BLACK,BLACK,TRIM2#

sub71460-16091

main71460-16090-04iAL11..4DS..DLX..GEN197901-198008

PF,BLUE,BLUE,TRIM8#

sub71460-16091

main71460-16090-06iAL11..4DS..DLX..GEN197901-198008

PF,LIGHT BROWN,BROWN,TRIM4#

sub71460-16091

main71460-16120-01iAL11..4DS197901-198008

FB,BLACK,BLACK,TRIM2#

sub71460-16440

main71460-16120-04iAL11..4DS197901-198008

FB,BLUE,BLUE,TRIM8#

sub71460-16440

main71460-16120-06iAL11..4DS197901-198008

FB,LIGHT BROWN,BROWN,TRIM4#

sub71460-16440

main71460-16320-01iAL11..(2DS,3DS)..GEN198008-198204

PF,BLACK,BLACK,TRIM2#

main71460-16320-04iAL11..(2DS,3DS)..GEN198008-198204

PF,BLUE,BLUE,TRIM8#

main71460-16320-06iAL11..(2DS,3DS)..GEN198008-198204

PF,LIGHT BROWN,BROWN,TRIM4#

main71460-16330-03iAL11..2DS,3DS198008-198204

FB,GRAY,GRAY,TRIM2#

main71460-16330-04iAL11..2DS,3DS198008-198204

FB,BLUE,BLUE,TRIM8#

main71460-16330-06iAL11..2DS,3DS198008-198204

FB,LIGHT BROWN,BROWN,TRIM4#

main71460-16340-01iAL11..4DS..DLX..GEN198008-198204

PF,BLACK,BLACK,TRIM2#

main71460-16340-04iAL11..4DS..DLX..GEN198008-198204

FB,BLUE,BLUE,TRIM8#

main71460-16340-06iAL11..4DS..DLX..GEN198008-198204

FB,LIGHT BROWN,BROWN,TRIM4#

main71460-16350-03iAL11..4DS198008-198204

FB,GRAY,GRAY,TRIM2#

main71460-16350-04iAL11..4DS198008-198204

FB,BLUE,BLUE,TRIM8#

main71460-16350-06iAL11..4DS198008-198204

FB,LIGHT BROWN,BROWN,TRIM4#

71460TPAD SUB-ASSY, REAR SEAT CUSHION, NO.1

main71405-16012iAL11..2DS,3DS197901-198204

sub71503-16011

main71405-16022iAL11..4DS197901-198204

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-16110-01iAL11..(2DS,4DS)..STD197901-198008

PF,BLACK,BLACK,TRIM2#

sub71480-16111

main71480-16110-04iAL11..(2DS,4DS)..STD197901-198008

PF,BLUE,BLUE,TRIM8#

sub71480-16111

main71480-16110-06iAL11..(2DS,4DS)..STD197901-198008

PF,LIGHT BROWN,BROWN,TRIM4#

sub71480-16111

main71480-16121-03iAL11..2DS,4DS198008-198204

FB,GRAY,GRAY,TRIM2#

main71480-16121-04iAL11..2DS,4DS198008-198204

FB,BLUE,BLUE,TRIM8#

main71480-16121-06iAL11..2DS,4DS198008-198204

FB,LIGHT BROWN,BROWN,TRIM4#

main71480-16130-01iAL11..2DS,4DS197901-198008

FB,BLACK,BLACK,TRIM2#

main71480-16130-04iAL11..2DS,4DS197901-198008

FB,BLUE,BLUE,TRIM8#

main71480-16130-06iAL11..2DS,4DS197901-198008

FB,LIGHT BROWN,BROWN,TRIM4#

main71480-16400-01iAL11..(2DS,4DS)..STD198008-198204

PF,BLACK,BLACK,TRIM2#

main71480-16400-04iAL11..(2DS,4DS)..STD198008-198204

PF,BLUE,BLUE,TRIM8#

main71480-16400-06iAL11..(2DS,4DS)..STD198008-198204

PF,LIGHT BROWN,BROWN,TRIM4#

71480PPANEL SUB-ASSY, REAR SEATBACK

main71017-16010iAL11..3DS197901-198204

RH

main71017-16020iAL11..4DS..RHD;AL11..4DS..EUR;AL11..4DS..LHD..DLX..GEN197901-198204

RH

main71018-16010iAL11..3DS197901-198204

LH

main71018-16020iAL11..4DS..RHD;AL11..4DS..EUR;AL11..4DS..LHD..DLX..GEN197901-198204

LH

main71087-16010iAL11..2DS,4DS197901-198204

BENCH SEAT

71612BPAD, REAR SEAT CUSHION, B

main71615-16011iAL11197901-198204

71650SPRING ASSY, REAR SEAT CUSHION

main71650-16011iAL11..2DS,3DS197901-198204

main71650-16021iAL11..4DS197901-198204

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-16020iAL11..2DS,4DS197901-198008

sub71507-16021

main71507-16090iAL11..2DS,4DS198008-198204

sub71507-16100

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90468-18071iAL11197901-198204

sub90468-18008

72693HOOK, REAR SEAT CUSHION LOCK

main72693-10020×2iAL11197901-198005

main72693-10021×2iAL11198005-198204

9011906121

main90119-06121

12 parts on this diagram · 4 diagrams in section
