EPC Data

FRONT SEAT & SEAT TRACK

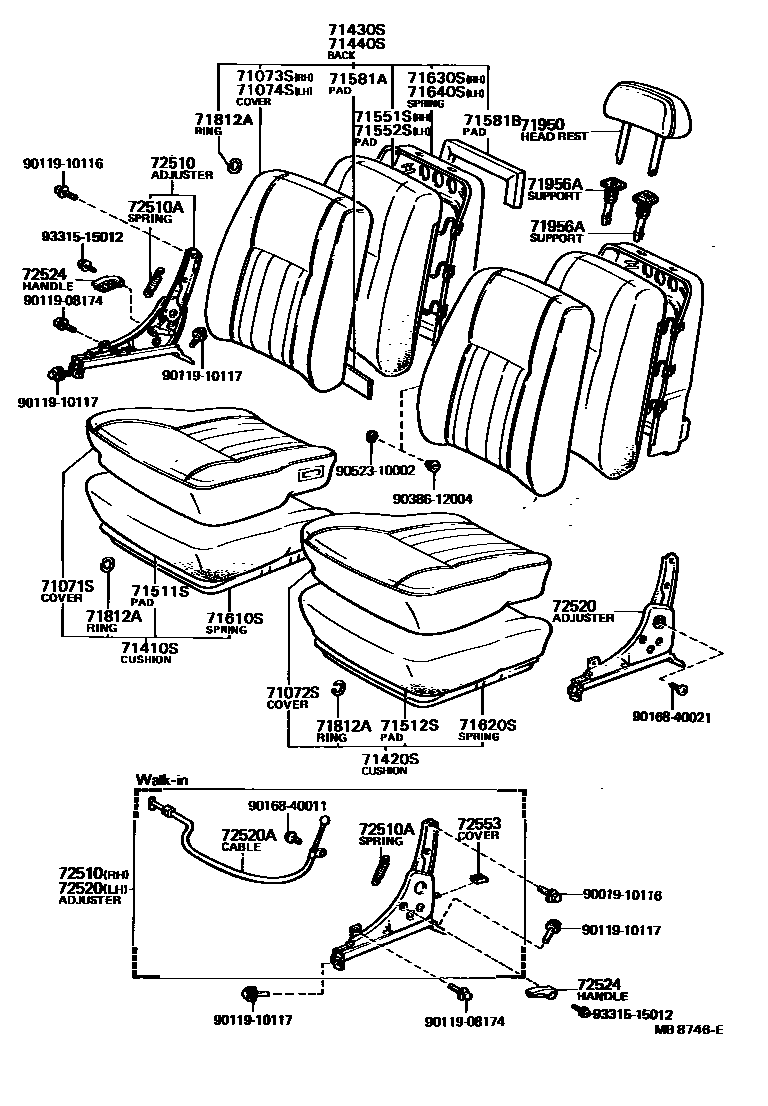

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-16090-01i197901-198008
PF,BLACK,BLACK,TRIM2#
sub71071-16091
main71071-16090-04i197901-198008
PF,BLUE,BLUE,TRIM8#
sub71071-16091
main71071-16090-06i197901-198008
PF,LIGHT BROWN,BROWN,TRIM4#
sub71071-16091
main71071-16092-01i198008-198204
PF,BLACK,BLACK,TRIM2#
main71071-16092-04i198008-198204
PF,BLUE,BLUE,TRIM8#
main71071-16092-06i198008-198204
PF,LIGHT BROWN,BROWN,TRIM4#
main71071-16100-01i197901-198008
FB,BLACK,BLACK,TRIM2#
sub71071-16101
main71071-16100-04i197901-198008
FB,BLUE,BLUE,TRIM8#
sub71071-16101
main71071-16100-06i197901-198008
FB,LIGHT BROWN,BROWN,TRIM4#
sub71071-16101
main71071-16102-03i198008-198204
FB,GRAY,GRAY,TRIM2#
main71071-16102-04i198008-198204
FB,BLUE,BLUE,TRIM8#
main71071-16102-06i198008-198204
FB,LIGHT BROWN,BROWN,TRIM4#
main71071-16220-01i198004-198005
FB,BLACK,BLACK,TRIM2#
main71071-16220-04i198004-198005
FB,BLUE,BLUE,TRIM8#
main71071-16220-06i198004-198005
FB,LIGHT BROWN,BROWN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-16090-01i197901-198008
PF,BLACK,BLACK,TRIM2#
sub71072-16091
main71072-16090-04i197901-198008
PF,BLUE,BLUE,TRIM8#
sub71072-16091
main71072-16090-06i197901-198008
PF,LIGHT BROWN,BROWN,TRIM4#
sub71072-16091
main71072-16092-01i198008-198204
PF,BLACK,BLACK,TRIM2#
main71072-16092-04i198008-198204
PF,BLUE,BLUE,TRIM8#
main71072-16092-06i198008-198204
PF,LIGHT BROWN,BROWN,TRIM4#
main71072-16100-01i197901-198008
FB,BLACK,BLACK,TRIM2#
sub71072-16101
main71072-16100-04i197901-198008
FB,BLUE,BLUE,TRIM8#
sub71072-16101
main71072-16100-06i197901-198008
FB,LIGHT BROWN,BROWN,TRIM4#
sub71072-16101
main71072-16102-03i198008-198204
FB,GRAY,GRAY,TRIM2#
main71072-16102-04i198008-198204
FB,BLUE,BLUE,TRIM8#
main71072-16102-06i198008-198204
FB,LIGHT BROWN,BROWN,TRIM4#
main71072-16220-01i198004-198005
FB,BLACK,BLACK,TRIM2#
main71072-16220-04i198004-198005
FB,BLUE,BLUE,TRIM8#
main71072-16220-06i198004-198005
FB,LIGHT BROWN,BROWN,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-16060-01i197901-198008
FB,BLACK,BLACK,TRIM2#
main71073-16060-04i197901-198008
FB,BLUE,BLUE,TRIM8#
main71073-16060-06i197901-198008
FB,LIGHT BROWN,BROWN,TRIM4#
main71073-16090-01i197901-198008
PF,BLACK,BLACK,TRIM2#
main71073-16090-04i197901-198008
PF,BLUE,BLUE,TRIM8#
main71073-16090-06i197901-198008
PF,LIGHT BROWN,BROWN,TRIM4#
main71073-16091-01i198008-198204
PF,BLACK,BLACK,TRIM2#
main71073-16091-04i198008-198204
PF,BLUE,BLUE,TRIM8#
main71073-16091-06i198008-198204
PF,LIGHT BROWN,BROWN,TRIM4#
main71073-16220-03i198008-198204
FB,GRAY,GRAY,TRIM2#
main71073-16220-04i198008-198204
FB,BLUE,BLUE,TRIM8#
main71073-16220-06i198008-198204
FB,LIGHT BROWN,BROWN,TRIM4#
main71073-16230-01i198004-198005
FB,BLACK,BLACK,TRIM2#
main71073-16230-04i198004-198005
FB,BLUE,BLUE,TRIM8#
main71073-16230-06i198004-198005
FB,LIGHT BROWN,BROWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-16060-01i197901-198008
FB,BLACK,BLACK,TRIM2#
main71073-16060-04i197901-198008
FB,BLUE,BLUE,TRIM8#
main71073-16060-06i197901-198008
FB,LIGHT BROWN,BROWN,TRIM4#
main71073-16090-01i197901-198008
PF,BLACK,BLACK,TRIM2#
main71073-16090-04i197901-198008
PF,BLUE,BLUE,TRIM8#
main71073-16090-06i197901-198008
PF,LIGHT BROWN,BROWN,TRIM4#
main71073-16091-01i198008-198204
PF,BLACK,BLACK,TRIM2#
main71073-16091-04i198008-198204
PF,BLUE,BLUE,TRIM8#
main71073-16091-06i198008-198204
PF,LIGHT BROWN,BROWN,TRIM4#
main71073-16220-03i198008-198204
FB,GRAY,GRAY,TRIM2#
main71073-16220-04i198008-198204
FB,BLUE,BLUE,TRIM8#
main71073-16220-06i198008-198204
FB,LIGHT BROWN,BROWN,TRIM4#
main71073-16230-01i198004-198005
FB,BLACK,BLACK,TRIM2#
main71073-16230-04i198004-198005
FB,BLUE,BLUE,TRIM8#
main71073-16230-06i198004-198005
FB,LIGHT BROWN,BROWN,TRIM4#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-16090-01i197901-198008
PF,BLACK,BLACK,TRIM2#
main71410-16090-04i197901-198008
PF,BLUE,BLUE,TRIM8#
main71410-16090-06i197901-198008
PF,LIGHT BROWN,BROWN,TRIM4#
main71410-16092-01i198008-198204
PF,BLACK,BLACK,TRIM2#
main71410-16092-04i198008-198204
PF,BLUE,BLUE,TRIM8#
main71410-16092-06i198008-198204
PF,LIGHT BROWN,BROWN,TRIM4#
main71410-16100-01i197901-198008
FB,BLACK,BLACK,TRIM2#
main71410-16100-04i197901-198008
FB,BLUE,BLUE,TRIM8#
main71410-16100-06i197901-198008
FB,LIGHT BROWN,BROWN,TRIM4#
main71410-16102-03i198008-198204
FB,GRAY,GRAY,TRIM2#
main71410-16102-04i198008-198204
FB,BLUE,BLUE,TRIM8#
main71410-16102-06i198008-198204
FB,LIGHT BROWN,BROWN,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-16090-01i197901-198008
PF,BLACK,BLACK,TRIM2#
main71420-16090-04i197901-198008
PF,BLUE,BLUE,TRIM8#
main71420-16090-06i197901-198008
PF,LIGHT BROWN,BROWN,TRIM4#
main71420-16092-01i198008-198204
PF,BLACK,BLACK,TRIM2#
main71420-16092-04i198008-198204
PF,BLUE,BLUE,TRIM8#
main71420-16092-06i198008-198204
PF,LIGHT BROWN,BROWN,TRIM4#
main71420-16100-01i197901-198008
FB,BLACK,BLACK,TRIM2#
main71420-16100-04i197901-198008
FB,BLUE,BLUE,TRIM8#
main71420-16100-06i197901-198008
FB,LIGHT BROWN,BROWN,TRIM4#
main71420-16102-03i198008-198204
FB,GRAY,GRAY,TRIM2#
main71420-16102-04i198008-198204
FB,BLUE,BLUE,TRIM8#
main71420-16102-06i198008-198204
FB,LIGHT BROWN,BROWN,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-16020-01i197901-198008
PF,BLACK,BLACK,TRIM2#
main71430-16020-04i197901-198008
PF,BLUE,BLUE,TRIM8#
main71430-16020-06i197901-198008
PF,LIGHT BROWN,BROWN,TRIM4#
main71430-16021-01i198008-198204
PF,BLACK,BLACK,TRIM2#
main71430-16021-04i198008-198204
PF,BLUE,BLUE,TRIM8#
main71430-16021-06i198008-198204
PF,LIGHT BROWN,BROWN,TRIM4#
main71430-16100-01i197901-198008
FB,BLACK,BLACK,TRIM2#
main71430-16100-04i197901-198008
FB,BLUE,BLUE,TRIM8#
main71430-16100-06i197901-198008
FB,LIGHT BROWN,BROWN,TRIM4#
main71430-16240-03i198008-198204
FB,GRAY,GRAY,TRIM2#
main71430-16240-04i198008-198204
FB,BLUE,BLUE,TRIM8#
main71430-16240-06i198008-198204
FB,LIGHT BROWN,BROWN,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-16090-01i197901-198008
PF,BLACK,BLACK,TRIM2#
main71440-16090-04i197901-198008
PF,BLUE,BLUE,TRIM8#
main71440-16090-06i197901-198008
PF,LIGHT BROWN,BROWN,TRIM4#
main71440-16091-01i198008-198204
PF,BLACK,BLACK,TRIM2#
main71440-16091-04i198008-198204
PF,BLUE,BLUE,TRIM8#
main71440-16091-06i198008-198204
PF,LIGHT BROWN,BROWN,TRIM4#
main71440-16100-01i197901-198008
FB,BLACK,BLACK,TRIM2#
main71440-16100-04i197901-198008
FB,BLUE,BLUE,TRIM8#
main71440-16100-06i197901-198008
FB,LIGHT BROWN,BROWN,TRIM4#
main71440-16250-03i198008-198204
FB,GRAY,GRAY,TRIM2#
main71440-16250-04i198008-198204
FB,BLUE,BLUE,TRIM8#
main71440-16250-06i198008-198204
FB,LIGHT BROWN,BROWN,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71401-10180i197901-198008
main71501-10090i198008-198204
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71401-10180i197901-198008
main71501-10090i198008-198204
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71403-10050i198008-198204
sub71403-16041
main71403-16040i197901-198008
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71403-10050i198008-198204
sub71403-16041
main71403-16040i197901-198008
71581APAD, FRONT SEATBACK CORNER, A
main71581-16010i197901-198008
71581BPAD, FRONT SEATBACK CORNER, B
main71582-16020i197901-198008
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-12130i197901-198106
sub71610-16010
sub90523-08001
main71610-16010i198106-198204
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-12130i197901-198106
sub71620-16010
sub90523-08001
main71620-16010i198106-198204
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-10051i198008-198204
sub71630-12310
sub71771-12030
main71630-10070i197901-198008
sub71630-16100
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-10040i197901-198008
sub71640-16040
main71640-10051i198008-198204
sub71640-12270
sub71771-12030
71812ARING, HOG, SMALL (FOR FRONT SEAT)
main90468-18071i197901-198204
sub90468-18008
71950HEADREST ASSY, FRONT SEAT
main71910-10070-01i197901-198008
BLACK,BLACK,TRIM2#
sub71910-10070
main71910-10070-04i197901-198008
BLUE,BLUE,TRIM8#
sub71910-10070
main71910-10070-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub71910-10070
main71910-16011-01i198008-198204
BLACK,BLACK,TRIM2#
main71910-16011-04i198008-198204
BLUE,BLUE,TRIM8#
main71910-16011-06i198008-198204
LIGHT BROWN,BROWN,TRIM4#
71956ASUPPORT, FRONT SEAT HEADREST
main71930-10060-01i197901-198204
W(LOCK),W/LOCK,BLACK,BLACK,TRIM2#
sub71930-10060
main71930-10060-04i197901-198204
W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#
sub71930-10060
main71930-10060-05i197901-198008
W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4#
sub71930-10060
main71930-10060-25i198112-198204
W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4#
sub71930-10060
main71930-10060-26i198008-198112
W(LOCK),W/LOCK,LIGHT BROWN,BROWN,TRIM4#
sub71930-10060
main71931-10010-01i197901-198204
W/O(LOCK),BLACK,BLACK,TRIM2#
sub71931-10010
main71931-10010-04i197901-198204
W/O(LOCK),BLUE,BLUE,TRIM8#
sub71931-10010
main71931-10010-05i197901-198008
W/O(LOCK),BEIGE,BEIGE,TRIM4#
sub71931-10010
main71931-10010-25i198112-198204
W/O(LOCK),BEIGE,BEIGE,TRIM4#
sub71931-10010
main71931-10010-26i198008-198112
W/O(LOCK),LIGHT BROWN,BROWN,TRIM4#
sub71931-10010
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
main72010-16030-01i197901-197906
BLACK,BLACK,TRIM2#
sub72010-16051
sub72525-12080
sub90159-50070
sub72010-16010
main72010-16030-04i197901-197906
BLUE,BLUE,TRIM8#
sub72010-16051
sub72525-12080
sub90159-50070
sub72010-16010
main72010-16030-06i197901-197906
LIGHT BROWN,BROWN,TRIM4#
sub72010-16051
sub72525-12080
sub90159-50070
sub72010-16010
main72010-16040-01i197901-197906
W/WALK-IN,BLACK,BLACK,TRIM2#
sub72010-16061
sub72525-12080
sub90159-50070
main72010-16040-04i197901-197906
W/WALK-IN,BLUE,BLUE,TRIM8#
sub72010-16061
sub72525-12080
sub90159-50070
main72010-16040-06i197901-197906
W/WALK-IN,LIGHT BROWN,BROWN,TRIM4#
sub72010-16061
sub72525-12080
sub90159-50070
main72010-16050-01i197906-198008
BLACK,BLACK,TRIM2#
sub72010-16051
main72010-16050-04i197906-198008
BLUE,BLUE,TRIM8#
sub72010-16051
main72010-16050-06i197906-198008
LIGHT BROWN,BROWN,TRIM4#
sub72010-16051
main72010-16051-01i198008-198204
BLACK,BLACK,TRIM2#
sub72010-16051
main72010-16051-04i198008-198204
BLUE,BLUE,TRIM8#
sub72010-16051
main72010-16051-06i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub72010-16051
main72010-16060-01i197906-198008
W/WALK-IN,BLACK,BLACK,TRIM2#
sub72010-16061
main72010-16060-04i197906-198008
W/WALK-IN,BLUE,BLUE,TRIM8#
sub72010-16061
main72010-16060-06i197906-198008
W/WALK-IN,LIGHT BROWN,BROWN,TRIM4#
sub72010-16061
main72010-16061-01i198008-198204
W/WALK-IN,BLACK,BLACK,TRIM2#
sub72010-16061
main72010-16061-04i198008-198204
W/WALK-IN,BLUE,BLUE,TRIM8#
sub72010-16061
main72010-16061-06i198008-198204
W/WALK-IN,LIGHT BROWN,BROWN,TRIM4#
sub72010-16061
72510ASPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)
main90506-18015i197901-198204
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
main72020-16030-01i197901-197906
BLACK,BLACK,TRIM2#
sub72020-16051
sub72526-12020
sub90159-50070
sub72020-16010
main72020-16030-04i197901-197906
BLUE,BLUE,TRIM8#
sub72020-16051
sub72526-12020
sub90159-50070
sub72020-16010
main72020-16030-06i197901-197906
LIGHT BROWN,BROWN,TRIM4#
sub72020-16051
sub72526-12020
sub90159-50070
sub72020-16010
main72020-16040-01i197901-197906
W/WALK-IN,BLACK,BLACK,TRIM2#
sub72020-16061
sub72526-12020
sub90159-50070
sub72020-16020
main72020-16040-04i197901-197906
W/WALK-IN,BLUE,BLUE,TRIM8#
sub72020-16061
sub72526-12020
sub90159-50070
sub72020-16020
main72020-16040-06i197901-197906
W/WALK-IN,LIGHT BROWN,BROWN,TRIM4#
sub72020-16061
sub72526-12020
sub90159-50070
sub72020-16020
main72020-16050-01i197906-198008
BLACK,BLACK,TRIM2#
sub72020-16051
main72020-16050-04i197906-198008
BLUE,BLUE,TRIM8#
sub72020-16051
main72020-16050-06i197906-198008
LIGHT BROWN,BROWN,TRIM4#
sub72020-16051
main72020-16051-01i198008-198204
BLACK,BLACK,TRIM2#
sub72020-16051
main72020-16051-04i198008-198204
BLUE,BLUE,TRIM8#
sub72020-16051
main72020-16051-06i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub72020-16051
main72020-16060-01i197906-198008
W/WALK-IN,BLACK,BLACK,TRIM2#
sub72020-16061
main72020-16060-04i197906-198008
W/WALK-IN,BLUE,BLUE,TRIM8#
sub72020-16061
main72020-16060-06i197906-198008
W/WALK-IN,LIGHT BROWN,BROWN,TRIM4#
sub72020-16061
main72020-16061-01i198008-198204
W/WALK-IN,BLACK,BLACK,TRIM2#
sub72020-16061
main72020-16061-04i198008-198204
W/WALK-IN,BLUE,BLUE,TRIM8#
sub72020-16061
main72020-16061-06i198008-198204
W/WALK-IN,LIGHT BROWN,BROWN,TRIM4#
sub72020-16061
72520ACABLE, ADJUSTER TO SEAT TRACK
main72210-16010i197901-198204
main72210-16020i197901-198204
72524HANDLE, RECLINING ADJUSTER RELEASE
main72525-12060-01i197901-198008
BLACK,BLACK,TRIM2#
sub72525-12060
main72525-12060-04i197901-198008
BLUE,BLUE,TRIM8#
sub72525-12060
main72525-12060-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub72525-12060
main72525-12080-01i198008-198204
RH,BLACK,BLACK,TRIM2#
sub72525-12080
main72525-12080-04i198008-198204
RH,BLUE,BLUE,TRIM8#
sub72525-12080
main72525-12080-06i198008-198204
RH,LIGHT BROWN,BROWN,TRIM4#
sub72525-12080
main72526-12020-01i198008-198204
LH,BLACK,BLACK,TRIM2#
sub72526-12020
main72526-12020-04i198008-198204
LH,BLUE,BLUE,TRIM8#
sub72526-12020
main72526-12020-06i198008-198204
LH,LIGHT BROWN,BROWN,TRIM4#
sub72526-12020
72553COVER, RECLINING PEDAL
main72553-12020i197901-198204
ARAKAWA
main72553-12030i197901-198204
SHIROKI
9001910116
main90019-10116
9011908174
main90119-08174
9011910116
main90119-10116
9011910117
main90119-10117
9016840011
main90168-40011
9016840021
main90168-40021
9038612004
main90386-12004
9052310002
main90523-10002
9331515012
main93315-15012

36 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
