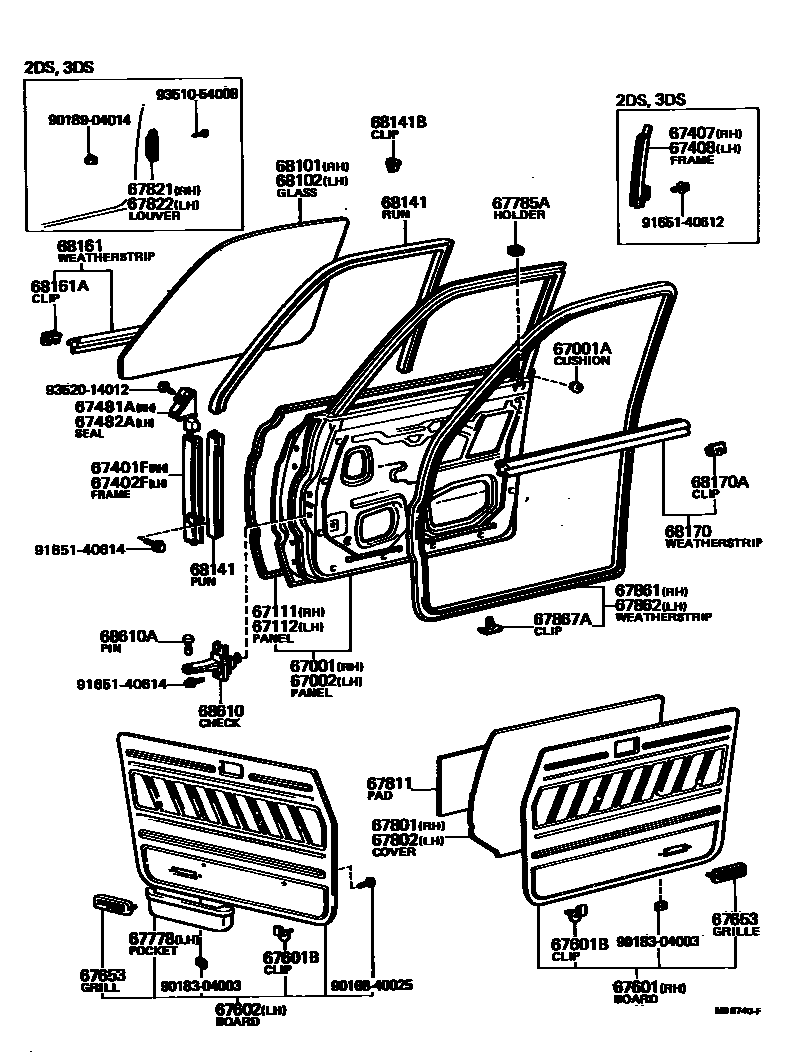

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-16011iAL11..2DS,3DS197901-198204

main67001-16021iAL11..4DS197901-198204

main67001-16030iAL11..2DS,3DS197901-198204

W/MIRROR HOLE

main67001-16040iAL11..4DS197901-198204

W/MIRROR HOLE

67001ACUSHION, FRONT DOOR PANEL

main90541-09121iAL11..4DS..GEN¥230197901-198204

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-16011iAL11..(2DS,3DS)..GEN197901-198204

main67002-16021iAL11..4DS..GEN197901-198204

main67002-16030iAL11..2DS,3DS¥52,100197901-198204

W/MIRROR HOLE

sub67002-16050

main67002-16040iAL11..4DS197901-198204

W/MIRROR HOLE

67111PANEL, FRONT DOOR, OUTER RH

main67111-16010iAL11..2DS,3DS¥28,200197901-198204

sub67111-16050

main67111-16020iAL11..4DS¥23,100197901-198204

sub67111-16070

67112PANEL, FRONT DOOR, OUTER LH

main67112-16010iAL11..2DS,3DS197901-198204

main67112-16020iAL11..4DS197901-198204

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-16010iAL11197901-198204

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-16010iAL11¥1,570197901-198204

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-16010iAL11..2DS,3DS197901-198204

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-16010iAL11..2DS,3DS197901-198204

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-16010iAL11..2DS,3DS¥1,290197901-198204

main67481-16020iAL11..4DS197901-198204

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-16010iAL11..2DS,3DS197901-198204

main67482-16020iAL11..4DS¥1,610197901-198204

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-16011-01iAL11..(2DS,3DS)..STD197901-198204

BLACK,BLACK,TRIM2#

sub67610-16011¥14,200

main67610-16011-04iAL11..(2DS,3DS)..STD197901-198204

BLUE,BLUE,TRIM8#

sub67610-16011¥14,200

main67610-16011-06iAL11..(2DS,3DS)..STD197901-198008

LIGHT BROWN,BROWN,TRIM4#

sub67610-16011¥14,200

main67610-16011-16iAL11..(2DS,3DS)..STD198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub67610-16011¥14,200

main67610-16150-01iAL11..(2DS,3DS)..DLX197901-198204

BLACK,BLACK,TRIM2#

sub67610-16180

sub67610-16150¥16,600

main67610-16150-04iAL11..(2DS,3DS)..DLX197901-198204

BLUE,BLUE,TRIM8#

sub67610-16180

sub67610-16150¥16,600

main67610-16150-06iAL11..(2DS,3DS)..DLX197901-198008

LIGHT BROWN,BROWN,TRIM4#

sub67610-16180

sub67610-16150¥16,600

main67610-16150-16iAL11..(2DS,3DS)..DLX198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub67610-16180

sub67610-16150¥16,600

main67610-16160-01iAL11..4DS..STD197901-198204

BLACK,BLACK,TRIM2#

sub67610-16160

main67610-16160-04iAL11..4DS..STD197901-198204

BLUE,BLUE,TRIM8#

sub67610-16160

main67610-16160-06iAL11..4DS..STD197901-198008

LIGHT BROWN,BROWN,TRIM4#

sub67610-16160

main67610-16160-16iAL11..4DS..STD198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub67610-16160

main67610-16170-01iAL11..4DS..DLX197901-198204

BLACK,BLACK,TRIM2#

sub67610-16260

sub67610-16170¥19,400

main67610-16170-04iAL11..4DS..DLX197901-198204

BLUE,BLUE,TRIM8#

sub67610-16260

sub67610-16170¥19,400

main67610-16170-06iAL11..4DS..DLX197901-198008

LIGHT BROWN,BROWN,TRIM4#

sub67610-16260

sub67610-16170¥19,400

main67610-16170-16iAL11..4DS..DLX198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub67610-16260

sub67610-16170¥19,400

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-11008iAL11¥180197901-198204

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-16011-01iAL11..(2DS,3DS)..STD197901-198204

BLACK,BLACK,TRIM2#

sub67620-16011¥14,200

main67620-16011-04iAL11..(2DS,3DS)..STD197901-198204

BLUE,BLUE,TRIM8#

sub67620-16011¥14,200

main67620-16011-06iAL11..(2DS,3DS)..STD197901-198008

LIGHT BROWN,BROWN,TRIM4#

sub67620-16011¥14,200

main67620-16011-16iAL11..(2DS,3DS)..STD198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub67620-16011¥14,200

main67620-16150-01iAL11..(2DS,3DS)..DLX197901-198204

BLACK,BLACK,TRIM2#

sub67620-16180¥15,900

sub67620-16150¥16,600

main67620-16150-04iAL11..(2DS,3DS)..DLX197901-198204

BLUE,BLUE,TRIM8#

sub67620-16180¥15,900

sub67620-16150¥16,600

main67620-16150-06iAL11..(2DS,3DS)..DLX197901-198008

LIGHT BROWN,BROWN,TRIM4#

sub67620-16180¥15,900

sub67620-16150¥16,600

main67620-16150-16iAL11..(2DS,3DS)..DLX198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub67620-16180¥15,900

sub67620-16150¥16,600

main67620-16160-01iAL11..4DS..STD197901-198204

BLACK,BLACK,TRIM2#

sub67620-16160¥16,000

main67620-16160-04iAL11..4DS..STD197901-198204

BLUE,BLUE,TRIM8#

sub67620-16160¥16,000

main67620-16160-06iAL11..4DS..STD197901-198008

LIGHT BROWN,BROWN,TRIM4#

sub67620-16160¥16,000

main67620-16160-16iAL11..4DS..STD198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub67620-16160¥16,000

main67620-16170-01iAL11..4DS..DLX197901-198204

BLACK,BLACK,TRIM2#

sub67620-16190¥14,600

sub67620-16170¥19,400

main67620-16170-04iAL11..4DS..DLX197901-198204

BLUE,BLUE,TRIM8#

sub67620-16190¥14,600

sub67620-16170¥19,400

main67620-16170-06iAL11..4DS..DLX197901-198008

LIGHT BROWN,BROWN,TRIM4#

sub67620-16190¥14,600

sub67620-16170¥19,400

main67620-16170-16iAL11..4DS..DLX198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub67620-16190¥14,600

sub67620-16170¥19,400

main67620-16180-01iAL11..(2DS,3DS)..DLX..EUR197908-198204

W/DOOR POCKET,BLACK,BLACK,TRIM2#

sub67620-16180¥15,900

main67620-16180-04iAL11..(2DS,3DS)..DLX..EUR197908-198204

W/DOOR POCKET,BLUE,BLUE,TRIM8#

sub67620-16180¥15,900

main67620-16180-06iAL11..(2DS,3DS)..DLX..EUR197908-198008

W/DOOR POCKET,LIGHT BROWN,BROWN,TRIM4#

sub67620-16180¥15,900

main67620-16180-16iAL11..(2DS,3DS)..DLX..EUR198008-198204

W/DOOR POCKET,LIGHT BROWN,BROWN,TRIM4#

sub67620-16180¥15,900

main67620-16190-01iAL11..4DS..DLX..EUR197908-198204

W/DOOR POCKET,BLACK,BLACK,TRIM2#

sub67620-16190¥14,600

main67620-16190-04iAL11..4DS..DLX..EUR197908-198204

W/DOOR POCKET,BLUE,BLUE,TRIM8#

sub67620-16190¥14,600

main67620-16190-06iAL11..4DS..DLX..EUR197908-198008

W/DOOR POCKET,LIGHT BROWN,BROWN,TRIM4#

sub67620-16190¥14,600

main67620-16190-16iAL11..4DS..DLX..EUR198008-198204

W/DOOR POCKET,LIGHT BROWN,BROWN,TRIM4#

sub67620-16190¥14,600

67653GRILLE, FRONT DOOR, VENTILATION

main67653-16010-01iAL11197901-198204

BLACK,BLACK,TRIM2#

sub67653-16010¥680

main67653-16010-04iAL11197901-198204

BLUE,BLUE,TRIM8#

sub67653-16010¥680

main67653-16010-06iAL11197901-198008

LIGHT BROWN,BROWN,TRIM4#

sub67653-16010¥680

main67653-16010-16iAL11198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub67653-16010¥680

67778POCKET, FRONT DOOR TRIM, LH

main67778-22030-01iAL11..DLX..EUR197908-198204

BLACK,BLACK,TRIM2#

sub67778-22030¥4,730

main67778-22030-04iAL11..DLX..EUR197908-198204

BLUE,BLUE,TRIM8#

sub67778-22030¥4,730

main67778-22030-05iAL11..DLX..EUR197908-198008

LIGHT BROWN,BEIGE,TRIM4#

sub67778-22030¥4,730

main67778-22030-06iAL11..DLX..EUR198008-198204

LIGHT BROWN,BROWN,TRIM4#

sub67778-22030¥4,730

67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)

main69751-20030iAL11..4DS¥320197901-198101

sub69751-20031¥330

main69751-20031-01iAL11..4DS198101-198204

BLACK

sub69751-20031¥330

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-16010iAL11..2DS,3DS¥770197901-198204

sub67831-16030

main67831-16020iAL11..4DS¥900197901-198204

sub67831-16040

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67832-16010iAL11..2DS,3DS¥770197901-198204

sub67832-16030

main67832-16020iAL11..4DS¥900197901-198204

sub67832-16040

67811PAD, FRONT DOOR SILENCER

main67811-12040iAL11..4DS¥610197901-198204

sub67812-12010¥640

main67811-20060iAL11..2DS,3DS¥1,410197901-198204

sub67811-12010¥1,220

67821LOUVER, FRONT DOOR VENTILATION, RH

main67821-16010iAL11..2DS,3DS197901-198204

67822LOUVER, FRONT DOOR VENTILATION, LH

main67822-16010iAL11..2DS,3DS197901-198204

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-16030iAL11..4DS197901-198003

main67861-16041iAL11..4DS198003-198204

main67861-16070iAL11..2DS,3DS¥4,790197901-198003

main67861-16080iAL11..2DS,3DS198003-198204

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-16020iAL11..4DS197901-198003

main67862-16031iAL11..4DS198003-198204

main67862-16060iAL11..2DS,3DS¥4,790197901-198003

main67862-16080iAL11..2DS,3DS198003-198204

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30040iAL11¥110197901-198204

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-16010iAL11..(2DS,3DS)..DLX¥12,600197901-198204

*TT,T=4.0

main68111-16020iAL11..(2DS,3DS)..STD¥10,800197901-198204

*TEM,T=4.0

sub68111-16010¥12,600

main68111-16030iAL11..4DS..DLX¥10,900197901-198204

*TT,T=4.0

main68111-16040iAL11..4DS..STD¥9,400197901-198204

*TEM,T=4.0

sub68111-16030¥10,900

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-16010iAL11..(2DS,3DS)..DLX¥12,600197901-198204

*TT,T=4.0

main68112-16020iAL11..(2DS,3DS)..STD¥10,800197901-198204

*TEM,T=4.0

sub68112-16010¥12,600

main68112-16030iAL11..4DS..DLX¥10,900197901-198204

*TT,T=4.0

main68112-16040iAL11..4DS..STD¥9,400197901-198204

*TEM,T=4.0

68141RUN, FRONT DOOR GLASS

main68141-16010iAL11..2DS,3DS197901-198204

L=1879

main68141-16020iAL11..4DS197901-198204

L=1625

main68143-16010iAL11¥750197901-198204

L=425

sub68143-14020¥670

68141BCLIP, DOOR GLASS RUN

main62377-14020iAL11..(2DS,3DS)..EUR¥360197901-198204

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-16010iAL11..(2DS,3DS)..STD¥2,360197901-198204

main68160-16020iAL11..4DS..STD197901-198204

RH

main68210-16010iAL11..4DS..STD¥2,020197901-198204

LH

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-10030iAL11..STD¥240197901-198204

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68160-16010iAL11..2DS,3DS¥2,360197901-198204

main68170-16020iAL11..4DS197901-198204

RH

main68220-16010iAL11..4DS197901-198204

LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030iAL11¥240197901-198204

68610CHECK ASSY, FRONT DOOR

main68610-16010iAL11..4DS197901-198204

main68610-16020iAL11..2DS,3DS197901-198204

68610APIN(FOR FRONT DOOR CHECK)

main68617-22010iAL11¥300197901-198204

sub68617-12010¥280

9016840025

main90168-40025¥70

9018304003

main90183-04003¥210

9018904014

main90189-04014¥120

9165140612

main91651-40612¥70

9165140614

main91651-40614¥160

9351054008

main93510-54008¥120

9352014012

main93520-14012¥170

42 parts on this diagram · 1 diagram in section
