INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

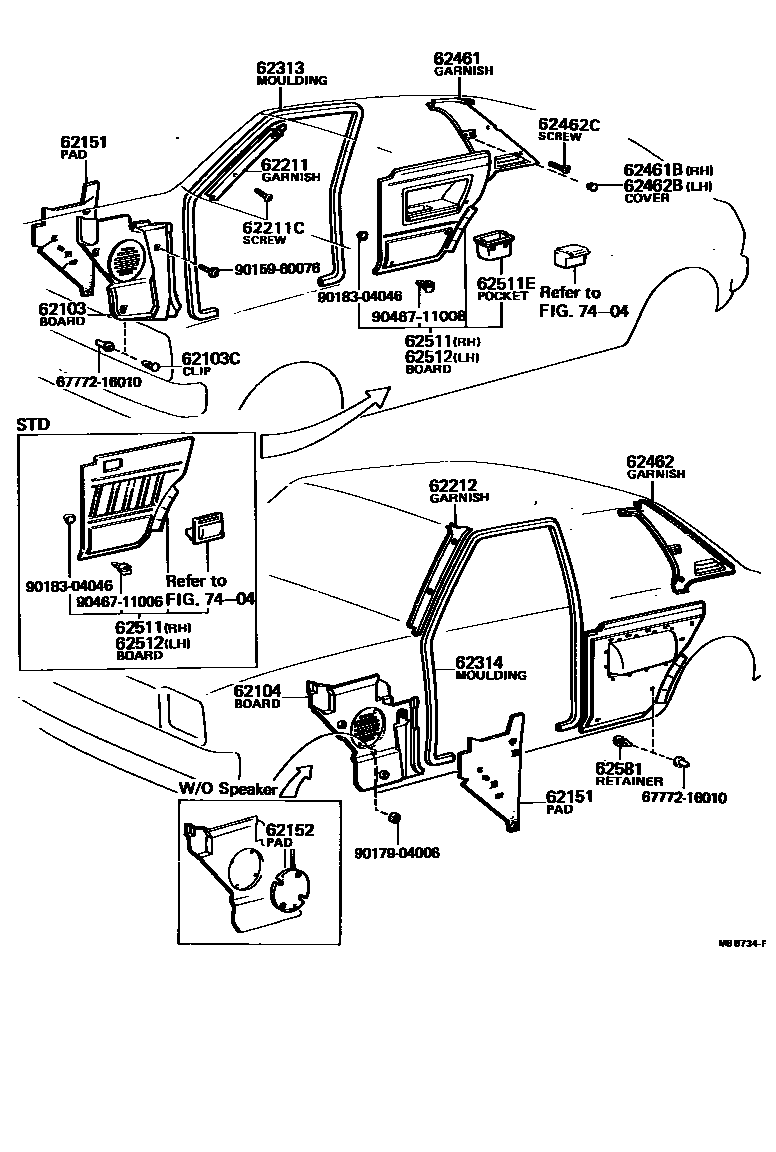

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-16020-01i197901-198204
BLACK,BLACK,TRIM2#
main62101-16020-04i197901-198204
BLUE,BLUE,TRIM8#
main62101-16020-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62101-16020-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main62101-16030-01i197901-198204
BLACK,BLACK,TRIM2#
main62101-16030-04i197901-198204
BLUE,BLUE,TRIM8#
main62101-16030-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62101-16030-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-09065-01i197901-198204
BLACK,BLACK,TRIM2#
sub90467-09065
sub90467-09010
main90467-09065-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub90467-09065
sub90467-09010
main90467-09065-14i197901-198204
BLUE,BLUE,TRIM8#
sub90467-09065
sub90467-09010
main90467-09065-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub90467-09065
sub90467-09010
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-16020-01i197901-198204
BLACK,BLACK,TRIM2#
main62102-16020-04i197901-198204
BLUE,BLUE,TRIM8#
main62102-16020-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62102-16020-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main62102-16030-01i197901-198204
BLACK,BLACK,TRIM2#
main62102-16030-04i197901-198204
BLUE,BLUE,TRIM8#
main62102-16030-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62102-16030-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
62151PAD, COWL SIDE SILENCER, NO.1
main62153-16010i197901-198204
RH
main62154-16010i197901-198204
LH
62152PAD, COWL SIDE SILENCER, NO.2
main62152-16010i197901-198204
62211GARNISH, FRONT PILLAR, RH
main62211-16010-01i197901-198204
BLACK,BLACK,TRIM2#
sub62211-16010
main62211-16010-04i197901-198204
BLUE,BLUE,TRIM8#
sub62211-16010
main62211-16010-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62211-16010
main62211-16010-08i198008-198204
IVORY,IVORY,TRIM2#,4#,8#
sub62211-16010
main62211-16010-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub62211-16010
62211CSCREW, FRONT BODY PILLAR GARNISH
main90164-40002i197901-198204
WHITE
sub93540-44012
main93540-54012i197901-198204
BLACK
62212GARNISH, FRONT PILLAR, LH
main62212-16010-01i197901-198204
BLACK,BLACK,TRIM2#
sub62212-16010
main62212-16010-04i197901-198204
BLUE,BLUE,TRIM8#
sub62212-16010
main62212-16010-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62212-16010
main62212-16010-08i198008-198204
IVORY,IVORY,TRIM2#,4#,8#
sub62212-16010
main62212-16010-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub62212-16010
62313MOULDING, FRONT DOOR OPENING TRIM, RH
main62313-16010-01i197901-198204
BLACK,BLACK,TRIM2#
main62313-16010-04i197901-198204
BLUE,BLUE,TRIM8#
main62313-16010-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62313-16010-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main62313-16020-01i197901-198204
BLACK,BLACK,TRIM2#
main62313-16020-04i197901-198204
BLUE,BLUE,TRIM8#
main62313-16020-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62313-16020-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
62314MOULDING, FRONT DOOR OPENING TRIM, LH
main62313-16010-01i197901-198204
BLACK,BLACK,TRIM2#
main62313-16010-04i197901-198204
BLUE,BLUE,TRIM8#
main62313-16010-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62313-16010-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main62313-16020-01i197901-198204
BLACK,BLACK,TRIM2#
main62313-16020-04i197901-198204
BLUE,BLUE,TRIM8#
main62313-16020-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62313-16020-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
62461GARNISH, ROOF SIDE TRIM, RH
main62471-16010-01i197901-198204
BLACK,BLACK,TRIM2#
main62471-16010-04i197901-198204
BLUE,BLUE,TRIM8#
main62471-16010-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62471-16010-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main62471-16020-01i197901-198008
BLACK,BLACK,TRIM2#
main62471-16020-04i197901-198008
BLUE,BLUE,TRIM8#
main62471-16020-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62471-16020-08i198008-198204
IVORY,IVORY,TRIM2#,4#,8#
main62471-16030-01i197901-198008
BLACK,BLACK,TRIM2#
main62471-16030-04i197901-198008
BLUE,BLUE,TRIM8#
main62471-16030-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62471-16030-08i198008-198204
IVORY,IVORY,TRIM2#,4#,8#
62461BCOVER, ROOF SIDE INNER GARNISH, RH
main90467-12129-01i197901-198008
BLACK,BLACK,TRIM2#
sub90467-12129
main90467-12129-04i197901-198008
BLUE,BLUE,TRIM8#
sub90467-12129
main90467-12129-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub90467-12129
main90467-12129-08i198008-198204
IVORY,IVORY,TRIM2#,4#,8#
sub90467-12129
62462GARNISH, ROOF SIDE TRIM, LH
main62472-16010-01i197901-198204
BLACK,BLACK,TRIM2#
main62472-16010-04i197901-198204
BLUE,BLUE,TRIM8#
main62472-16010-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62472-16010-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main62472-16020-01i197901-198008
BLACK,BLACK,TRIM2#
main62472-16020-04i197901-198008
BLUE,BLUE,TRIM8#
main62472-16020-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62472-16020-08i198008-198204
IVORY,IVORY,TRIM2#,4#,8#
main62472-16030-01i197901-198008
BLACK,BLACK,TRIM2#
main62472-16030-04i197901-198008
BLUE,BLUE,TRIM8#
main62472-16030-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62472-16030-08i198008-198204
IVORY,IVORY,TRIM2#,4#,8#
62462BCOVER, ROOF SIDE INNER GARNISH, LH
main90467-12129-01i197901-198008
BLACK,BLACK,TRIM2#
sub90467-12129
main90467-12129-04i197901-198008
BLUE,BLUE,TRIM8#
sub90467-12129
main90467-12129-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub90467-12129
main90467-12129-08i198008-198204
IVORY,IVORY,TRIM2#,4#,8#
sub90467-12129
62462CSCREW, ROOF SIDE TRIM GARNISH
main90164-45001i198008-198204
WHITE
sub93540-44512
main93540-24510i197901-197906
WHITE
main93540-54510i197901-198204
BLACK
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-16070-01i197901-198204
BLACK,BLACK,TRIM2#
sub62510-16070
sub62510-16210
main62510-16070-04i197901-198204
BLUE,BLUE,TRIM8#
sub62510-16070
sub62510-16210
main62510-16070-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62510-16070
sub62510-16210
main62510-16070-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub62510-16070
sub62510-16210
main62510-16130-01i197901-198204
BLACK,BLACK,TRIM2#
sub62510-16170
sub62510-16130
main62510-16130-04i197901-198204
BLUE,BLUE,TRIM8#
sub62510-16170
sub62510-16130
main62510-16130-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62510-16170
sub62510-16130
main62510-16130-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub62510-16170
sub62510-16130
main62510-16140-01i198008-198204
W/*ELR,BLACK,BLACK,TRIM2#
sub62510-16160
main62510-16140-01i197901-198008
BLACK,BLACK,TRIM2#
sub62510-16160
main62510-16140-04i197901-198008
BLUE,BLUE,TRIM8#
sub62510-16160
main62510-16140-04i198008-198204
W/*ELR,BLUE,BLUE,TRIM8#
sub62510-16160
main62510-16140-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62510-16160
main62510-16140-16i198008-198204
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub62510-16160
main62510-16150-01i197901-198204
BLACK,BLACK,TRIM2#
sub62510-16170
sub62510-16150
main62510-16150-04i197901-198204
BLUE,BLUE,TRIM8#
sub62510-16170
sub62510-16150
main62510-16150-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62510-16170
sub62510-16150
main62510-16150-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub62510-16170
sub62510-16150
main62510-16160-01i198008-198204
W/*ELR,BLACK,BLACK,TRIM2#
main62510-16160-01i197901-198008
BLACK,BLACK,TRIM2#
main62510-16160-04i198008-198204
W/*ELR,BLUE,BLUE,TRIM8#
main62510-16160-04i197901-198008
BLUE,BLUE,TRIM8#
main62510-16160-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62510-16160-16i198008-198204
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
main62510-16170-01i197901-198204
W/ASH RECEPTACLE,BLACK,BLACK,TRIM2#
main62510-16170-04i197901-198204
W/ASH RECEPTACLE,BLUE,BLUE,TRIM8#
main62510-16170-06i197901-198008
W/ASH RECEPTACLE,LIGHT BROWN,BROWN,TRIM4#
main62510-16170-16i198008-198204
W/ASH RECEPTACLE,LIGHT BROWN,BROWN,TRIM4#
main62510-16180-01i197901-198204
BLACK,BLACK,TRIM2#
main62510-16180-04i197901-198204
BLUE,BLUE,TRIM8#
main62510-16180-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62510-16180-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main62510-16190-01i197901-198008
BLACK,BLACK,TRIM2#
sub62510-16210
main62510-16190-04i197901-198008
BLUE,BLUE,TRIM8#
sub62510-16210
main62510-16190-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62510-16210
main62510-16200-01i197901-198204
BLACK,BLACK,TRIM2#
sub62510-16200
main62510-16200-04i197901-198204
BLUE,BLUE,TRIM8#
sub62510-16200
main62510-16200-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62510-16200
main62510-16200-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub62510-16200
main62510-16210-01i197901-198204
W/ASH RECEPTACLE,BLACK,BLACK,TRIM2#
main62510-16210-04i197901-198204
W/ASH RECEPTACLE,BLUE,BLUE,TRIM8#
main62510-16210-06i197901-198008
W/ASH RECEPTACLE,LIGHT BROWN,BROWN,TRIM4#
main62510-16210-16i198008-198204
W/ASH RECEPTACLE,LIGHT BROWN,BROWN,TRIM4#
62511EPOCKET, QUARTER TRIM
main62526-12030-10i198008-198204
LH,LIGHT BROWN,LIGHT BROWN,TRIM4#
sub62526-12030
main62526-12030-31i197901-198204
LH,BLACK,BLACK,TRIM2#
sub62526-12030
main62526-12030-34i197901-198204
LH,BLUE,BLUE,TRIM8#
sub62526-12030
main62526-12030-56i197901-198008
LH,LIGHT BROWN,BROWN,TRIM4#
sub62526-12030
main62594-16010-01i197901-198204
RH,BLACK,BLACK,TRIM2#
sub62594-16010
main62594-16010-04i197901-198204
RH,BLUE,BLUE,TRIM8#
sub62594-16010
main62594-16010-06i197901-198008
RH,LIGHT BROWN,BROWN,TRIM4#
sub62594-16010
main62594-16010-16i198008-198204
RH,LIGHT BROWN,BROWN,TRIM4#
sub62594-16010
62512BOARD, QUARTER INSIDE TRIM, LH
main62520-16010-01i197901-198204
BLACK,BLACK,TRIM2#
main62520-16010-04i197901-198204
BLUE,BLUE,TRIM8#
main62520-16010-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62520-16010-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main62520-16070-01i197901-198204
BLACK,BLACK,TRIM2#
sub62520-16070
main62520-16070-04i197901-198204
BLUE,BLUE,TRIM8#
sub62520-16070
main62520-16070-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62520-16070
main62520-16070-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub62520-16070
main62520-16080-01i197901-198204
BLACK,BLACK,TRIM2#
main62520-16080-04i197901-198204
BLUE,BLUE,TRIM8#
main62520-16080-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
main62520-16080-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
main62520-16130-01i197901-198204
BLACK,BLACK,TRIM2#
sub62520-16150
sub62520-16130
main62520-16130-04i197901-198204
BLUE,BLUE,TRIM8#
sub62520-16150
sub62520-16130
main62520-16130-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62520-16150
sub62520-16130
main62520-16130-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub62520-16150
sub62520-16130
main62520-16140-01i198008-198204
W/*ELR,BLACK,BLACK,TRIM2#
sub62520-16221
main62520-16140-01i197901-198008
BLACK,BLACK,TRIM2#
sub62520-16221
main62520-16140-04i198008-198204
W/*ELR,BLUE,BLUE,TRIM8#
sub62520-16221
main62520-16140-04i197901-198008
BLUE,BLUE,TRIM8#
sub62520-16221
main62520-16140-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62520-16221
main62520-16140-16i198008-198204
W/*ELR,LIGHT BROWN,BROWN,TRIM4#
sub62520-16221
main62520-16150-01i197901-198204
BLACK,BLACK,TRIM2#
sub62520-16150
main62520-16150-04i197901-198204
BLUE,BLUE,TRIM8#
sub62520-16150
main62520-16150-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62520-16150
main62520-16150-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub62520-16150
main62520-16160-01i197901-198204
BLACK,BLACK,TRIM2#
sub62520-16231
main62520-16160-04i197901-198204
BLUE,BLUE,TRIM8#
sub62520-16231
main62520-16160-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62520-16231
main62520-16160-16i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub62520-16231
main62520-16170-01i197901-198008
BLACK,BLACK,TRIM2#
sub62520-16070
main62520-16170-04i197901-198008
BLUE,BLUE,TRIM8#
sub62520-16070
main62520-16170-06i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62520-16070
62581RETAINER, QUARTER TRIM
main62581-30010-11i197901-198204
BLACK,BLACK,TRIM2#
sub62581-30010
main62581-30010-14i197901-198204
BLUE,BLUE,TRIM8#
sub62581-30010
main62581-30010-46i197901-198008
LIGHT BROWN,BROWN,TRIM4#
sub62581-30010
main62581-30010-56i198008-198204
LIGHT BROWN,BROWN,TRIM4#
sub62581-30010
7404
6777216010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-16010
9015960076
main90159-60076
9017904006
main90179-04006
9018304046
main90183-04046
9046711006
main90467-11006
9046711008
main90467-11008

26 parts on this diagram · 3 diagrams in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
