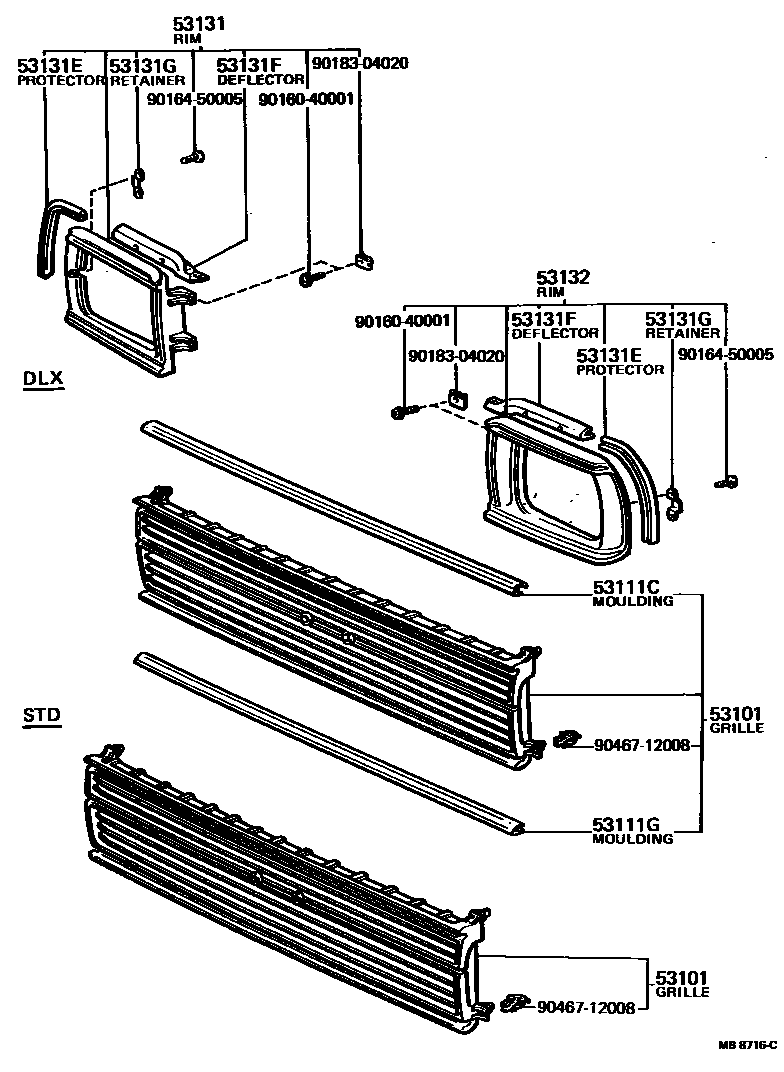

RADIATOR GRILLE

0001 1 0002 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-16050iAL11..DLX197901-198008

main53111-16070iAL11..STD197901-198008

main53111-19375iAL11198008-198204

sub53111-16052

53111CMOULDING, RADIATOR GRILLE, UPPER

main53121-16010iAL11..DLX197901-198008

53111GMOULDING, RADIATOR GRILLE, LOWER

main53122-16010iAL11..DLX197901-198008

53131RIM, HEADLAMP, RH

main53031-19135iAL11..DLX197901-198008

main53031-19136iAL11198008-198204

main53031-19185iAL11..STD197901-198008

sub53031-19135

53131EPROTECTOR, HEADLAMP DOOR

main53138-16010iAL11197901-198008

RH

main53139-16010iAL11197901-198008

LH

main53139-16011iAL11198008-198204

53131FDEFLECTOR, HEADLAMP DOOR

main53183-16020iAL11197901-198008

RH

main53184-16020iAL11197901-198008

LH

53131GRETAINER, HEADLAMP DOOR

main53137-16010iAL11197901-198008

53132RIM, HEADLAMP, LH

main53032-19125iAL11..DLX197901-198008

main53032-19126iAL11198008-198204

main53032-19175iAL11..STD197901-198008

sub53032-19125

9016040001

main90160-40001

9016450005

main90164-50005

9018304020

main90183-04020

9046712008

main90467-12008

12 parts on this diagram · 2 diagrams in section
