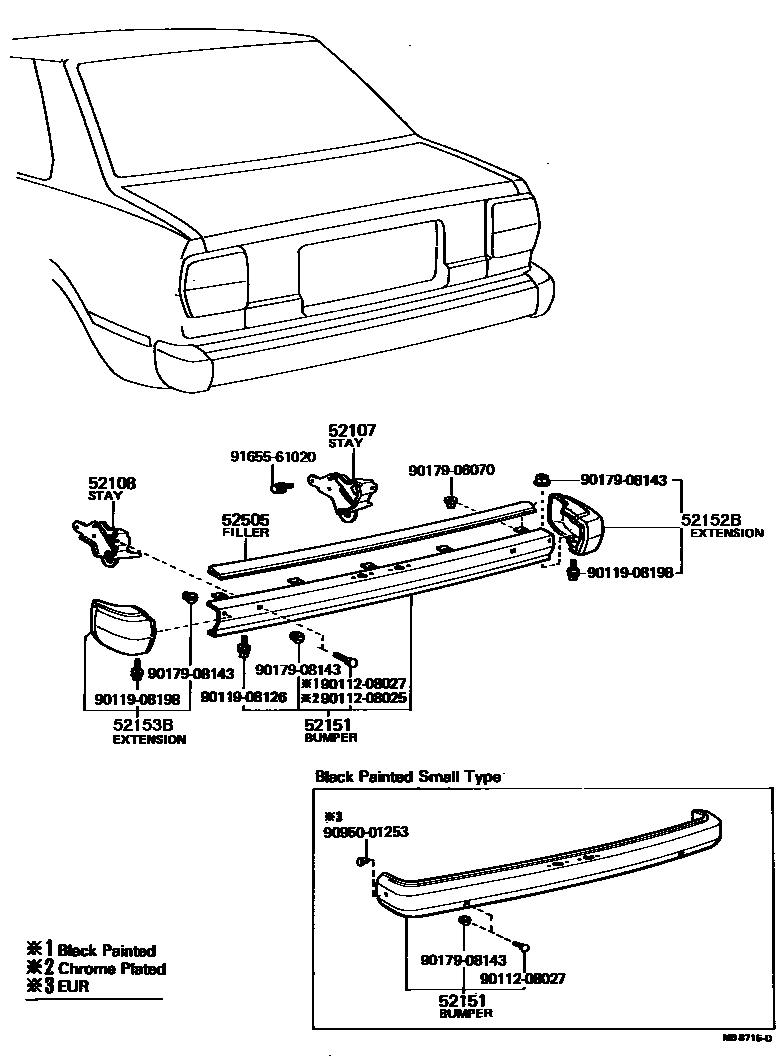

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-16010iAL11..STD197901-198008

SMALL TYPE

main52015-16030iAL11¥3,840197901-198008

LARGE TYPE

main52015-16031iAL11¥3,260198008-198204

LARGE TYPE

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-16010iAL11..STD197901-198008

SMALL TYPE

main52016-16030iAL11¥3,840197901-198008

LARGE TYPE

main52016-16031iAL11¥3,260198008-198204

LARGE TYPE

52151BUMPER ASSY, REAR

main52019-19015iAL11..DLX..GEN¥24,000197901-197912

CHROME PLATED

sub52019-19016¥24,000

main52019-19016iAL11..DLX..GEN¥24,000197912-198008

CHROME PLATED

sub52019-16011

main52019-19025iAL11¥24,000197901-197912

BLACK PAINTED LARGE TYPE

sub52019-19026¥24,000

main52019-19026iAL11¥24,000197912-198008

BLACK PAINTED LARGE TYPE

sub52019-16021¥28,000

main52151-19555iAL11..STD197901-198008

BLACK PAINTED SMALL TYPE

sub52151-16060

main52151-19645iAL11..DLX..GEN¥24,000198008-198204

CHROME PLATED,W/PAD

sub52151-16050

main52151-19655iAL11¥24,000198008-198204

BLACK PAINTED

sub52151-16070¥26,500

52152BEXTENSION, REAR BUMPER, RH

main52106-19105iAL11¥8,900197901-198008

sub52106-19106¥8,900

main52106-19215iAL11¥7,800198008-198204

52153BEXTENSION, REAR BUMPER, LH

main52107-19135iAL11¥8,900197901-198008

sub52107-19136¥8,900

main52107-19245iAL11¥7,800198008-198204

52505FILLER SUB-ASSY, REAR BUMPER

main52501-16020iAL11¥4,270197901-198008

9011208025

main90112-08025¥370

9011208027

main90112-08027¥370

9011908126

main90119-08126¥200

9011908198

main90119-08198¥160

9017906070

main90179-06070¥180

9017908143

main90179-08143¥110

9095001253

main90950-01253¥400

9165561020

main91655-61020¥190

14 parts on this diagram · 2 diagrams in section
