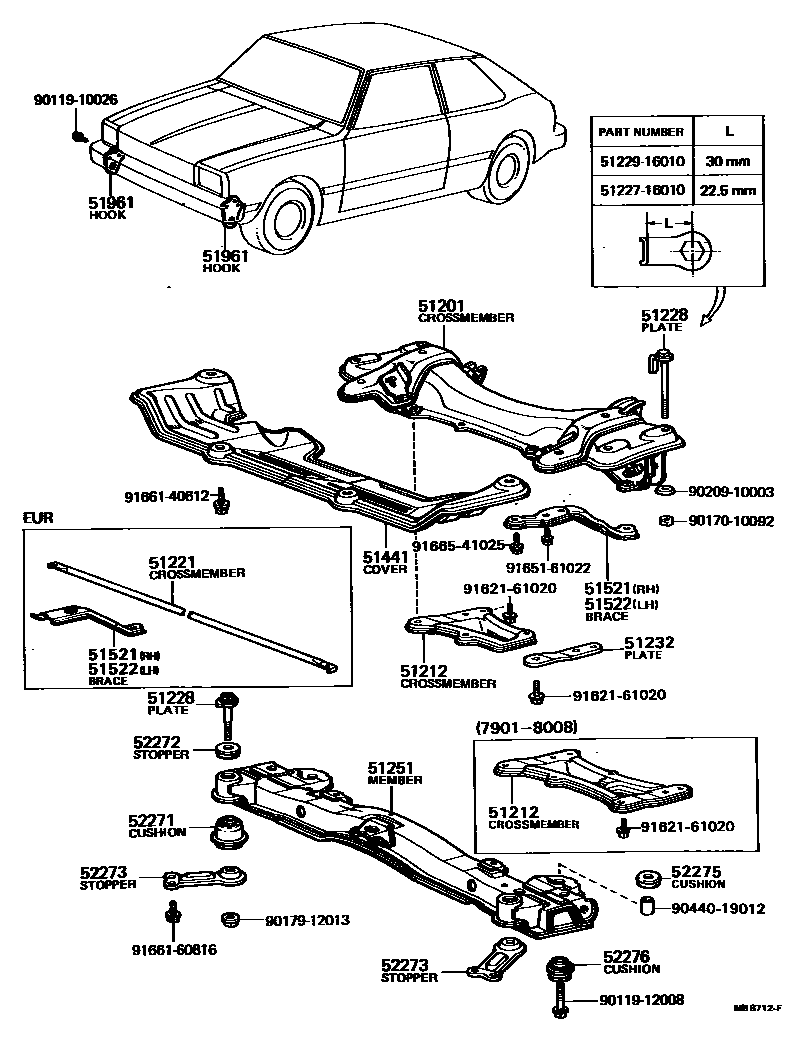

SUSPENSION CROSSMEMBER & UNDER COVER
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51221CROSSMEMBER, FRONT SUSPENSION, NO.1
51228PLATE, SUSPENSION MEMBER SET
FR,L=22.5
FR,L=30
RR
51232PLATE, FRONT SUSPENSION MEMBER
51521BRACE, LOWER ARM BRACKET, RH
51522BRACE, LOWER ARM BRACKET, LH
51961HOOK, NO.1
RH
LH
LH
52271CUSHION, REAR SUSPENSION MEMBER
52272STOPPER, REAR SUSPENSION MEMBER, UPPER
52273STOPPER, REAR SUSPENSION MEMBER, LOWER
RH
LH
52275CUSHION,REAR SUSPENSION MEMBER, REAR UPPER
52276CUSHION, REAR SUSPENSION MEMBER, REAR LOWER
5122716010WEIGHT, FRONT SUSPENSION MEMBER DAMPER
main51227-16010
5122916010BOLT, SUSPENSION MEMBER SET
main51229-16010
9011910026
main90119-10026
9011912008
main90119-12008
9017010092
main90170-10092
9017912013
main90179-12013
9020910003
main90209-10003
9044019012
main90440-19012
9162161020
main91621-61020
9165161022
main91651-61022
9166140612
main91661-40612
9166160816
main91661-60816
9166541025
main91665-41025
28 parts on this diagram · 1 diagram in section
