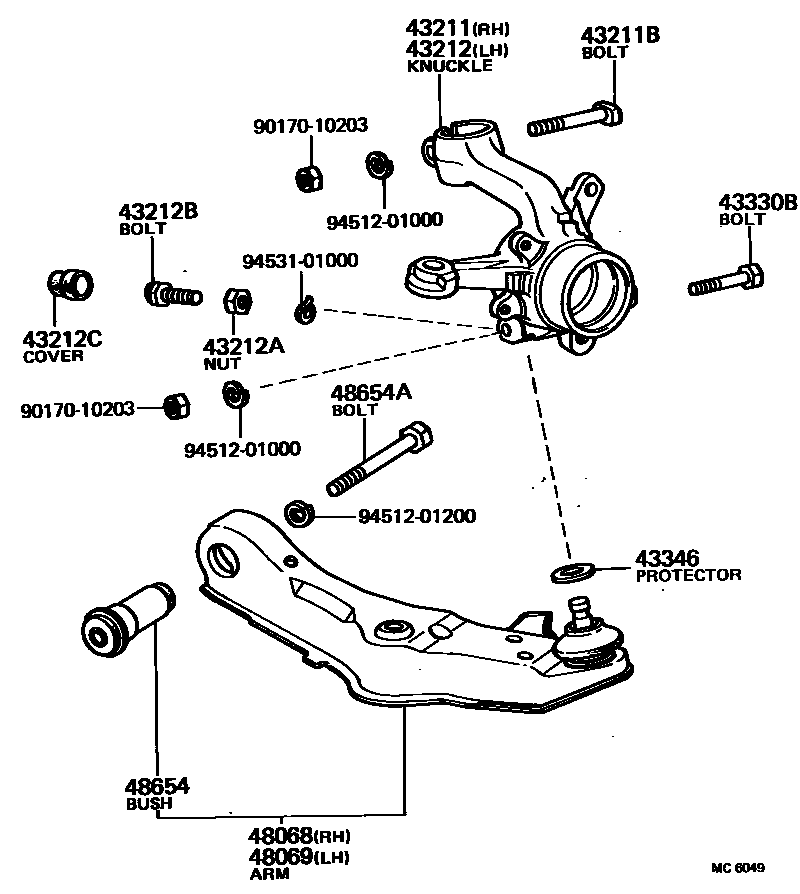

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-16010iAL11197901-198204

43211BBOLT (FOR ABSORBER SETTING)

main90109-10029iAL11197901-198204

43212KNUCKLE, STEERING, LH

main43212-16010iAL11197901-198204

43212ANUT (FOR FRONT KNUCKLE STOPPER)

main90170-10082iAL11197901-198204

43212BBOLT (FOR FRONT KNUCKLE STOPPER)

main90106-10032iAL11197901-198204

43212CCOVER, FRONT KNUCKLE STOPPER

main45619-14020iAL11197901-198204

43330BBOLT, HEXAGON (FOR LOWER BALL JOINT SET)

main90101-10051iAL11197901-198204

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-16010iAL11197901-198204

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-16010iAL11197901-198204

sub48068-16020

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-16010iAL11197901-198204

sub48069-16020

48654BUSH, LOWER ARM

main48654-16010iAL11197901-198204

48654ABOLT, HEXAGON(FOR LOWER ARM)

main90101-12035iAL11197901-198204

9017010203

main90170-10203

9451201000

main94512-01000

9451201200

main94512-01200

9453101000

main94531-01000

16 parts on this diagram · 1 diagram in section
