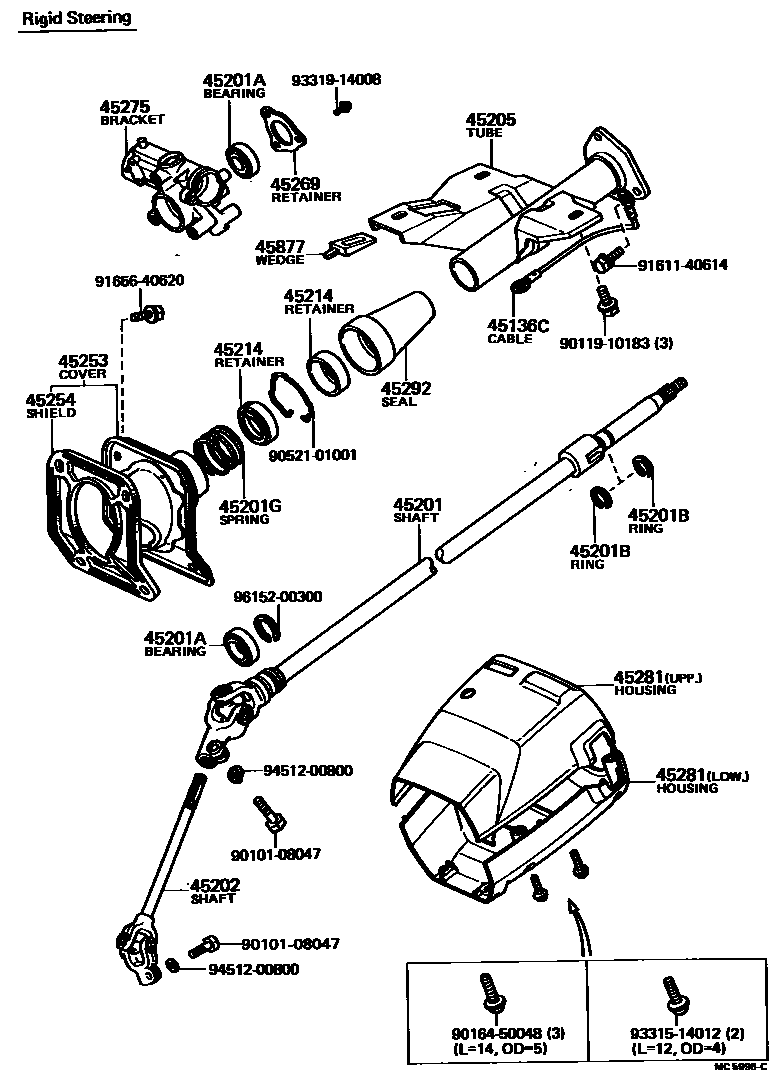

STEERING COLUMN & SHAFT
45136CCABLE, BOND(FOR HORN EARTH)
45201SHAFT SUB-ASSY, STEERING MAIN
COLAPSIBLE
RIGID
45201ABEARING(FOR STEERING MAIN SHAFT)
UPR
LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,T=1.2
T=1.35-1.45,T=1.4
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45205TUBE SUB-ASSY, STEERING COLUMN
COLAPSIBLE
RIGID
45214RETAINER, MAIN SHAFT SPRING
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45275BRACKET, STEERING COLUMN, UPPER
45281HOUSING, STEERING COLUMN
45292SEAL, MAIN SHAFT LOWER DUST
45877WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING)
9010108047
main90101-08047
9011910183
main90119-10183
9016450048
main90164-50048
9052101001
main90521-01001
9161140614
main91611-40614
9165640620
main91656-40620
9331514012
main93315-14012
9331914008
main93319-14008
9451200800
main94512-00800
9615200300
main96152-00300
25 parts on this diagram · 4 diagrams in section
