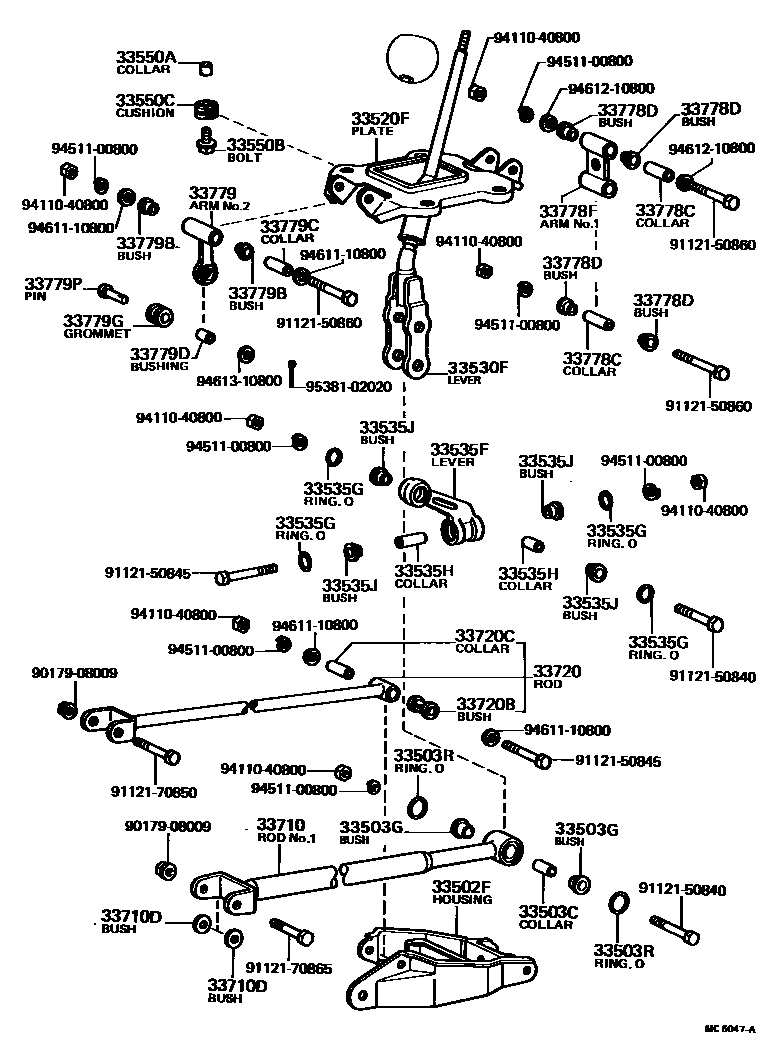

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33502FHOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT)

main33502-16010iAL11..MTM197901-198204

33503CCOLLAR(FOR SHIFT LEVER SUB-ASSY)

main90387-08010iAL11..MTM197901-198204

33503GBUSH(FOR SHIFT LEVER)

main90389-11002×2iAL11..MTM197901-198204

33503RRING, O(FOR SHIFT LEVER SUB-ASSY)

main90301-16007×2iAL11..MTM197901-198010

main96710-02018×2iAL11..MTM198010-198204

sub96711-19018

33520FPLATE, SHIFT LEVER

main33521-16010iAL11..MTM197901-198204

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-16020iAL11..RHD..3FC197908-198204

main33503-16030iAL11..LHD..3FC197908-198204

main33530-16010iAL11197901-197906

main33530-16011iAL11..RHD..4F197906-198204

main33530-16020iAL11..LHD..MTM197906-198108

main33530-16021iAL11..LHD..MTM198108-198204

33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)

main33535-16010iAL11..MTM197901-198204

33535GRING, 0 (FOR CONTROL SELECT LEVER)

main90301-16007×4iAL11..MTM197901-198010

main96710-02018×4iAL11..MTM198010-198204

sub96711-19018

33535HCOLLAR (FOR CONTROL SELECT LEVER)

main90387-08009iAL11..MTM197901-198204

L=30

main90387-08010iAL11..MTM197901-198204

L=22

33535JBUSH (FOR CONTROL SELECT LEVER)

main90389-11002×4iAL11..MTM197901-198204

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-16020iAL11..RHD..3FC197908-198008

main33550-16030iAL11..LHD..3FC197908-198008

main33550-16060iAL11..RHD..3FC198008-198204

main33550-16070-01iAL11..LHD..3FC198008-198204

BLACK,BLACK,TRIM2#

main33550-16070-04iAL11..LHD..3FC198008-198112

BLUE,BLUE,TRIM8#

main33550-16070-06iAL11..LHD..3FC198008-198204

LIGHT BROWN,BROWN,TRIM4#

main33550-16070-14iAL11..LHD..3FC198112-198204

BLUE,BLUE,TRIM8#

33550ACOLLAR FOR FLOOR SHIFT)

main90387-06003×4iAL11..MTM197901-198204

33550BBOLT, W/WASHER (FOR FLOOR SHIFT)

main90119-06182×4iAL11..MTM197901-198204

33550CCUSHION(FOR FLOOR SHIFT)

main90541-13002×4iAL11..MTM197901-198204

33710ROD ASSY, GEAR SHIFTING, NO.1

main33710-16011iAL11..MTM197901-198204

33710DBUSH (FOR SHIFTING ROD, NO.1)

main90386-11003×2iAL11197901-197902

main90386-11005×2iAL11..MTM197902-198204

33720ROD ASSY, SHIFT LEVER HOUSING

main33770-16010iAL11..MTM197901-198204

33720BBUSH (FOR SHIFT LEVER HOUSING ROD)

main90385-10004iAL11..MTM197901-198204

33720CCOLLAR (FOR SHIFT LEVER HOUSING ROD)

main90387-08012iAL11..MTM197901-198204

33778CCOLLAR(FOR SHIFT LEVER HOUSING ARM, NO.1)

main90387-08011×2iAL11..MTM197901-198204

33778DBUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)

main90386-11002×4iAL11..MTM197901-198204

33778FARM, SHIFT LEVER HOUSING, NO.1

main33778-16010iAL11..MTM197901-198204

33779ARM, SHIFT LEVER HOUSING, NO.2

main33779-16010iAL11..MTM197901-198204

33779BBUSH (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90386-11002×2iAL11..MTM197901-198204

33779CCOLLAR (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90387-08011iAL11..MTM197901-198204

33779DBUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90389-08005iAL11..MTM197901-198204

33779GGROMMET (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90480-17177iAL11..MTM197901-198204

33779PPIN, W/HOLE (FOR SHIFT LEVER HOUSING ARM, NO.2)

main90240-08015iAL11..MTM197901-198204

9017908009

main90179-08009

9112150840

main91121-50840

9112150845

main91121-50845

9112150860

main91121-50860

9112170850

main91121-70850

9112170865

main91121-70865

9411040800

main94110-40800

9451100800

main94511-00800

9461110800

main94611-10800

9461210800

main94612-10800

9461310800

main94613-10800

9538102020

main95381-02020

40 parts on this diagram · 3 diagrams in section
