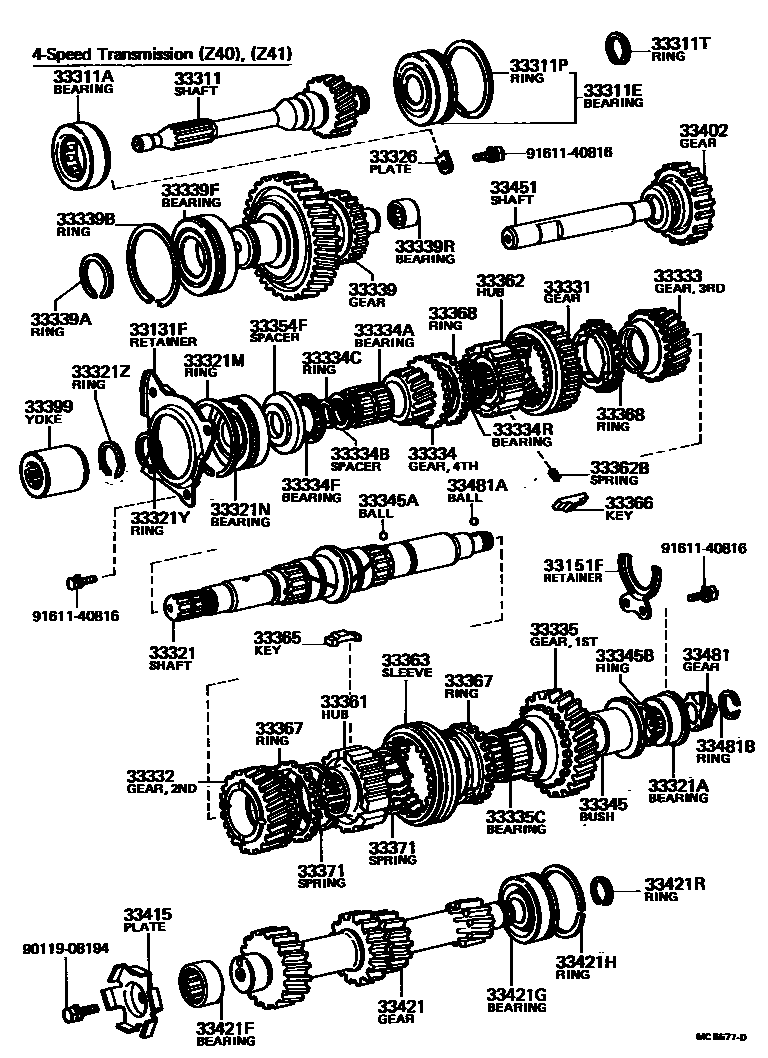

TRANSMISSION GEAR (MTM)
33131FRETAINER, OUTPUT SHAFT BEARING, FRONT
33151FRETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
T=2.10-2.15,T=2.10-2.15
T=2.25-2.30,T=2.25-2.30
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321MRING, SHAFT SNAP (FOR BEARING)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321YRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT BEARING)
T=2.45-2.5,T=2.45-2.50
T=2.50-2.55,T=2.50-2.55
T=2.10-2.15,T=2.10-2.15
T=2.20-2.25,T=2.20-2.25
T=2.15-2.20,T=2.15-2.20
T=2.25-2.30,T=2.25-2.30
T=2.30-2.35,T=2.30-2.35
T=2.35-2.40,T=2.35-2.40
T=2.40-2.45,T=2.40-2.45
33321ZRING, SHAFT SNAP (FOR OUTPUT SHAFT FRONT)
T=2.50-2.55,T=2.50-2.55
T=2.10-2.15,T=2.10-2.15
T=2.20-2.25,T=2.20-2.25
T=2.15-2.20,T=2.15-2.20
T=2.25-2.30,T=2.25-2.30
T=2.30-2.35,T=2.30-2.35
T=2.35-2.40,T=2.35-2.40
33326PLATE, BEARING LOCK
33331GEAR, REVERSE
33332GEAR, 2ND
33333GEAR, 3RD
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33334CRING, SHAFT SNAP (FOR 4TH GEAR THRUST FRONT NEEDLE BEARING)
33334FBEARING, THRUST NEEDLE ROLLER (FOR 4TH GEAR FRONT)
33334RBEARING, THRUST NEEDLE ROLLER (FOR 4TH GEAR REAR)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33339GEAR, IDLER
33339ARING, SHAFT SNAP (FOR IDLER GEAR)
T=2.40-2.45,T=2.40-2.45
T=2.45-2.50,T=2.55-2.60
33339BRING, SHAFT SNAP (FOR IDLER GEAR FRONT BEARING)
33339FBEARING, RADIAL BALL (FOR IDLER GEAR FRONT)
33339RBEARING, NEEDLE ROLLER (FOR IDLER GEAR REAR)
33345BUSH, 1ST GEAR
33345ABALL (FOR 1ST GEAR BUSH)
33345BRING, SHAFT SNAP (FOR 1ST GEAR BUSH)
T=2.15-2.20,T=2.15-2.20
T=2.20-2.25,T=2.20-2.25
T=2.25-2.30,T=2.25-2.30
T=2.30-2.35,T=2.30-2.35
T=2.35-2.40,T=2.35-2.40
T=2.40-2.45,T=2.40-2.45
T=2.45-2.50,T=2.45-2.50
T=2.50-2.55,T=2.50-2.55
T=2.55-2.60,T=2.55-2.60
33354FSPACER (FOR 4TH GEAR FRONT THRUST BEARING)
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33362BSPRING, COMPRESSION (FOR CLUTCH HUB NO.2 SETTING)
33363SLEEVE, TRANSMISSION HUB, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33399YOKE, TRANSMISSION SLEEVE (MTM)
33402GEAR SUB-ASSY, REVERSE IDLER
33415PLATE, COUNTER GEAR
33421GEAR, COUNTER
33421FBEARING, NEEDLE ROLLER(FOR COUNTER GEAR FRONT)
33421GBEARING, RADIAL BALL(FOR COUNTER GEAR REAR)
33421HRING, SHAFT SNAP(FOR COUNTER GEAR REAR BEARING)
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
T=1.80-1.85,T=1.80-1.85
T=1.95-2.00,T=1.95-2.00
33451SHAFT, REVERSE IDLER GEAR
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.60-1.65
9011908194
main90119-08194
9161140816
main91611-40816
57 parts on this diagram · 2 diagrams in section
