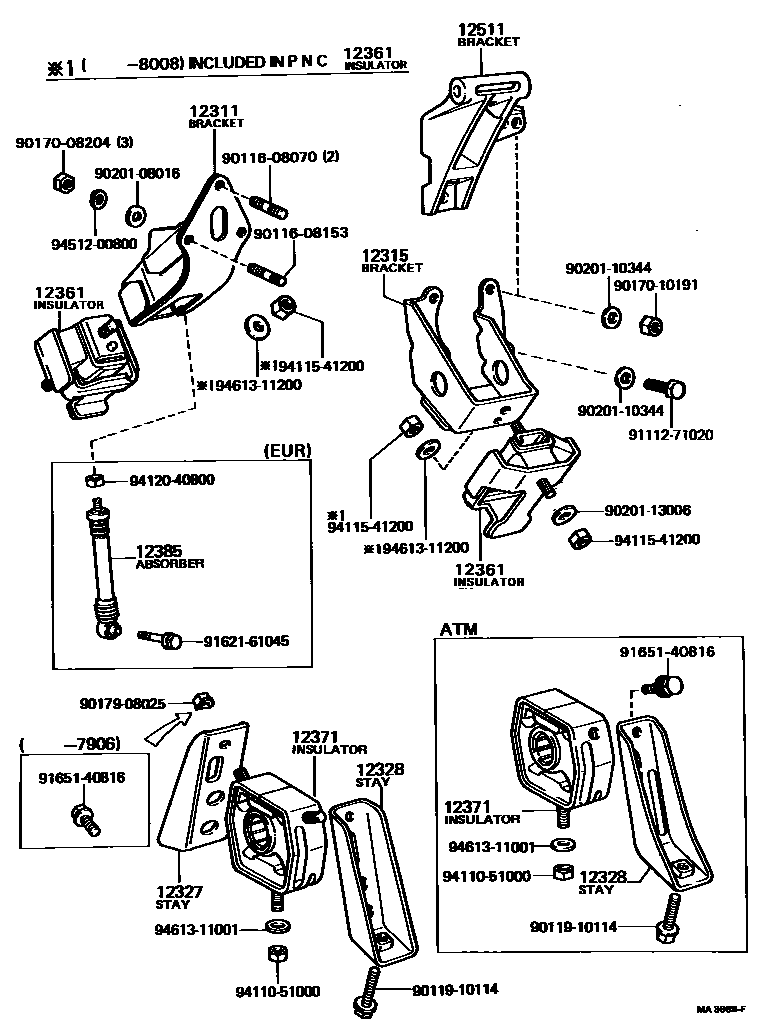

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-15010i2A..AL11197901-198008

main12311-15011i2A..AL11198008-198204

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-15010i2A..AL11197901-198204

12327STAY, ENGINE MOUNTING, REAR RH

main12327-15010i2A..AL11..MTM197901-198204

12328STAY, ENGINE MOUNTING, REAR LH

main12328-15010i2A..AL11..MTM197901-198204

main12328-15020i2A..AL11..3FC197908-198204

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-15011i2A..AL11198008-198204

sub12361-15050

main12361-19045i2A..AL11197901-198008

sub12361-15011

sub94115-41200

sub94613-11200

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-15011i2A..AL11197901-197906

sub12371-15022

sub90179-08025

main12371-15022i2A..AL11..MTM197906-198204

main12371-15031i2A..AL11..3FC197908-198204

12385ABSORBER, ENGINE MOUNTING, NO.1

main12385-15010i2A..AL11..EUR197901-198008

main12385-15030i2A..AL11..EUR198008-198204

12511BRACKET, ALTERNATOR, NO.1

main12511-14011i2A..AL11..STD..EUR197901-198108

12V 30A ALTERNATOR

main12511-15011i2A..AL11197901-198108

12V 40A & 50A ALTERNATOR

main12511-15011i2A..AL11198108-198204

9011608070

main90116-08070

9011608153

main90116-08153

9011910114

main90119-10114

9017008204

main90170-08204

9017010191

main90170-10191

9017908025

main90179-08025

9020108016

main90201-08016

9020110344

main90201-10344

9020113006

main90201-13006

9111271020

main91112-71020

9162161045

main91621-61045

9165140816

main91651-40816

9411051000

main94110-51000

9411541200

main94115-41200

9412040800

main94120-40800

9451200800

main94512-00800

9461311001

main94613-11001

9461311200

main94613-11200

26 parts on this diagram · 1 diagram in section
