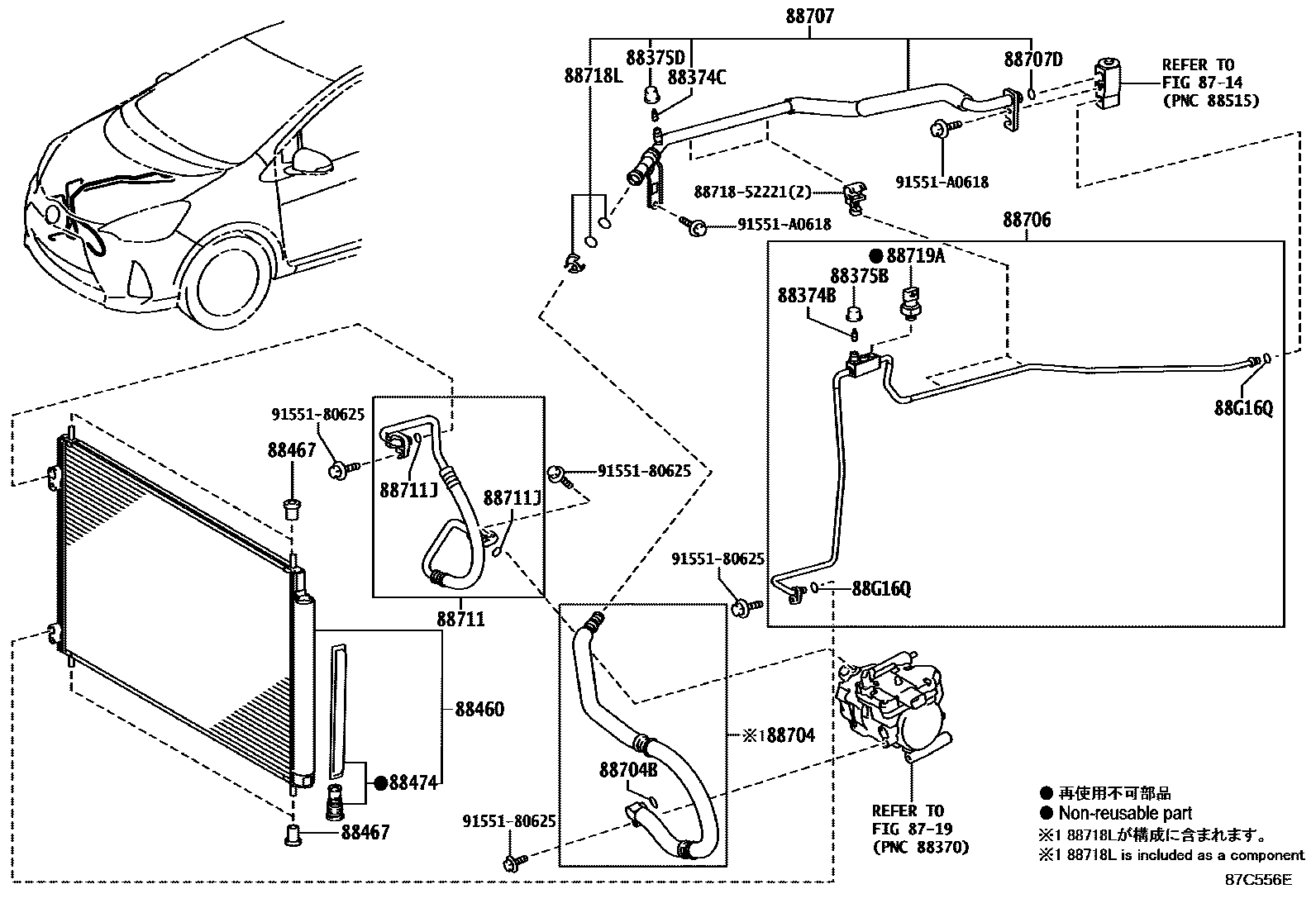

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iNHP10201112-201412

88374CVALVE, SERVICE, NO.2

main88374-30010iNHP10201112-201412

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iNHP10201112-201412

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iNHP10201112-201412

88460CONDENSER ASSY, COOLER

main88460-52170iNHP10201112-201412

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iNHP10201412-201706

88474DRYER, COOLER

main88474-47030iNHP10201112-201412

88704HOSE SUB-ASSY, SUCTION

main88704-52260iNHP10201112-201412

sub88704-52261

main88704-52410iNHP10202001

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iNHP10201112-201412

ID=13.4,OD=18.2

88706PIPE SUB-ASSY, LIQUID

main88706-52600iNHP10201112-201412

main88706-52650iNHP10201412-201706

88707PIPE SUB-ASSY, SUCTION

main88707-52340iNHP10201112-201412

main88707-52390iNHP10201807

88707DRING, O(FOR SUCTION TUBE)

main90099-14121iNHP10201112-201412

ID=13.4,OD=18.2

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52420iNHP10201112-201412

88711JRING, O, NO.1(FOR DISCHARGE HOSE)

main90099-14120×2iNHP10201112-201412

ID=10.8,OD=15.6

88718LCLAMP, PIPING

main88718-52280iNHP10201112-201412

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNHP10201112-201412

88G16QRING, O, NO.1(FOR LIQUID TUBE)

main90099-14119×2iNHP10201112-201412

ID=6.7,OD=10.3

8871852221PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52221

9155180625

main91551-80625

91551A0618

main91551-A0618

22 parts on this diagram · 1 diagram in section
