HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1HEATER CONTROL 0003 1HEATER CONTROL 0004 1HEATER CONTROL 0005 1HEATER CONTROL 0006 1HEATER CONTROL 0007 1AIR DUCT 0008 1AIR DUCT 0009 1SENSOR 0010 1SENSOR

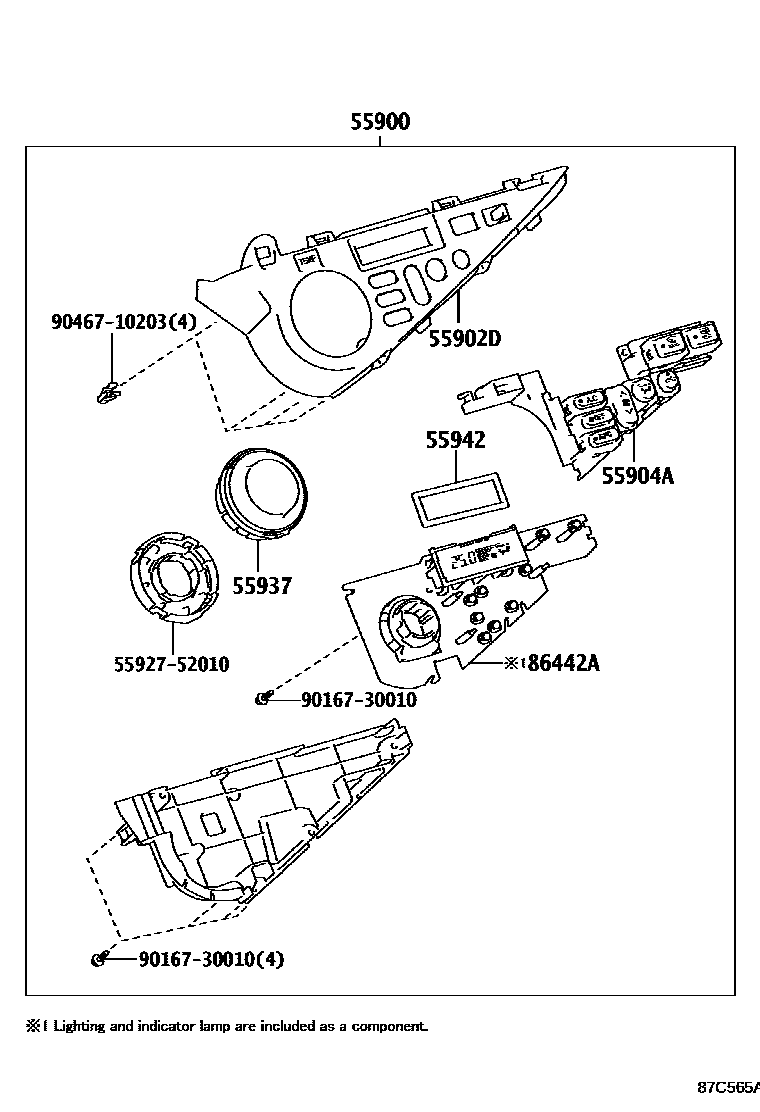

55900CONTROL ASSY, AIR CONDITIONER

main55900-52720iNHP10..RHD201112-201412

main55900-52740iNHP10..LHD201112-201412

main55900-52800iNHP10..RHD201706

main55900-52810iNHP10..LHD201706

main55900-52A00supersedes 55900-52A10iNHP10..RHD201412-201511

AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER

main55900-52A20supersedes 55900-52A30iNHP10..LHD201412-201511

AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER

main55900-52A50supersedes 55900-52A60iNHP10..RHD201511-201706

AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER

main55900-52A70supersedes 55900-52A80iNHP10..LHD201511-201706

AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER

55902DPANEL SUB-ASSY, AIR CONDITIONER

main55902-52290supersedes 55902-52300iNHP10..RHD201412-201706

AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER

main55902-52310supersedes 55902-52330iNHP10..LHD201412-201706

AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-52020iNHP10..RHD201412-201511

main55904-52030iNHP10..LHD201412-201511

main55904-52040iNHP10..RHD201112-201406

main55904-52041iNHP10..RHD201407-201412

main55904-52050iNHP10..LHD201112-201406

main55904-52051iNHP10..LHD201407-201412

main55904-52070iNHP10..RHD201511-201706

main55904-52080iNHP10..LHD201511-201706

55937KNOB, HEATER CONTROL LEVER

main55925-52010iNHP10201112-201412

main55925-52030iNHP10201412-201706

55942GUARD, HEATER CONTROL

main55942-52010iNHP10201412-201706

main55942-52030iNHP10201706

86442ABOARD, HEATER CONTROL SWITCH

main86442-52020iNHP10..RHD201112-201412

main86442-52030iNHP10..LHD201112-201412

main86442-52050iNHP10..RHD201412-201706

main86442-52060iNHP10..LHD201412-201706

main86442-52080iNHP10..RHD201706

main86442-52090iNHP10..LHD201706

5592752010

main55927-52010

9016730010

main90167-30010

9046710203

main90467-10203

9 parts on this diagram · 10 diagrams in section
