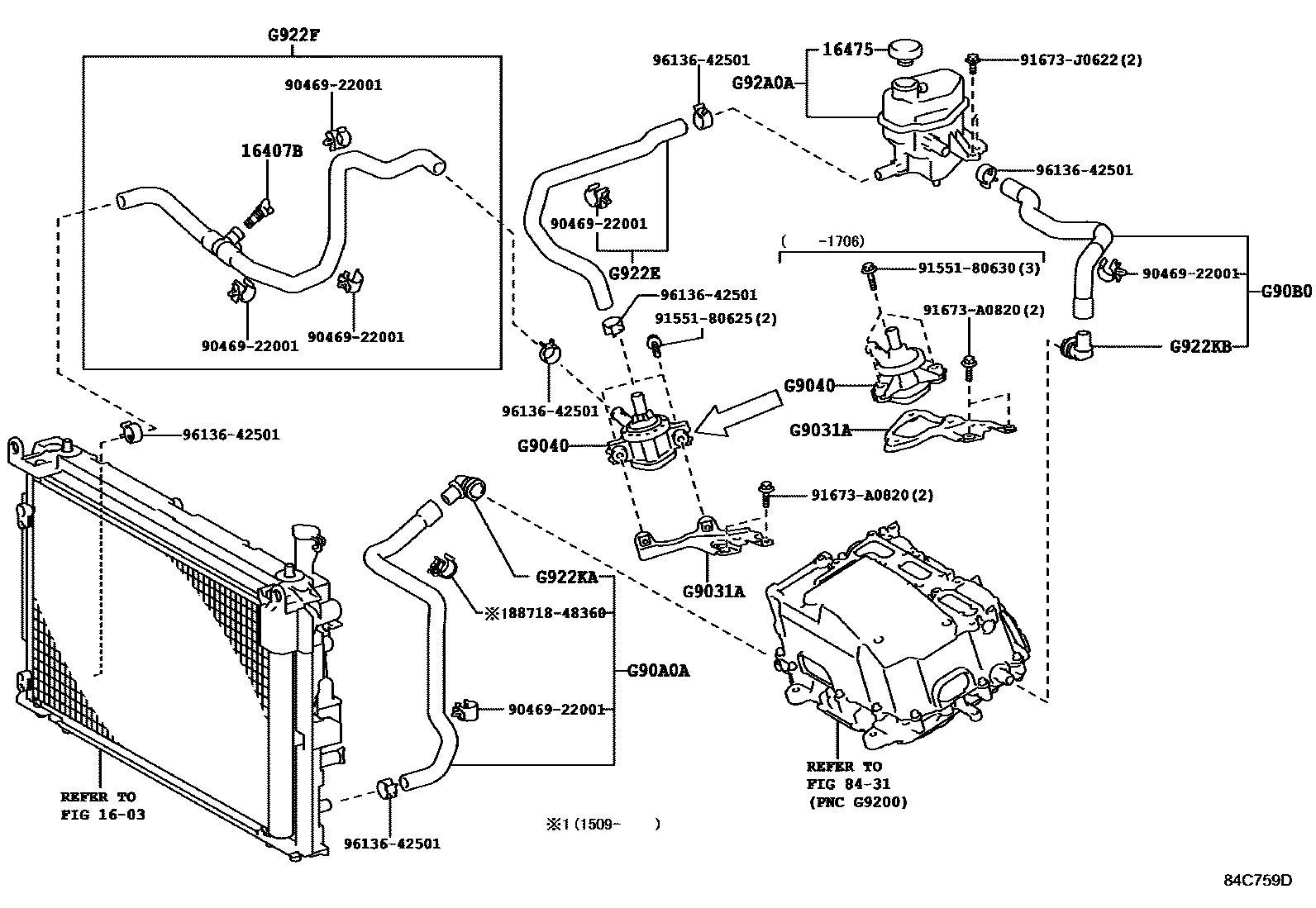

INVERTER COOLING

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i1NZFXE..NHP10201112-201706

16475CAP, RESERVE TANK

main16475-28140i1NZFXE..NHP10201610-201706

main16475-51010i1NZFXE..NHP10201112-201409

sub16475-28140

main16475-51011i1NZFXE..NHP10201410-201609

sub16475-28140

8431

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914152010iNHP10201112-201211

subG9141-52011

mainG914152011iNHP10201212-201706

mainG914152020iNHP10201706

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052010iNHP10201112-201706

mainG904052020iNHP10201706

G90A0AHOSE ASSY, INVERTER COOLING, NO.1

mainG90A052010iNHP10201112-201509

mainG90A052040iNHP10201509-201706

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B052010iNHP10201112-201706

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E52010iNHP10201112-201706

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F52010iNHP10201112-201706

G922KACONNECTOR, HYBRID WATER HOSE, NO.1

mainG922K33030iNHP10201112-201706

G922KBCONNECTOR, HYBRID WATER HOSE, NO.2

mainG922K52010iNHP10201112-201706

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A052010iNHP10201112-201409

subG92A0-52011

mainG92A052011iNHP10201410-201706

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

9046922001

main90469-22001

9155180625

main91551-80625

9155180630

main91551-80630

91673A0820

main91673-A0820

91673J0622

main91673-J0622

9613642501

main96136-42501

20 parts on this diagram · 1 diagram in section
