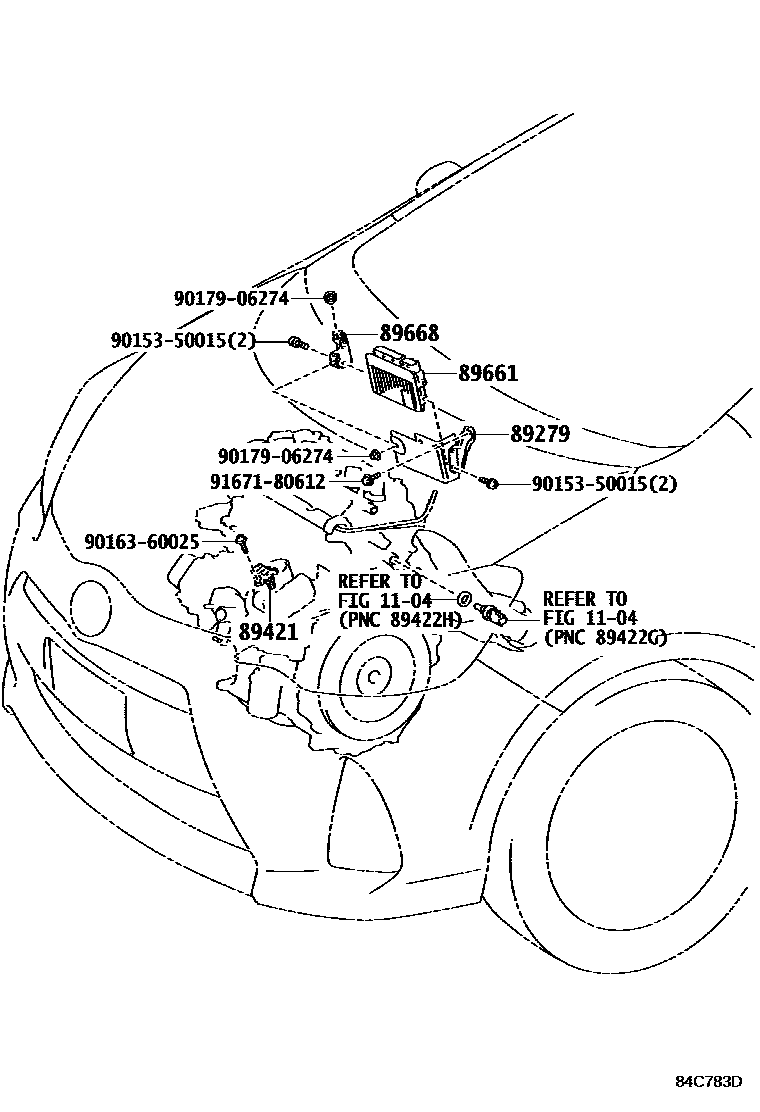

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

1104

89279COVER, ENGINE CONTROL COMPUTER

main89279-52080iNHP10..LHD201112-201706

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iNHP10201112-201706

89661COMPUTER, ENGINE CONTROL

main89661-52V10iNHP10201112-201405

P/N LABEL=8966152V10

main89661-52V11iNHP10201404-201408

P/N LABEL=8966152V11

main89661-52V11iNHP10201408-201511

main89661-5C780iNHP10201511-201706

main89661-5C860iNHP10..LHD201706

DENSO,SINGAPORE SPEC

main89661-5C860iNHP10..ARL201706

DENSO

main89661-5C860iNHP10..ARL201706

DENSO,TAIWAN SPEC

main89661-5C870iNHP10..GEN201706

DENSO

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52350iNHP10..RHD201112-201706

main89668-52380iNHP10..LHD201112-201706

9015350015

main90153-50015

9016360025

main90163-60025

9017906274

main90179-06274

9167180612

main91671-80612

9 parts on this diagram · 2 diagrams in section
