WIRING & CLAMP

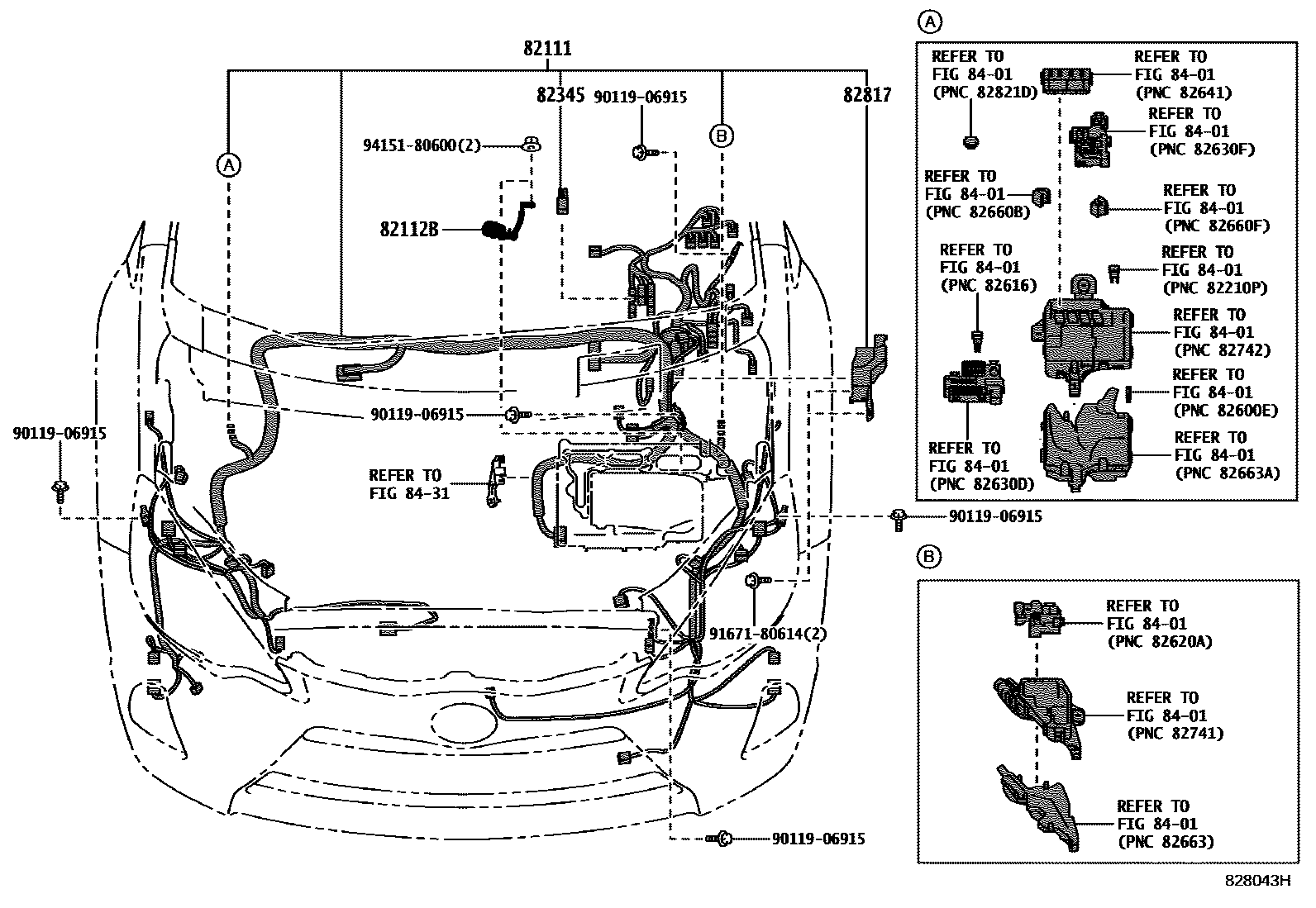

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-5CN01i201112-201301

main82111-5CN02i201301-201312

main82111-5CN03i201312-201412

main82111-5CN04i201412-201511

main82111-5CN05i201511-201706

main82111-5CN06i201706-201907

main82111-5CN07i201907-202008

main82111-5CN08i202008

main82111-5CQ02i201112-201301

main82111-5CQ03i201301-201312

main82111-5CQ04i201312-201412

main82111-5CQ05i201412-201511

main82111-5CQ06i201511-201706

main82111-5CQ07i201706-201907

main82111-5CQ08i201907-202008

main82111-5CQ09i202008

main82111-5CR60i201112-201301

HEADLAMP-LED

main82111-5CR60i201112-201301

AUSTRALIA SPEC&HEADLAMP-LED

main82111-5CR60i201112-201301

NEW ZEALAND SPEC&HEADLAMP-LED

main82111-5CR61i201301-201312

NEW ZEALAND SPEC&HEADLAMP-LED

main82111-5CR61i201301-201312

AUSTRALIA SPEC&HEADLAMP-LED

main82111-5CR61i201301-201312

HEADLAMP-LED

main82111-5CR62i201312-201412

HEADLAMP-LED

main82111-5CR62i201312-201412

AUSTRALIA SPEC&HEADLAMP-LED

main82111-5CR62i201312-201412

NEW ZEALAND SPEC&HEADLAMP-LED

main82111-5CR63i201412-201511

NEW ZEALAND SPEC&HEADLAMP-LED

main82111-5CR63i201412-201511

AUSTRALIA SPEC&HEADLAMP-LED

main82111-5CR63i201412-201511

HEADLAMP-LED

main82111-5CR64i201511-201706

NEW ZEALAND SPEC&HEADLAMP-LED

main82111-5CR64i201511-201706

HEADLAMP-LED

main82111-5CR64i201511-201706

AUSTRALIA SPEC&HEADLAMP-LED

main82111-5CR65i201706-201907

HEADLAMP-LED

main82111-5CR65i201706-201907

AUSTRALIA SPEC&HEADLAMP-LED

main82111-5CR65i201706-201907

NEW ZEALAND SPEC&HEADLAMP-LED

main82111-5CR66i201907-202008

NEW ZEALAND SPEC&HEADLAMP-LED

main82111-5CR66i201907-202008

AUSTRALIA SPEC&HEADLAMP-LED

main82111-5CR66i201907-202008

HEADLAMP-LED

main82111-5CR67i202008

AUSTRALIA SPEC&HEADLAMP-LED

main82111-5CR67i202008

NEW ZEALAND SPEC&HEADLAMP-LED

main82111-5CR67i202008

HEADLAMP-LED

main82111-5CV20i201112-201301

TAIWAN SPEC

main82111-5CV21i201301-201312

TAIWAN SPEC

main82111-5CV22i201312-201412

TAIWAN SPEC

main82111-5DJ40i201511-201706

TAIWAN SPEC

main82111-5DJ41i201706-201907

ECUADOR SPEC

main82111-5DJ41i201706-201907

TAIWAN SPEC

main82111-5DJ42i201907-202008

ECUADOR SPEC

main82111-5DJ42i201907-202008

TAIWAN SPEC

main82111-5DJ43i202008

TAIWAN SPEC

main82111-5DJ43i202008

ECUADOR SPEC

82112BWIRE, ENGINE ROOM, NO.2

main82112-52530i201112-201706

82345DIODE

main82345-12050i201412-201706

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-52D20i201112-201706

8401

8431

9011906915

main90119-06915

9167180614

main91671-80614

9415180600

main94151-80600

9 parts on this diagram · 11 diagrams in section
