REAR COMBINATION LAMP

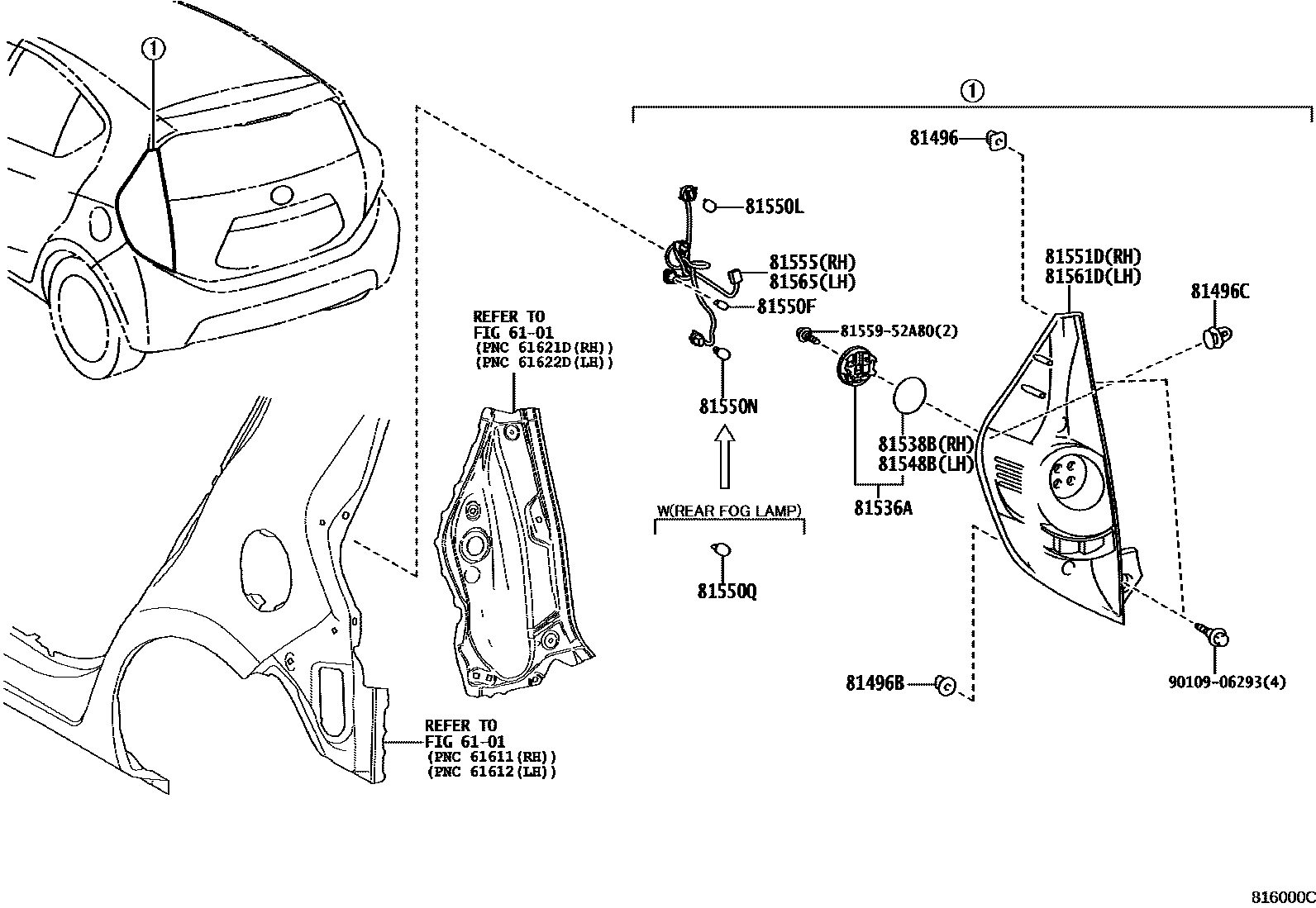

Parts diagram
6101
81496GUIDE, REAR COMBINATION LAMP
main76817-26040i201112-201706
81496BGUIDE, REAR LAMP
main81496-52030i201112-201706
81496CGUIDE, REAR COMBINATION LAMP, NO.2
main81496-60010i201112-201706
81536ALED, REAR COMBINATION LAMP
main81536-52A80i201112-201412
main81536-52D50i201706
81538BGASKET, REAR COMBINATION LAMP, NO.3 RH
main81538-52A80i201112-201412
81548BGASKET, REAR COMBINATION LAMP, NO.3 LH
main81538-52A80i201112-201412
81550FBULB, TAILLAMP
main99132-12050i201112-201412
81550LBULB, REAR TURN SIGNAL LAMP
main90981-15011i201112-201706
12V 21W,AMBER
81550NBULB, BACK UP LAMP
main90981-11059i201112-201706
12V 16W,TAIWAN SPEC&REAR FOG LAMP-WITH
main90981-11059i201112-201706
12V 16W
main90981-11059i201706
12V 16W,ECUADOR SPEC&REAR FOG LAMP-WITH
81550QBULB, REAR FOG LAMP, NO.1
main90981-13043i201112-201412
TAIWAN SPEC&REAR FOG LAMP-WITH
81551DLENS & BODY, REAR COMBINATION LAMP, RH
main81551-52A80i201112-201302
sub81551-52A81
main81551-52A81i201302-201304
sub81551-52A82
main81551-52A82i201304-201306
sub81551-52A83
main81551-52A83i201306-201404
sub81551-52A84
main81551-52A84i201404-201412
sub81551-52A85
main81551-52D00i201412-201607
sub81551-52D01
main81551-52D01i201607-201706
main81551-52D50i201706-201808
sub81551-52E90
main81551-52E70i201907
main81551-52E90i201808-201907
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
main81555-52A80i201112-201304
main81555-52A81i201304-201412
main81555-52D00i201412-201607
main81555-52D01i201607-201706
main81555-52D50i201706
81561DLENS & BODY, REAR COMBINATION LAMP, LH
main81561-52690i201112-201302
sub81561-52691
main81561-52691i201302-201304
sub81561-52692
main81561-52692i201304-201306
sub81561-52693
main81561-52693i201306-201404
sub81561-52694
main81561-52694i201404-201412
sub81561-52695
main81561-52880i201112-201302
TAIWAN SPEC&REAR FOG LAMP-WITH
sub81561-52881
main81561-52881i201302-201304
TAIWAN SPEC&REAR FOG LAMP-WITH
sub81561-52882
main81561-52882i201304-201306
TAIWAN SPEC&REAR FOG LAMP-WITH
sub81561-52883
main81561-52883i201306-201404
TAIWAN SPEC&REAR FOG LAMP-WITH
sub81561-52884
main81561-52884i201404-201412
TAIWAN SPEC&REAR FOG LAMP-WITH
sub81561-52885
main81561-52D00i201412-201607
sub81561-52D01
main81561-52D01i201607-201706
main81561-52D20i201412-201607
TAIWAN SPEC&REAR FOG LAMP-WITH
sub81561-52D21
main81561-52D21i201607-201706
TAIWAN SPEC&REAR FOG LAMP-WITH
main81561-52D50i201706-201808
sub81561-52E90
main81561-52D70i201706-201808
ECUADOR SPEC&REAR FOG LAMP-WITH
sub81561-52F00
main81561-52D70i201706-201808
TAIWAN SPEC&REAR FOG LAMP-WITH
sub81561-52F00
main81561-52E70i201907
main81561-52E80i201907
TAIWAN SPEC&REAR FOG LAMP-WITH
main81561-52E80i201907
ECUADOR SPEC&REAR FOG LAMP-WITH
main81561-52E90i201808-201907
main81561-52F00i201808-201907
TAIWAN SPEC&REAR FOG LAMP-WITH
main81561-52F00i201808-201907
ECUADOR SPEC&REAR FOG LAMP-WITH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
main81555-52A80i201112-201304
main81555-52A81i201304-201412
main81555-52D00i201412-201607
main81555-52D01i201607-201706
main81555-52D50i201706
main81555-52D70i201706
ECUADOR SPEC&REAR FOG LAMP-WITH
main81555-52D70i201706
TAIWAN SPEC&REAR FOG LAMP-WITH
main81565-52880i201112-201304
TAIWAN SPEC&REAR FOG LAMP-WITH
main81565-52881i201304-201412
TAIWAN SPEC&REAR FOG LAMP-WITH
main81565-52D20i201412-201607
TAIWAN SPEC&REAR FOG LAMP-WITH
main81565-52D21i201607-201706
TAIWAN SPEC&REAR FOG LAMP-WITH
8155952A80MOULDING, REAR COMBINATION LAMP, RH
main81559-52A80
9010906293
main90109-06293

17 parts on this diagram · 3 diagrams in section
