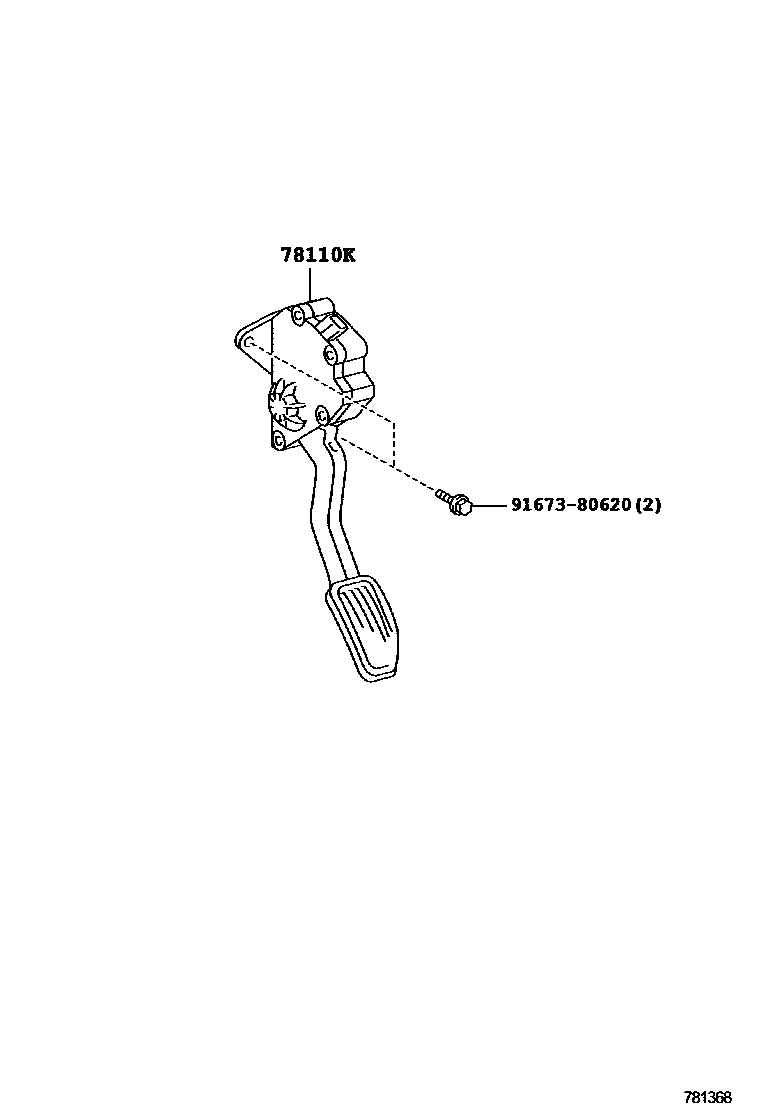

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-52033iNHP10..RHD201112-201212

sub78110-52100

main78110-52053iNHP10..LHD201112-201601

sub78110-52200

main78110-52100iNHP10..RHD201301-201601

sub78110-52210

main78110-52200iNHP10..LHD201602-201706

main78110-52210iNHP10..RHD201602-201706

9167380620

main91673-80620

2 parts on this diagram · 2 diagrams in section
