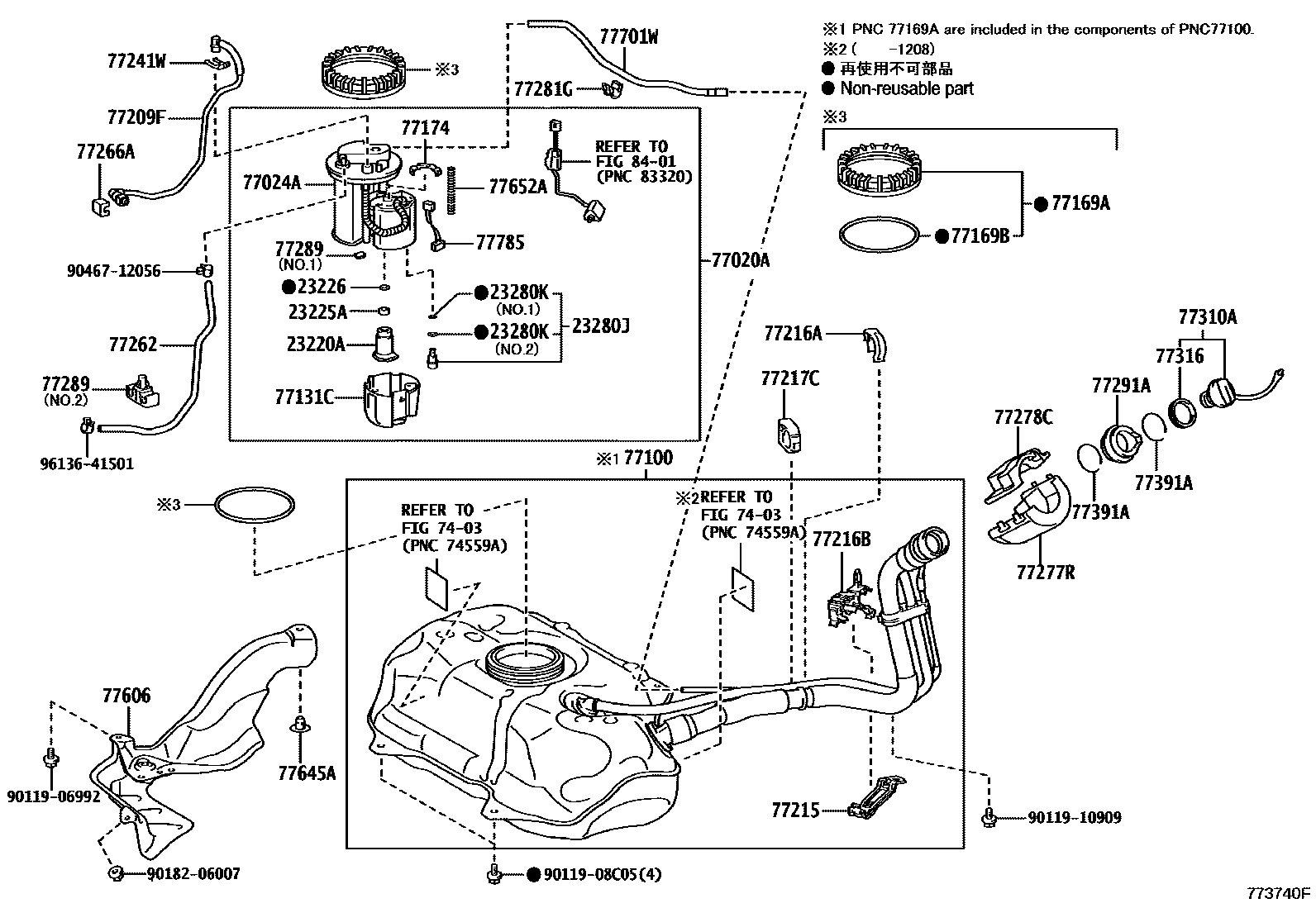

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
7403
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77131CSUB-TANK, FUEL, NO.1
77169AGASKET, FUEL SUCTION TUBE SET
77169BGASKET, FUEL SUCTION TUBE SET, NO.1
77174SUPPORT, FUEL SUCTION, NO.1
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77215PLATE, FUEL TANK FILLER PIPE FLANGE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77241WCLIP, TUBE JOINT
77262TUBE, FUEL EMISSION, NO.2
77266APROTECTOR, FUEL TUBE, NO.1
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77281GCLAMP, FUEL HOSE
77289HOLDER, FUEL TANK PIPE SETTING
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77645ARETAINER, FUEL TANK PROTECTOR
77652ACUSHION, FUEL TANK, NO.2
77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1
77785HARNESS, FUEL PUMP
8401
9011906992
9011908C05
9011910909
9018206007
9046712056
9613641501
41 parts on this diagram · 5 diagrams in section
